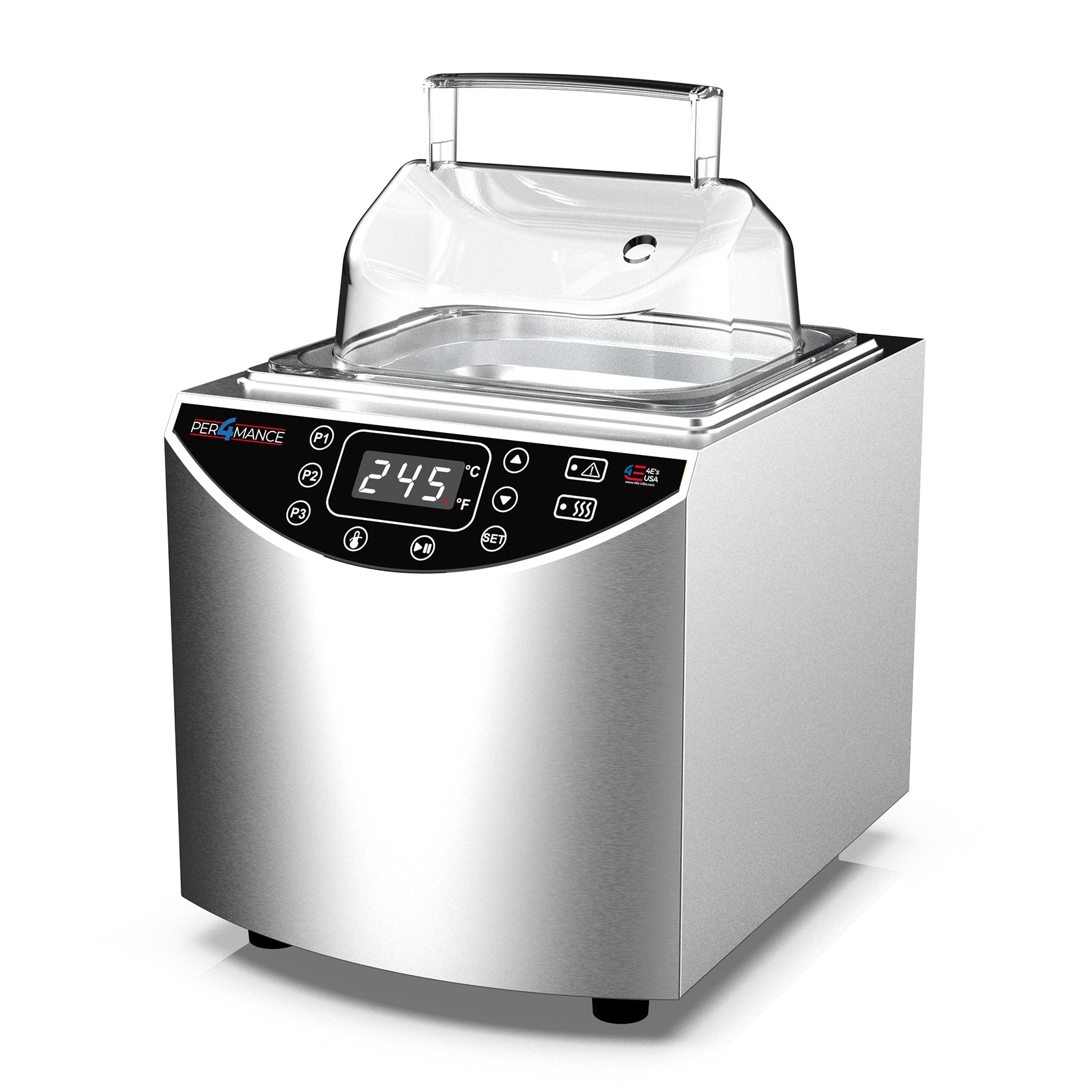

2L Water Bath - WB101
● Precise temperature control with an accuracy of ±0.3°C.
● Storing up to 3 program modes.

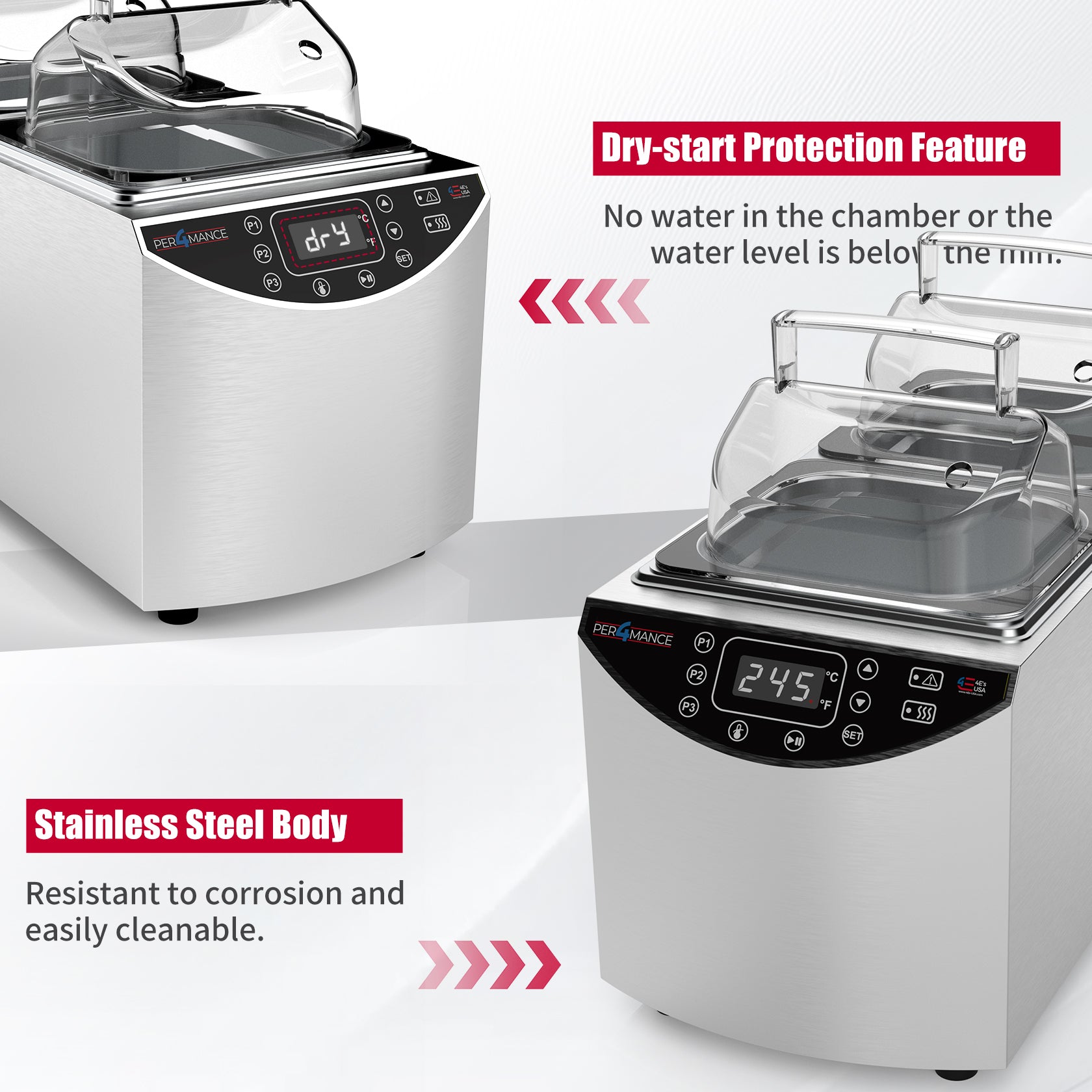

● Dry-start protection feature to improve safety.
● Durable, stainless-steel chamber.
● Easy to switch the temperature measurement unit between Fahrenheit (°F) and Celsius (°C).
● Timed operation of 0-99H, 59min.
● Transparent lid for easy observation.
Programmable, Modern, Water Baths for Accurate Temperature Control of Samples, Solutions, and Saccharomyces
Water is the best method to transfer heat to a sample due to its ability to conform to the container and its thermal properties. Four E’s water baths have a modern design and performance that take laboratory water baths to the next level. The basin is manufactured of high-grade stainless steel that resists corrosion and is easily cleaned. The glass touch panel allows for temperature and timer controls with three configurable program buttons for quick launching of temperature setpoints
Bright, Easily Readable, Modern Display
Glass Touch Panel with 3 Program Buttons
|Reservoir Capacity||2 Liter||5 Liter||13 Liter||24 Liter|
|Heating Temperature Range||RT +5°C to 99.9°C||RT +5°C to 99.9°C||RT +5°C to 99.9°C||RT +5°C to 99.9°C|
|Over Temperature Cut-off||Yes||Yes||Yes||Yes|
|Temperature Stability||± 0.5°C||± 0.5°C||± 0.3°C||± 0.3°C|
|Temperature Display Accuracy||0.1°C||0.1°C||0.1°C||0.1°C|
|Chamber Dimensions (L x W x D)||150 x 138 x 150mm||300 x 150 x 150mm||500 x 300 x 200mm||500 x 300 x 200mm|
|Time Setting Range||1-999min||1-999min||0~999min||1~999min|
|Dimensions (L x W x D)||252 x 188 x 285mm||394 x 188 x 285mm||347.5 x 349 x 426.5mm||560 x 414 x 426mm|
|Weight||3 kg||4.5 kg||7.3 kg||14.5 kg|
|Input||200-240VAC, 50/60HZ100-120VAC, 50/60HZ||200-240VAC, 50/60HZ100-120VAC, 50/60HZ||200-240VAC, 50/60HZ100-120VAC, 50/60HZ||200-240VAC ,50/60HZ100-120VAC , 50/60HZ|
|Power||200 W||450 W||1000 W||1450 W|
Easy to read LED display
Adjustable temperature range
Precise temperature control
User-friendly glass panel touch interface
Dry-start protection feature for improved safety
Over-temperature cut-off & alarm to protect samples from over heating
Programmable modes can store up to 3 programs
Durable stainless-steel chamber
Timed operation capable
Easy to switch temperature unit between fahrenheit (°F) and celcius (°C)
Water Baths Datasheet

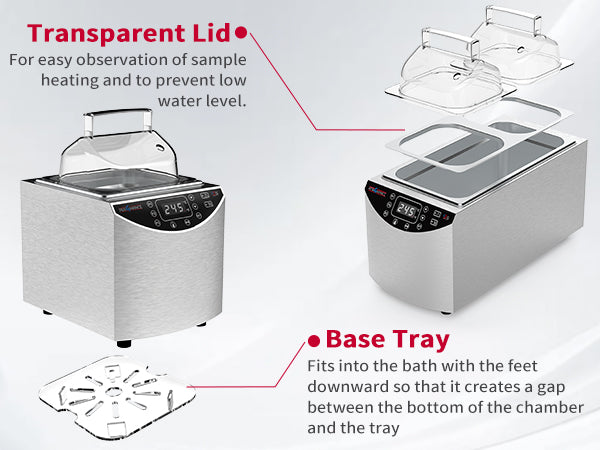

Four E’s takes water baths seriously. Each water bath includes a see through lid and a base tray. The lid has a port for a temperature probe and the base tray positions the samples in the ideal position. Water baths are heated from the bottom and the sides. When the sample is in contact with a heating surface, temperature will not be as accurate and uniform. The base tray keeps the sample from contacting the heating surface. Most water bath suppliers don’t include these items, but we go the extra step to ensure our units outperform
Calibration is Key
Have you ever tried to calibrate a water bath? It should be easy, but many suppliers have hidden menus and difficult to follow instructions to calibrate their equipment. The Four E’s water baths have simple menus for a two-point temperature calibration. The easy-to-use glass-touch interface walks the user through a low point calibration and a high point calibration. We recommend that the water baths be calibrated annually or as needed based on your labs protocol
4E’S Vs Other Brands
Bright OLED Type Display
Base Plate and Lid Included
Two Point Simple Calibration
Programmable Set Points
Switch Quickly Between ⁰C and ⁰F
Affordable Price Point
Dry Start Protection
Over-temp Alarm and Safeties
5 Liter Dual Lid Design
Frequently Asked Questions
Everything you need to know about product and billing. Can’t find the answer you are looking for? Please write your question to us at info@4Es-USA.com
Can just the low or the high temperature calibration setpoint be calibrated?
Yes, each calibration point can be calibrated independently. From the “Set” menu scroll to “LCP” for Low Calibration Point or “HCP” High Calibration Point to select the Calibration Point of the water bath
Is there a warranty on the unit?
Four E’s water baths come with a two-year warranty
Is there a drain on the water baths?
The 2 Liter and the 5 Liter water baths are small enough to be emptied manually. All water baths 13 Liters or larger are supplied with a drain port and a drain tube for easy drainage.
What are the materials of construction of the basin?
The basin is constructed of high-grade stainless steel to protect from corrosion.
What is the lowest operating temperature of the water bath?
All water baths can maintain a low temperature of plus 5⁰C ambient temperature.
Does the unit have a heating indicator?
Yes, the unit has an LED light indicator when the unit is heating.
Does the unit have alarm codes?
Yes, the unit has alarm codes such as “DRY” (Dry Start Alarm) for easy diagnosis.
How do you configure the three program buttons?
To configure a program button, press the one of the three program buttons. Use the up down arrows to scroll to the correct temperature setpoint. Press the program button again to set the program temperature value.
