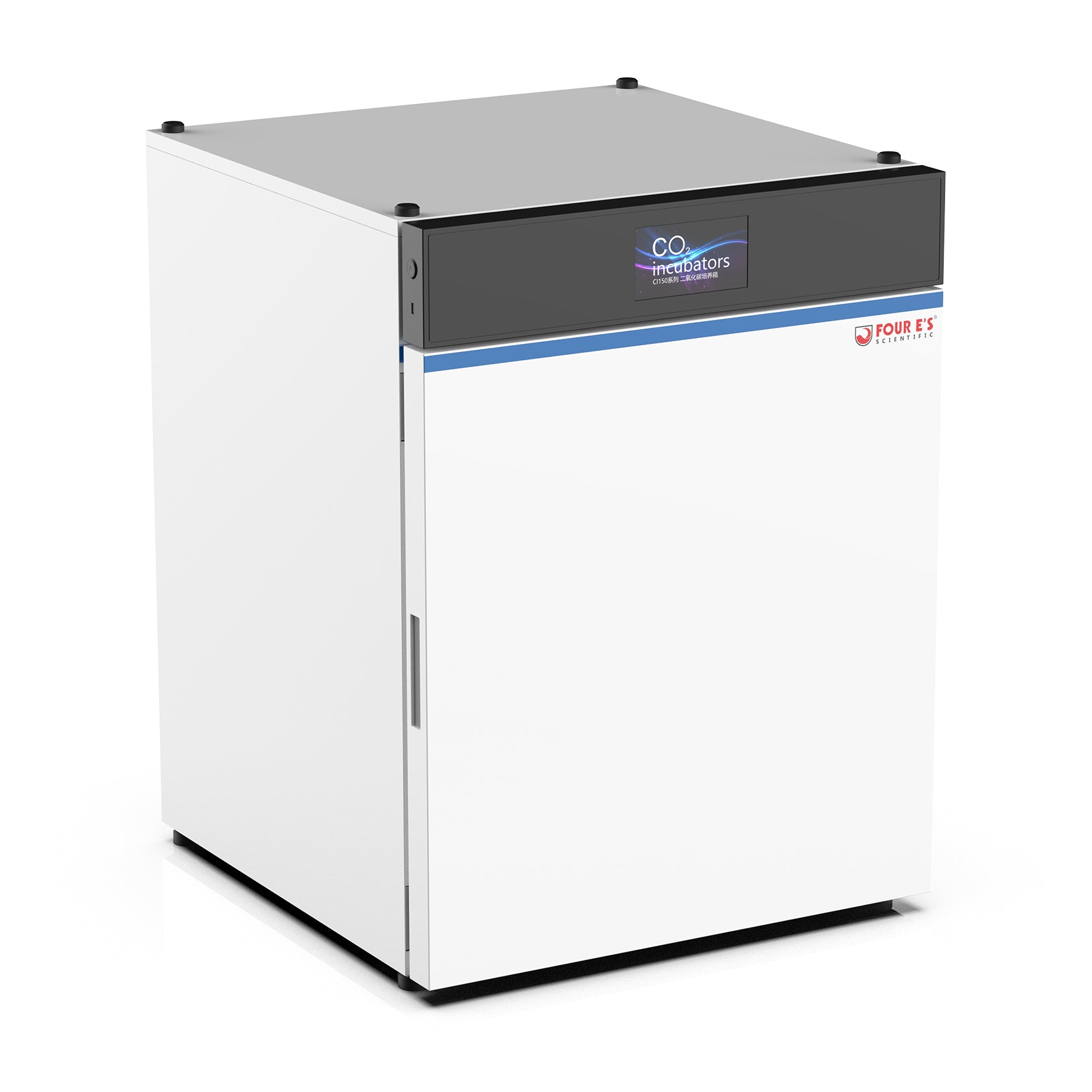

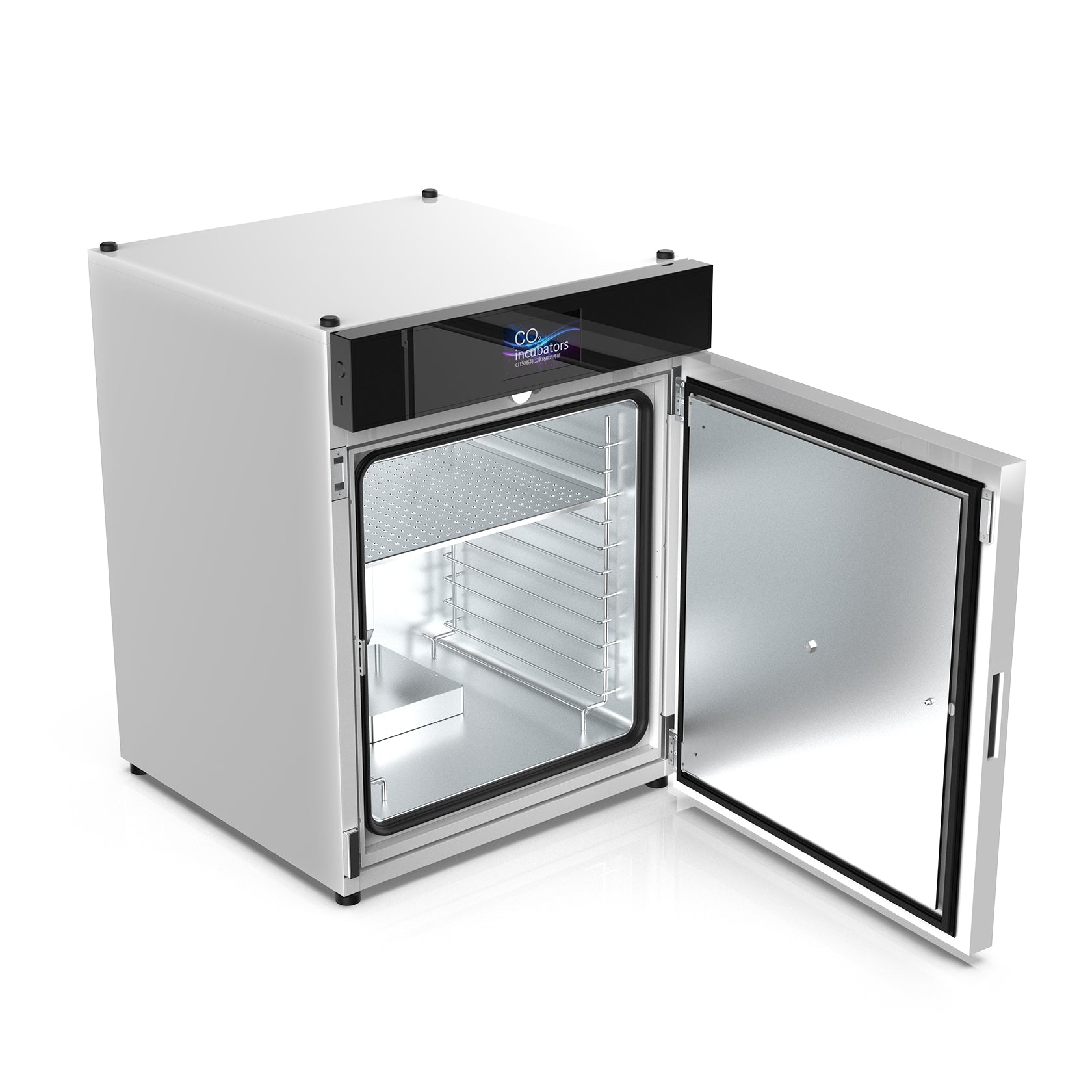

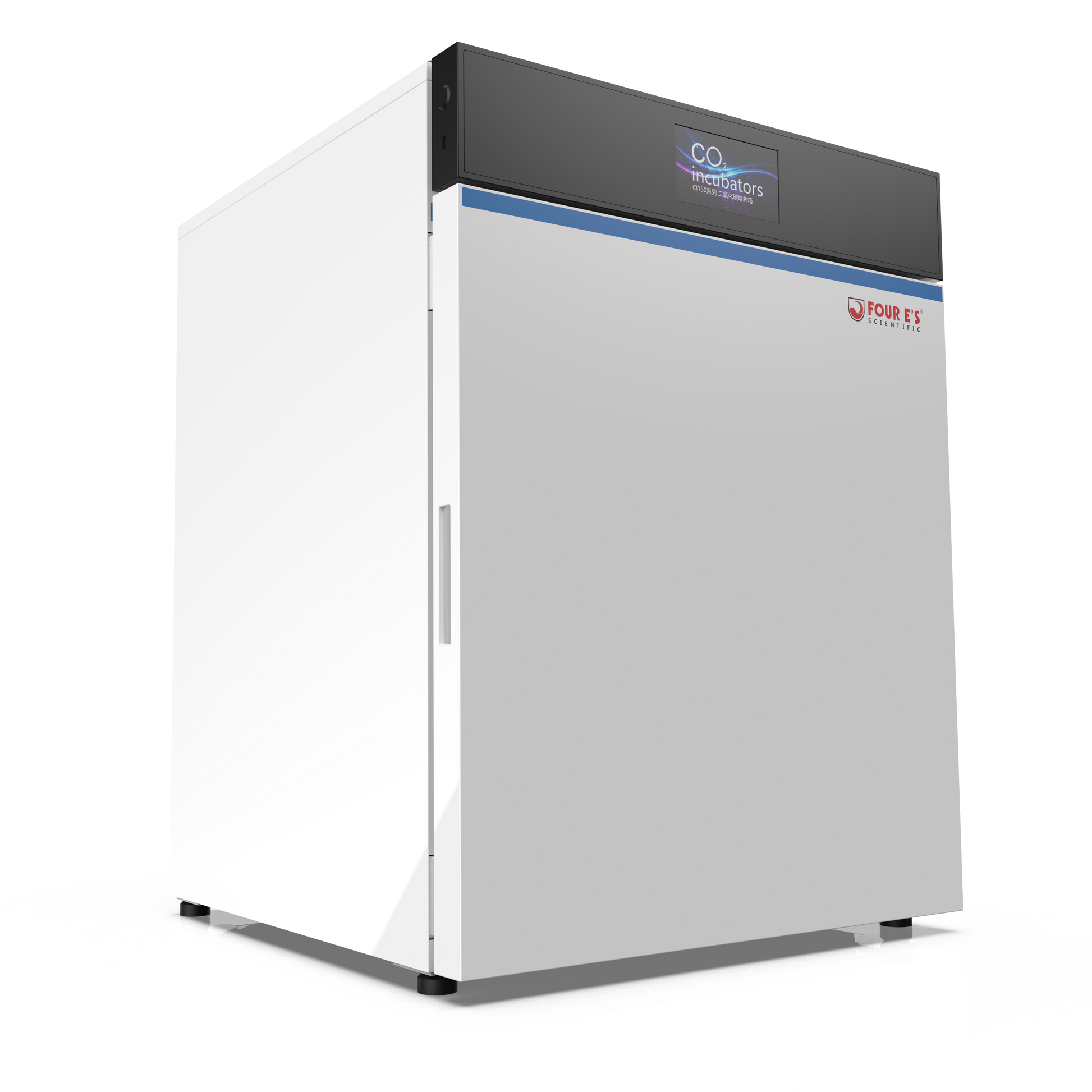

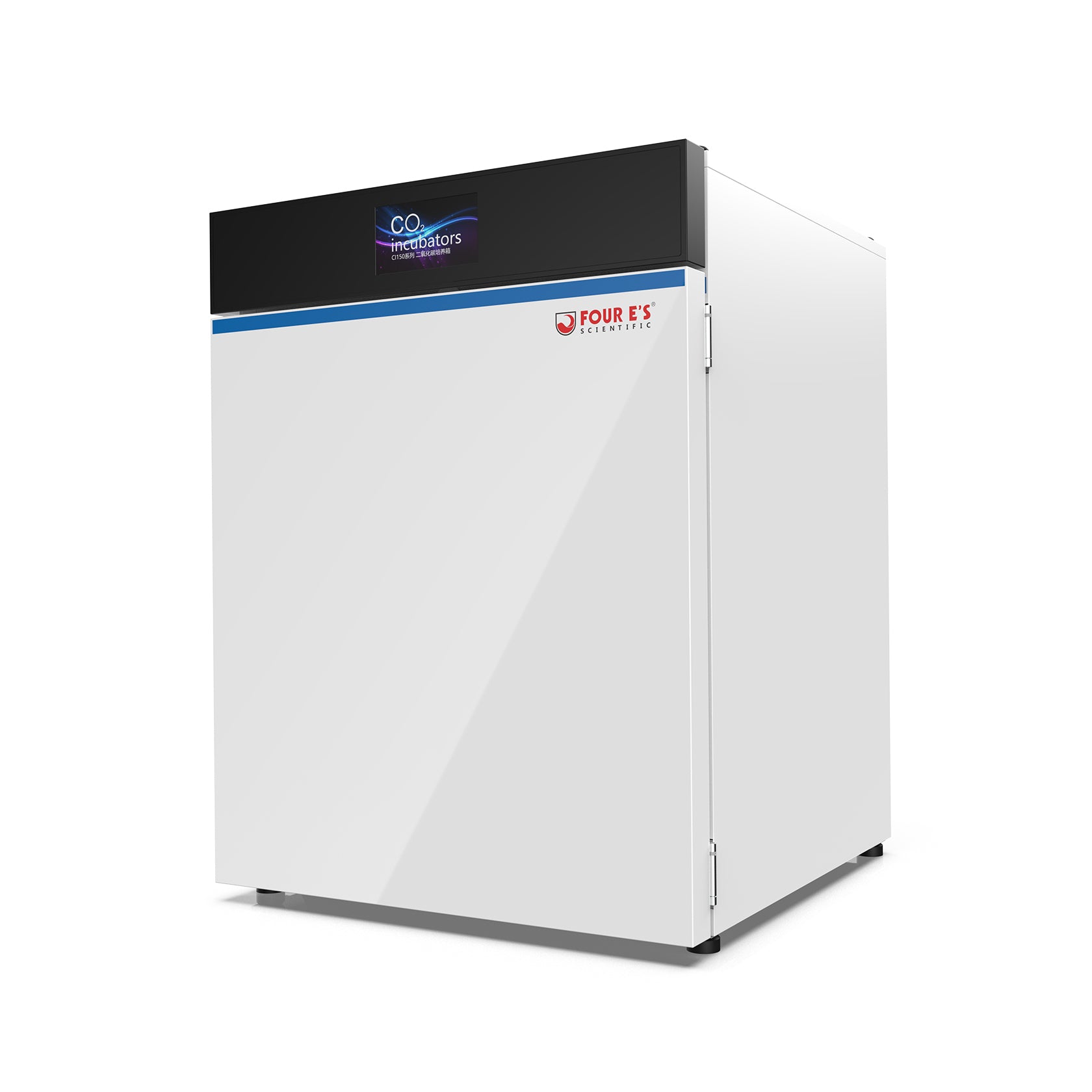

CO₂ Incubator

Product Information Product code : ICO170

A CO2 incubator is designed to create and maintain optimal conditions for cell and tissue culture. It plays a crucial role in maintaining a cell culture's sterility, temperature, humidity, and carbon dioxide levels, mimicking the physiological environment necessary for the growth and proliferation of cells.

The CO2 incubator is widely used in scientific research to grow and maintain cell cultures. Typical fields of application include tissue engineering, in vitro fertilization, neuroscience, cancer research, cell biology, microbiology and drug development.

Four E's CO2 incubator combine high capacity, PID temperature control and fast temperature and

CO2 recovery (less than 5 min), providing optimal atmospheric conditions to maintain the culture's viability.
Choose distributor

Direct Heat Technology

The CO₂ incubator utilizes direct heat technology with efficient high-performance heating elements spread across every chamber surface. This innovative approach ensures that the temperature is evenly distributed throughout the entire chamber, promoting optimal conditions for various applications. The convenience of direct heat technology allows for easy cleaning with the option of high temperature sterilization, enhancing maintenance procedures. Additionally, this technology enables a smaller footprint for the incubator, eliminating the need for air or water jacket.

Direct Heat Technology


High Temperature Disinfection


Circulating Fan

  • Specifications
  • Features
  • Downloads
Model ICO170 (Standard)
Heating Method Direct heat + Air jacket
Capacity 170L
Input Voltage 110V/220V 50/60HZ
Power <60W/H (37℃)
Power (high temperature sterilization) <1500W/H (180℃)
Convection Fan
Heat Insulation Foam
Display 7-inch touchscreen
Disinfect 180°C high temperature disinfection (HTD)
Chamber Humidity 95±5% R.H. (Relative Humidity)
Inner door material Tempered glass
Access port (for cables etc.) Inner diameter 30mm
Noise < 50dB
Alarm CO2 concentration alarm, high & low temperature alarm,door-opening alarm, humidity alarm, low water level alarm (optional), O2 concentration alarm (optional)
Data transfer USB,Ethernet port
Upgrade method Wireless or Cable
Inner dimensions 557x518x597mm
Outer dimensions 718x744x956mm
Weight (accessories excluded) ≤80KG
Temperature Control
Temperature range Ambient+3°C~55°C (ambient: 5℃~35℃)
Temperature controller PID
Temperature uniformity at 37°C ±0.3°C
Temperature stability at 37°C ±0.1°C
Temperature Recovery Time(recover to 37°C after 30s door-opening) < 5 minutes
CO₂ Control
CO₂ sensor Dual IR sensor
CO₂ concentration range 0.1-20%
CO₂ accuracy ±0.1 %
CO₂ concentration recovery time(recover to 5% after 30s door-opening)  < 4 minutes
HEPA filter Filter 99.97% of 0.22μm foreign particles
CO₂ connector 8mm tube (inner diameter)
CO₂ pressure 0.1MPa
Configurable Features
Door handle location Left / Right
Wheel type Optional Caster (size: 40mm)
Chamber Material Standard: 304 Stainless Steel (Optional: Copper)
Number of shelves Standard:3 (Optional: 6 or 10)
Number of inner doors Standard: Unsegmented inner door (Optional: 3 or 6-segmented inner doors)
Humidification Standard: Passive humidification water tray (Optional: Active humidification external humidity reservoir)
Water level monitor in the water tray Optional

Features

  • Six-sided heating to ensure uniform temperature and fast heating

  • Infrared CO2 sensor is high temperature-resistant and esnures accuracy

  • Heated door prevents condensation water

  • 180°C high temperature dry heat sterilization

  • 7-inch large touchscreen, real-time display of temperature, humidity (optional), CO2 concentration, O2 concentration (optional), operation status bar, alarm, etc.

  • Parameter can be viewed as charts

  • The circulation fan accelerates the air circulation in the chamber so that the temperature and CO2 concentration can quickly recover to the previous level after door opening

  • Simple structure, compact, easy and quick disassembly and installation of components like shelves in the chamber

  • Equipped with HEPA filtration, highly effective filtration of microorganisms

  • Standard package is equipped with an inner door of a whole glass design and 3 shelves (Optional inner door with 3 segments and other inner door with 6 segments)

  • Stainless steel mirror inner chamber with rounded angle design makes it easy to clean

180 °C High Temperature Disinfection

The process of High Temperature Disinfection at 180 °C is a crucial method for maintaining sterility in sensitive environments like medical and pharmaceutical industries. It fully complies with the stringent standards set by various pharmacopoeias, ensuring the highest level of safety possible. Once the chamber undergoes the hot air disinfection process, it minimizes the risk of secondary contamination. This immediate usability not only saves time but also enhances overall workflow efficiency, ensuring a seamless operation in sterile environments.

4E’S Vs Other Brands

180°C high temperature disinfection

Hassle-free maintenance

Fan Assisted Circulation

One Year Warranty

Frequently Asked Questions

Everything you need to know about product and billing. Can’t find the answer you are looking for? Please write your question to us at info@4Es-USA.com

What is the warranty on the item?

Four E's Equipment comes with a one year all-inclusive warranty.

Do you stock this item?

Yes, this item is in stock at our NJ warehouse.

Can our incubator be stacked?

Yes, 1 incubator can stack onto the other without using any shelves.
The feet of the top incubator and top surface of the bottom incubator fit together in an interlocking design,
maximizing stability for stacking.

What does “Tri-gas” mean in the CO2 incubator? And what does it serve?

“Tris-gas” means CO2 , O2 and N2. The standard doesn’t include the O2 option.

Why is O2 needed for cell culture?

Oxygen control: Atmospheric air contains approximately21 % oxygen. Physiological oxygen concentrations of cells can typically range from 1 % to 13 %. It has been found that oxygen concentration is a critical environmental component that influences stem cell growth and development, for instance. That is why scientists in a variety of emerging fields, like stem cell research, are coming to understand the value of controlling oxygen in addition to CO2 and temperature.

How does the recovery time affect the cell culture?

Faster recovery time after door opening results in less disturbance to cell growth, yielding better outcomes. Conversely, slower recovery time leads to greater disruption of cell growth, extending the growth period and affecting cell consistency.
