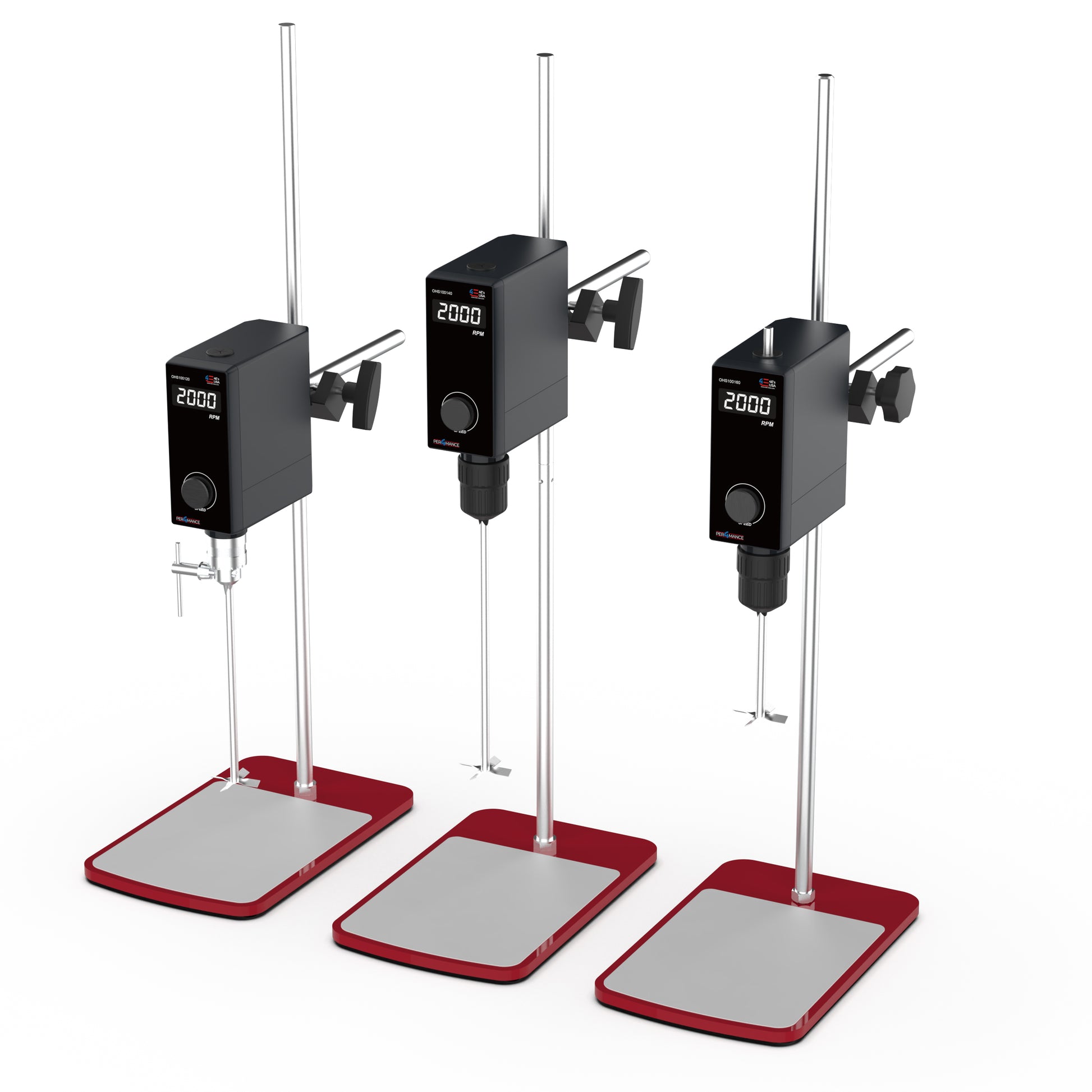

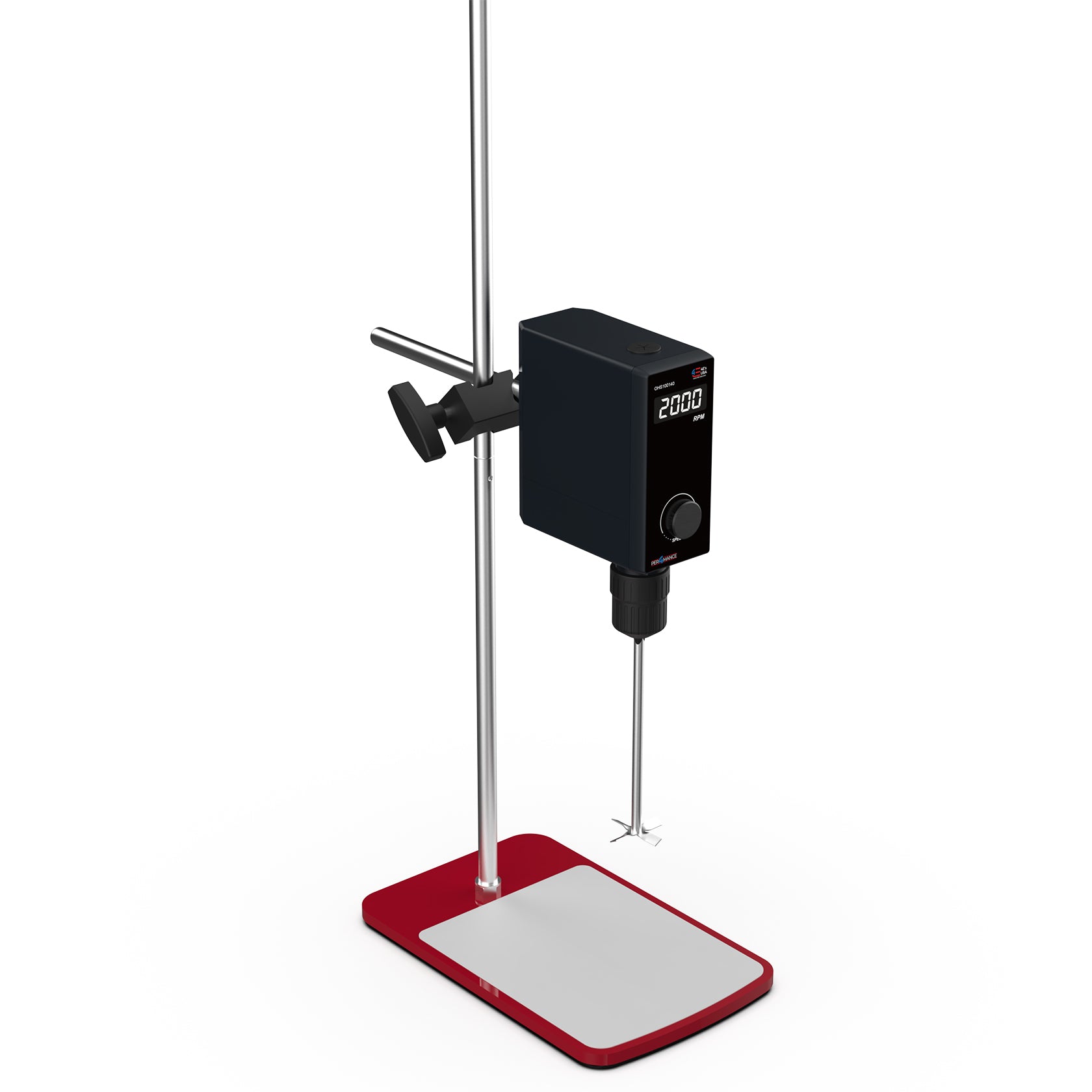

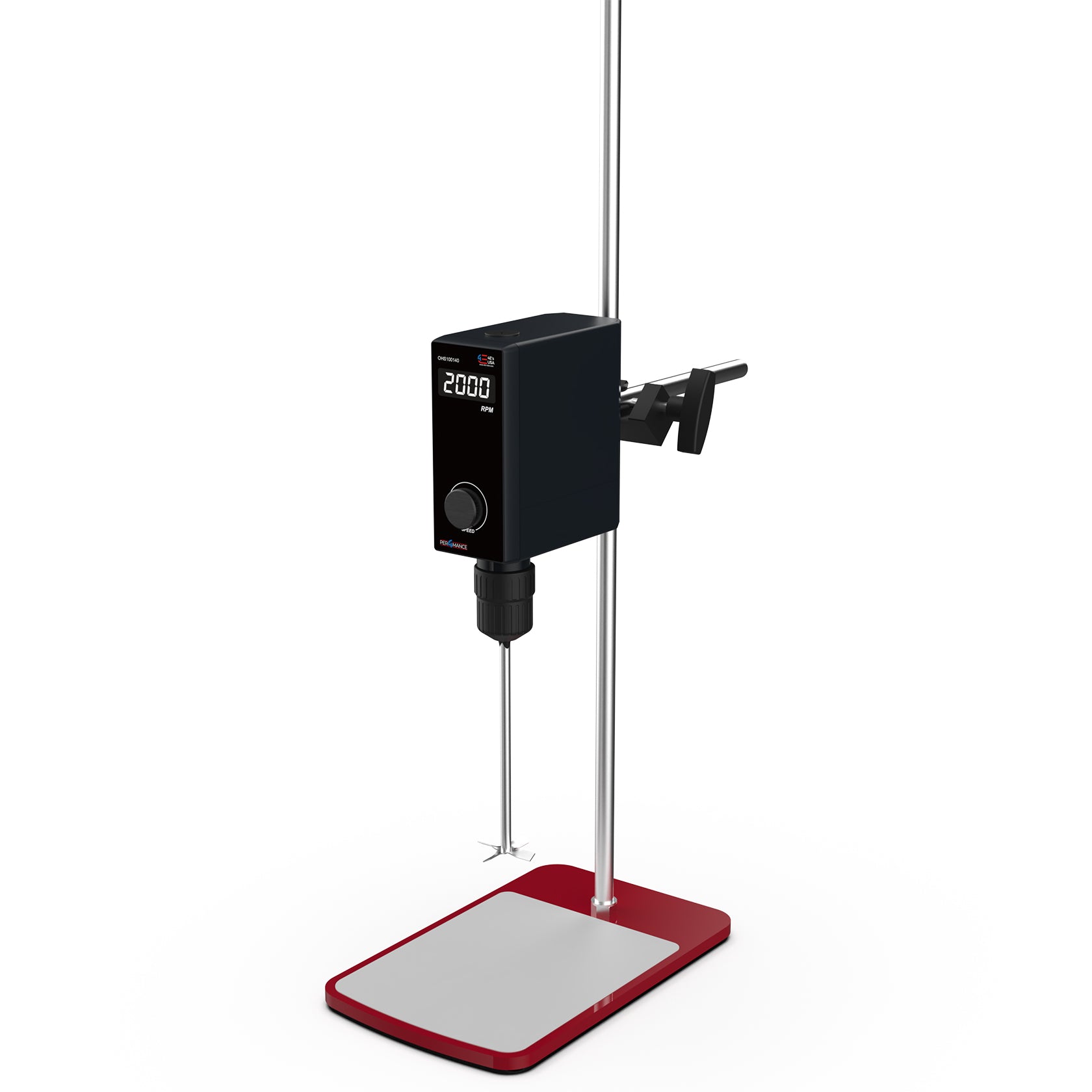

Overhead Stirrers | 20 Liter – OHS-20D, 40 Liter – OHS-40D, 60 Liter – OHS-60D
Sleek and Powerful Overhead Laboratory Stirrers Designed for Years of Service
To build great stirrers you start with great engineers. Four E’s USA Overhead Stirrers were designed with our engineering team working closely with customers mixing emulsions, suspensions, and water and oil mixtures. These stirrers use advance controls to provide constant mixing speed through low and high viscosity solutions. Whether you are working with polymers or polyphenols Four E’s USA stirrers were designed to exceed expectations.
Bright, Easily Readable, Modern Display
Built in Overload
Maintenance Free Brushless DC Motor
|Voltage||100V -240V||100V -240V||100V -240V|
|Max. input power||72W||145W||220W|
|Speed range under normal load||0/50-2000rpm||0/50-2000rpm||0/50-2000rpm|
|Speed increment||Stepless, 10rpm||Stepless, 10rpm||Stepless, 10rpm|
|Max. torque at stirrer shaft||20N.cm||40N.cm||60N.cm|
|Max. stirring quantity||20L (H20)||40L (H20)||60L (H20)|
|Max Viscosity||1,000 mPas||5,000 mPas||5,000 mPas (2000rpm) 10,000 mPas (1000rpm)|
|Protection class according to DIN EN60529||IP42||IP42||IP42|
|Protection at Overload||YES||YES||YES|
|Over Temperature protection||YES||YES||YES|
|Permissible ambient temperature||5-40°C||5-40°C||5-40°C|
|Permissible relative humidity||80 %||80 %||80 %|
|Clamping chuck-clamping range||0.5-10mm||0.5-10mm||0.5-10mm|
|Dimensions (D×W×H) (without extension arm)||71×174×240mm||71×174×240mm||71×174×240mm|
|Weight (with extension arm and clamping chuck)||2.3kg||2.5kg||2.5kg|
Compact, Solid, and Sleek design
Speed Range: 50rpm~2000rpm
Provides constant speed even with changes in viscositiesof the sample

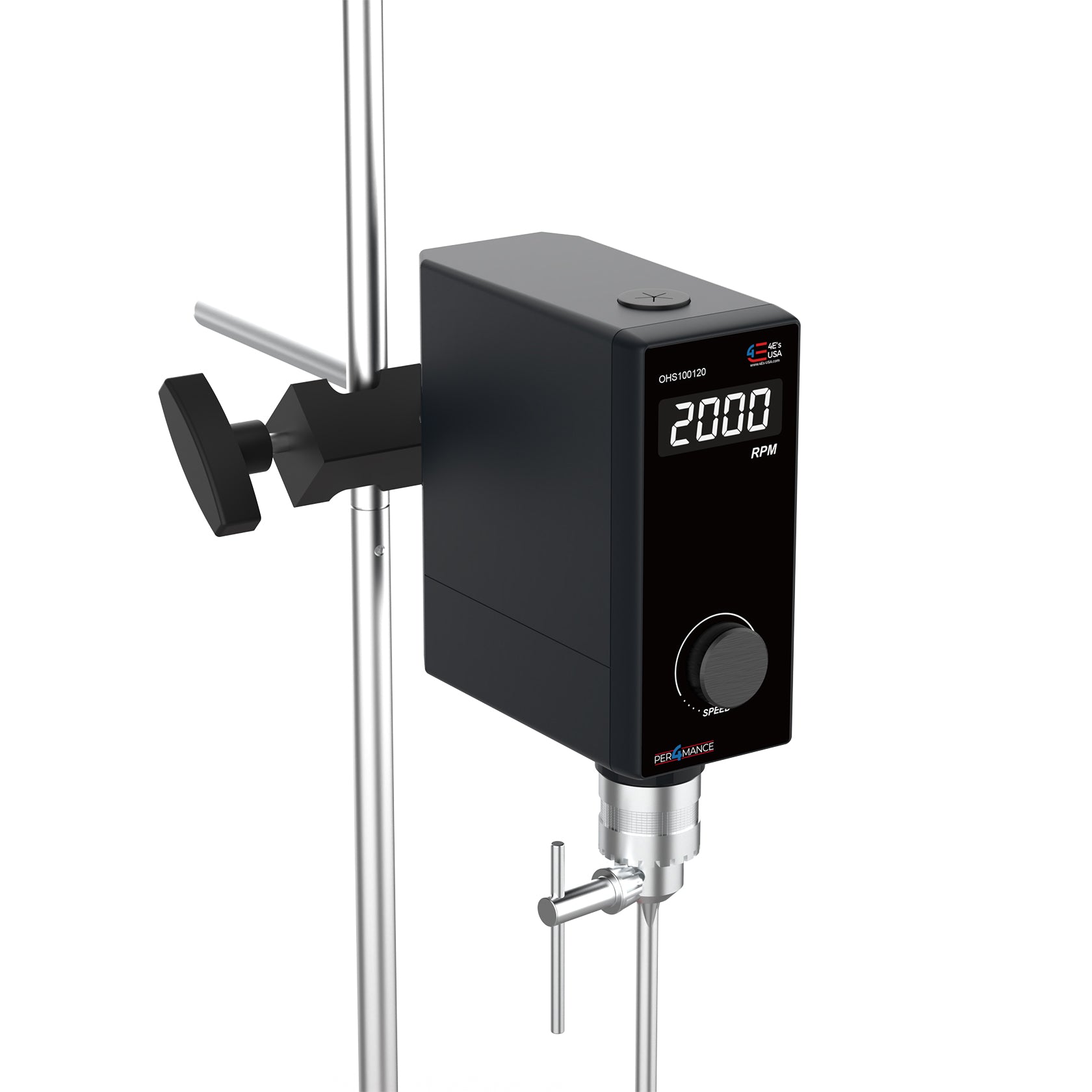

Wide LED display for precise speed adjustment and monitoring
LED display shows actual and set speeds alternately
Overload protection system if the torque exceeds the stirrer ratings
Safety circuits: Circuit auto cut-off feature for additional protection
Maintenance-free Brushless DC motor

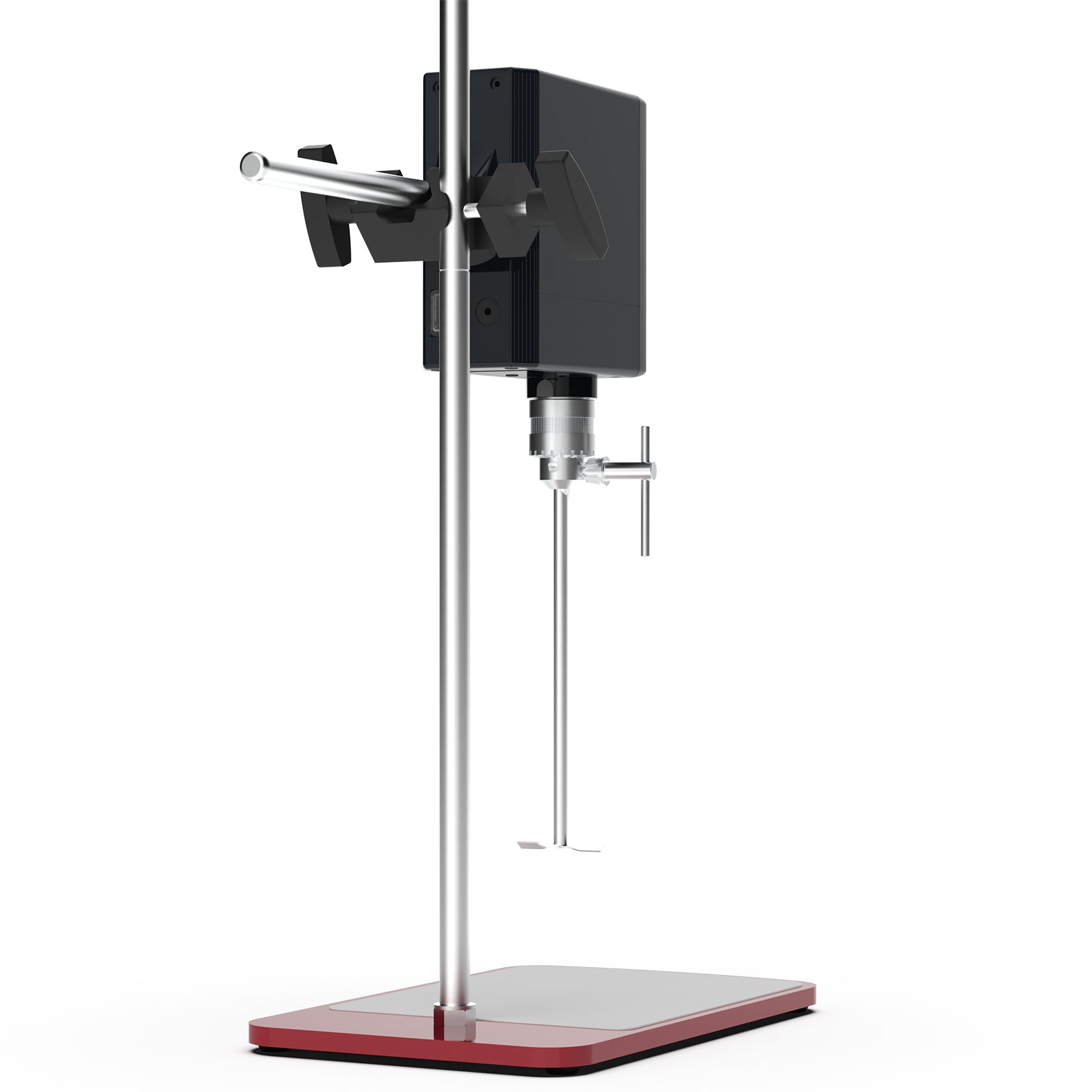

The through-shaft housing design allows for easy impeller heightadjustments and thereby less downtime in between sample changes
Digital Overhead Stirrer OHS Models REVA

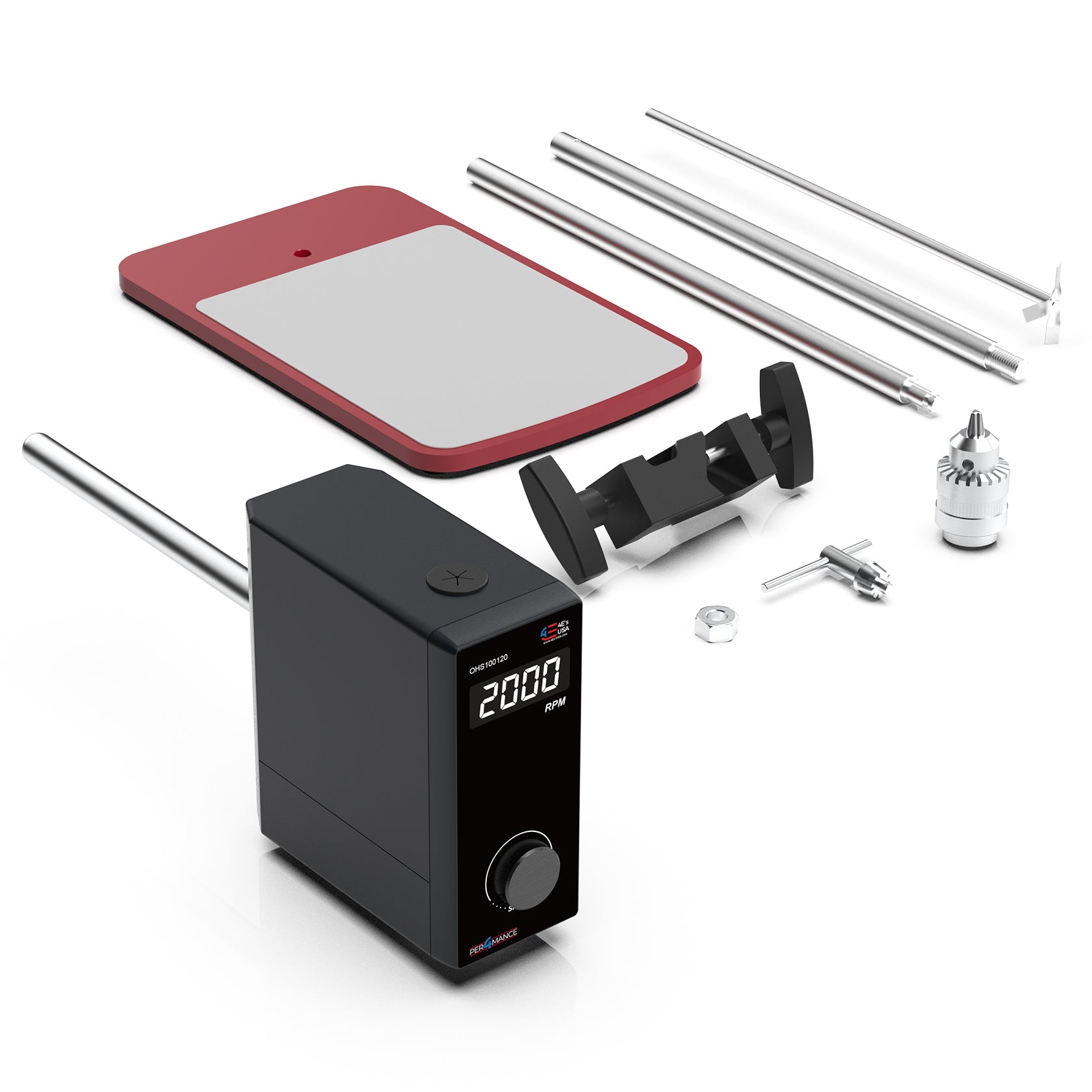

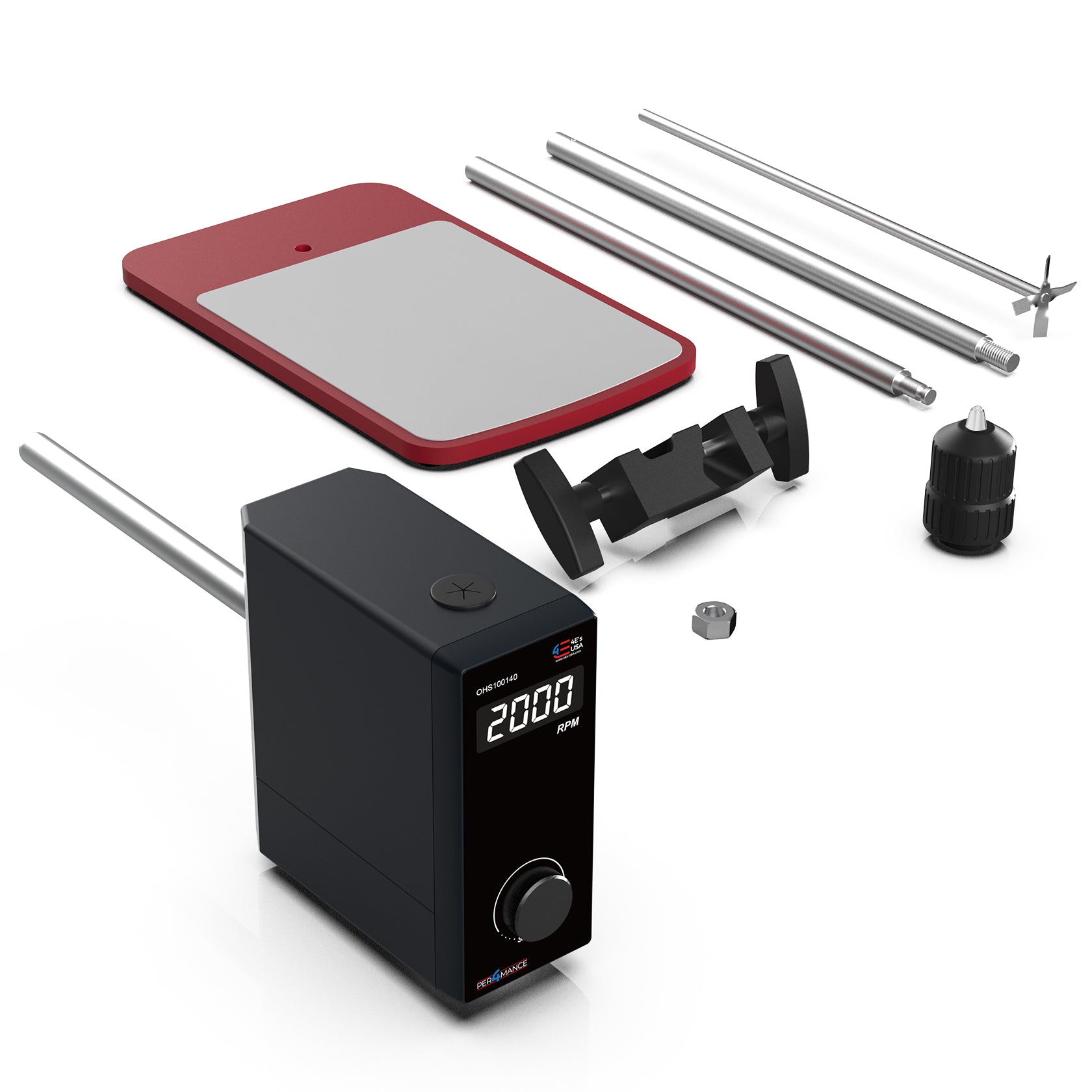

Four E’s takes mixing seriously. Each overhead stirrer includes everything you need to start suspending. The through shaft design allows for adjustable impeller height and securely attaches the implement to the high-end brushless motor. We also have over a dozen accessories to ensure that your experiment has the tools necessary for success. The bright display alternates between the set speed and the actual speed to provide real-time process feedback. Contact our product specialist to determine what model is best for your lab
Safety is Paramount
How much safety is too much for an overhead stirrer? We don’t know but we would rather err on the side of caution. Four E’s USA has multiple safeties built in for the operator and the device. If the unit detects excess torque a proprietary overload safety kicks in. There are also auto cut off and temperature sensing circuits for additional protection. The intuitive interface has easy to read codes and an audible alarm for fault detection and diagnosis.
4E’S Vs Other Brands
Sleek Glass Interface
Bright OLED Type Display
Base Plate and Stand Included
Adjustable Through Shaft
Multiple Error Codes
Multiple Safety Systems
Affordable Price Point
Brushless DC Motor
IP 42 Protection
Frequently Asked Questions
Everything you need to know about product and billing. Can’t find the answer you are looking for? Please write your question to us at info@4Es-USA.com
Do you sell additional impellers?
Four E’s offer a range of impellers for your mixing application. Please check our accessories section or reach out to a product specialist
Is there a warranty on the unit?
Four E’s stirrers come with a two-year warranty.
What is the maximum viscosity rating for the OHS-60D?
The OHS-60D has two viscosity ratings. If your are operating under 1000 rpm’s the rating is 100,000 mPas. If you are operating above 1000 rpm’s the rating is 50,000 mPas
What type of motor is used in the units?
A top-tier, maintenance free, brushless DC motor.
What is the RPM range for these devices?
The units can have a setpoint from 50 – 2000 rpm’s
Will the unit cut-off automatically if it gets too hot?
Yes, one of the safety features will protect the device from damage due to overheating.
Does the unit have alarm codes?
Yes, the unit has four alarm codes and audible alarms for easy diagnosis
How do you set the speed?
To configure the speed, use the large knob to adjust the setpoint. Press the nob to start or stop the stirring
