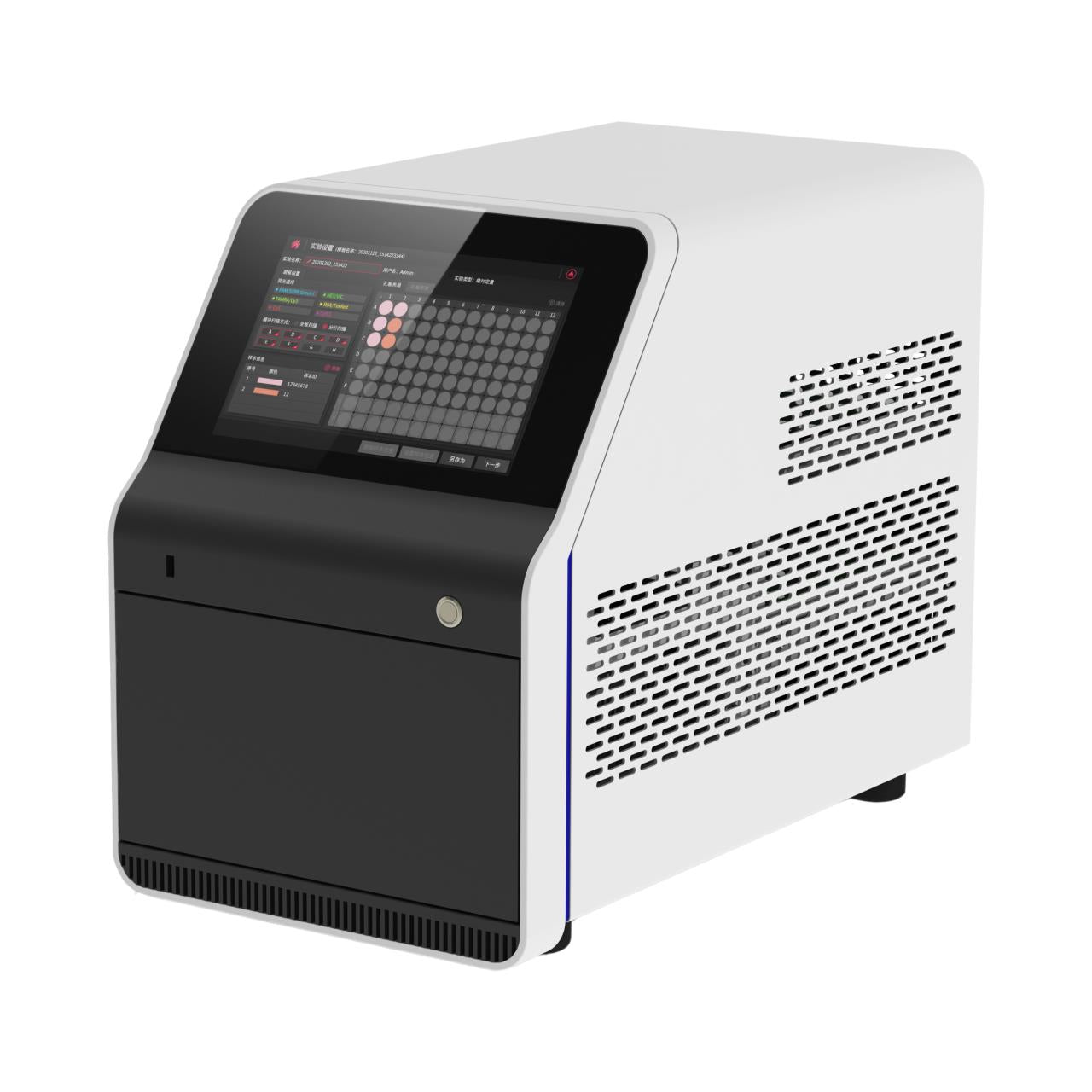

Real-Time Fluorescent Quantitative PCR System 960406 (96 wells)

Designed for Multiple Applications

The Real-Time Fluorescent Quantitative PCR System uses a fluorescence real-time detection method to analyze the amplification of the PCR template. It is suitable for human genome engineering, forensic medicine, oncology, population biology, paleontology, zoology, botany, and other research fields. This PCR detection system can be an in vitro diagnostic medical device, which is suitable for polymerase chain reaction fluorescence quantitative detection in the field of clinical diagnosis of viruses, tumors, genetic diseases, etc.


● Advanced optical system including full-spectrum high-power LED and high-sensitive PMT top scanning achieves higher sensitivity you need in researches and experiments.
● High-precision temperature control over the block with a resolution of 0.1 ℃ offers reliable and consistent qPCR assay data.
● Gradient temperature range is 30-100℃ and the temperature difference between adjacent blocks can be high up to 40℃ for assay optimization.
● Sample tray automatically moves in/out, enabling integration with automated workstations/plate handlers for unmanned detection.
● 6 fluorescence channels without cross-talk and 96-well high-throughput process at a single run meet a variety of qPCR assay demands.
● The 10.1-inch large touch screen facilitates flexible programming and efficient running of PCR protocols.
● The intuitive built-in software and PC software for improved user experience allow you to run and analyze qPCR data from a personal computer.
●Two temperature control modes enable you to control either block or tube temperatures.
Model 96046
Throughput 96 well (12X8)

Applicable consumablesPCR single tube and strip of 0.2 ml, 96-well half skirted / no skirted plate

PCR single tube and strip of 0.1 ml, 96-well no skirted plate


Dynamic range 1-1010copies
Detection location Top detection
Excitation light wavelength 400-800nm
Detection wavelength 500-800nm
Fluorescence channels 6 channels
Fluorochrome / dye Channel 1: FAM/SYBR Green I
Channel 2: JOE/HEX/TETA/IC
Channel 3: NED/TAMRA/Cy3
Channel 4: ROX/Texas Red
Channel 5: Cy5
Channel 6: Cy5.5
Excitation light source full-spectrum LED
Detector PMT
Block temperature range 4〜105°C
Block temperature accuracy ≤±0.1 °C
Block temperature precision ≤±0.1 °C
Block temperature uniformity ≤±0.1 °C
Block max. heating & cooling rate >6°C/s
Gradient temperature difference 1-40°C
Block temperature control mode Block mode, Tube mode
Sample capacity 5-100 µL
Heated lid temperature range 30°C-110°C (default 105°C)
Fluorescence intensity CV≤3%
Detection repeatability Yes
Touch screen 10.1 inch touch screen
Scan mode Full plate scan or specified line scan
Software functions Absolute quantification, Relative quantification
Melting curve, SNP genotyping, HRM, Quick run, etc.
Operation system PC software(Windows 8 or higher), Built-in software
Ports USB Type-A port x 2, USB Type-B port, RJ45 port
Power-off protection function Yes, data can be restored after power-on
Sample plate control mode Sample tray automatically moves in/out, enabling integration with automated workstations/plate handlers.
Dimensions 320(W)mmx525(L)mmx420(H)mm
Net weight ≤23 Kg
