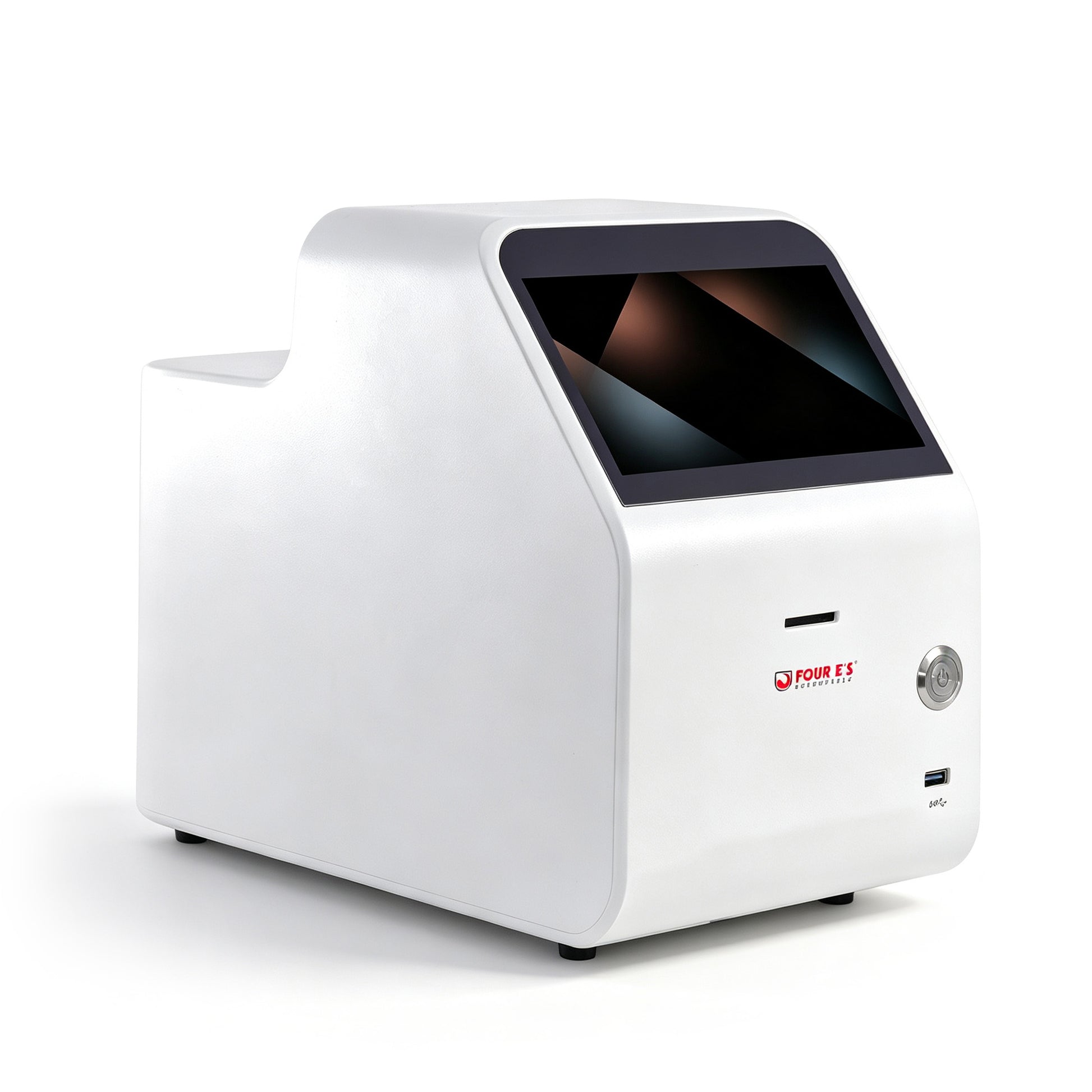

Fully Automatic High-throughput Cell Counter
Couldn't load pickup availability
High-Throughput Fluorescence Analysis
The Fully Automatic High-throughput Cell Counter comes with fluorescence function. It enables rapid and accurate cell analysis, performing fluorescence analysis of up to 6 samples in just 2 minutes. By utilizing AO/PI fluorescent dyes, it provides reliable cell counting with precise measurements of cell concentration and viability. The integrated fluorescence imaging system also allows for fast and dependable quantification of GFP transfection efficiency, improving workflow efficiency in cell analysis applications.
AO/PI Fluorescent
Instant Insights
Intuitive Touchscreen
-
- Specifications
-
- Features
-
- Downloads
| Product Name | Fully AutomaticHigh-throughput Cell Counter(with Fluorescence function) | Fully AutomaticHigh-throughput CellCounter |
| Model | CountX FL | CountX |
| Part Number | CCA006F | CCA006 |
| Counting method | Brightfield cell counting/Trypan blue cell counting/Dual fluorescence | Brightfield cell counting/Trypan blue cell counting |
| Detection method | Brightfield + Fluorescence (blue and green LED) | Brightfield |
| Objective Magnification | 4X | 4X |
| Focus | Auto focus + Manual focus | Auto focus + Manual focus |
| Data transfer | USB | USB |
| Single sample analysis time(Single view) | Bright field< 1 second/Fluorescence<12 second (AO/PI) | < 1 second |
| Single sample analysis time(five views) | Five views: Bright field<8second/Fluorescence<54second (AO/PI) | < 8 second |
| Six sample analysis time (five views) | Bright field< 55 second/Fluorescence<334 second (AO/PI) | < 51 second |
| Cell diameter range | 2-400 μm | 2-400 μm |
| Sample Volumn | 20μL | 20μL |
| Camera | CMOS 6.3 million pixels (color high definition) | CMOS 6.3 million pixels (color high definition) |
| Display | 7-inch HD touchscreen | 7-inch HD touchscreen |
| Data Storage | Standard 128GB hard drive，other capacities are optional | Standard 128GB hard drive，other capacities are optional |
| Weight | 4.4kg | 4.2kg |
| Dimensions (W x D x H) | 190x270x367 mm | 190x270x367 mm |
Features
-
●
From sample to results in three simple steps: Load, Insert, Count.
-
●
Analyze up to 6 samples simultaneously.
-
●
Rapid cell counting in as little as 1 second per sample.
-
●
Captures five fields of view per sample, combining brightfield imaging with two fluorescence channels (Ex: 475 nm / 545 nm; Em: 530 nm / 605 nm) for improved accuracy and reproducibility.
-
●
Supports a wide range of cell types with diameters ranging from 2 to 400 μm.
-
●
Enables both brightfield cell counting and trypan blue viability analysis.
-
●
Integrated 7-inch touchscreen for standalone operation without an external computer.
-
●
Generates tables and growth curves for easy data analysis.
-
●
Auto-focus functionality ensures sharp images and consistent results across all samples.
-
●
Advanced analysis tools include cell proliferation curves, organoid analysis, dilution and passaging calculators, and flow cytometry-compatible data output.
-
●
Features user access control, role-based permissions, encrypted data export, and audit trail functionality to support compliance with GMP/cGMP and 21 CFR Part 11 requirements.
Fully Automatic High-throughput Cell Counter Datasheet
Versatile Applications
The device is designed for comprehensive cell analysis of cultured cells and primary cells isolated from various biological sources, including tissues, bone marrow, peripheral blood, bronchoalveolar lavage (BAL) fluid, and liver samples. Equipped with dual-fluorescence detection technology, it enables rapid and reliable cell counting, viability assessment, and sample characterization. The system provides detailed cell analysis results, including cell concentration, live and dead cell concentration, live and dead cell percentages, total cell count, cell proliferation curves, average cell diameter, comprehensive result analysis charts, and transfection efficiency evaluation, supporting a wide range of research and cell culture applications.
4E’S Vs Other Brands
Intuitive touchscreen
Two Year Warranty
