Magnetic Hotplate Stirrers

$469.00
$469.00
Sale Contact Us
Product Information Product code : MI0102005

The Magnetic Hotplate Stirrers combine efficient heating with precise magnetic stirring in a compact and easy-to-use design. Available in 5-inch, 7-inch, and multi-position configurations, the series provides reliable solutions for different sample volumes and laboratory requirements.

Featuring accurate temperature adjustment, stable speed control, and durable ceramic-coated plates, these stirrers are built for dependable daily laboratory operation.
Choose distributor

Stirrer-accessory

Temperature Sensor Support Clamp | MHS201145 - Four E's USAu

Temperature Sensor Support Clamp - MHS201145

$51.61 USD

PT1000 Temperature Sensor - Four E's USA

PT1000 Temperature Sensor

$41.00 USD

Efficient Heating and Mixing in One Platform

The Magnetic Hotplate Stirrers combine precise stirring and reliable heating performance to support a variety of laboratory applications. The series includes 5-inch and 7-inch hotplate stirrers, as well as multi-position models, providing flexible solutions for different sample volumes. Featuring accurate temperature control, stable speed regulation, and durable ceramic-coated heating surfaces, this series deliver consistent heating and mixing performance for research, life science, and analytical laboratories.

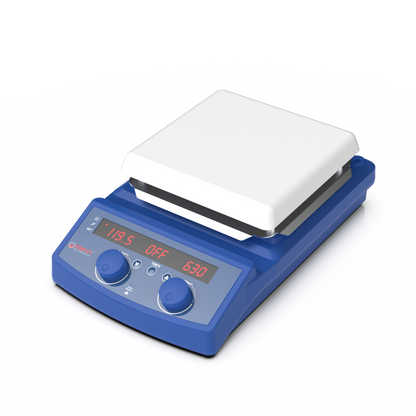

MI0102005-Four E

Robust Structure

Excellent Stirring Capability

Silent Operation

  • Specifications
  • Features
  • Download

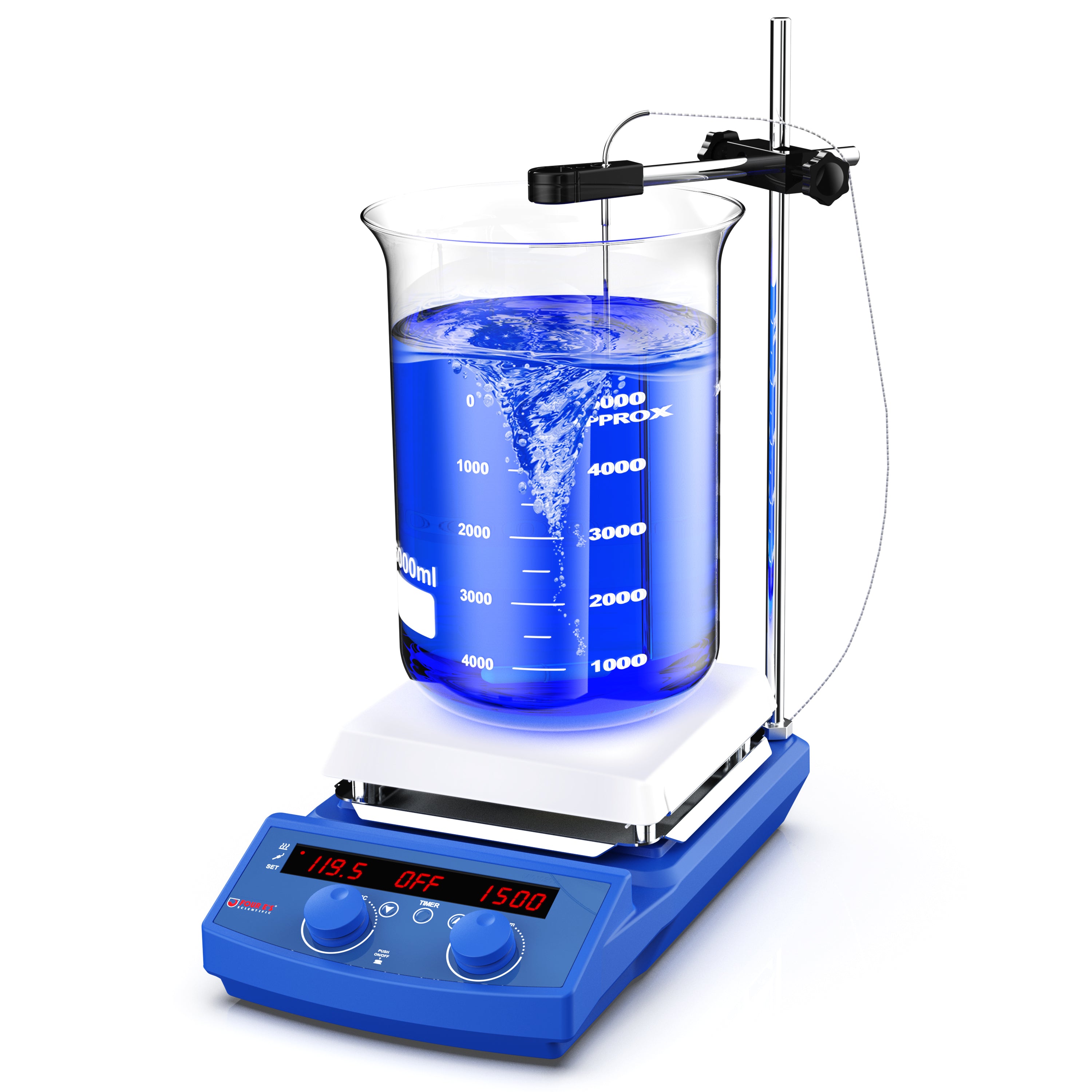

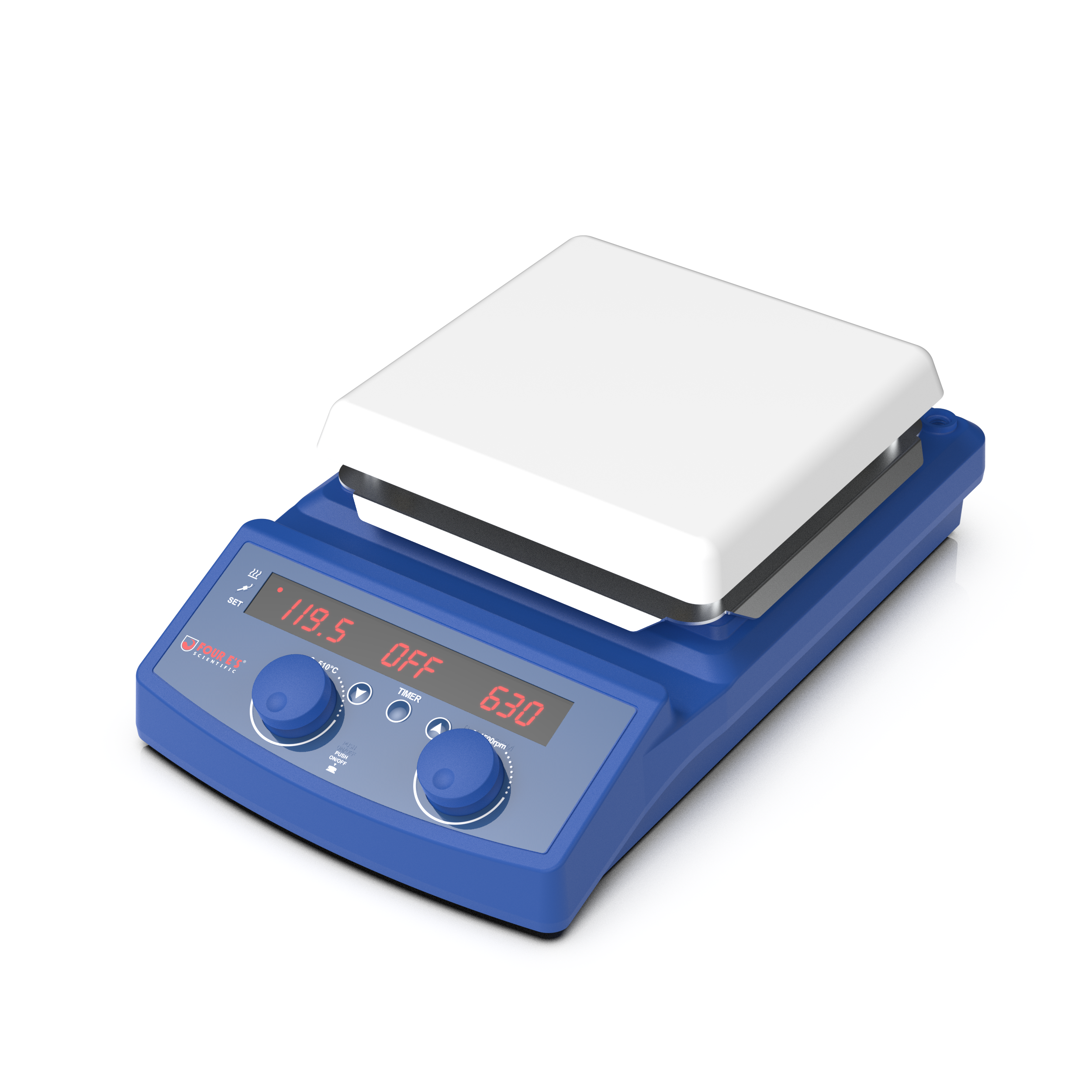

MI0102005 (7'' LED Magnetic Hotplate Stirrer)

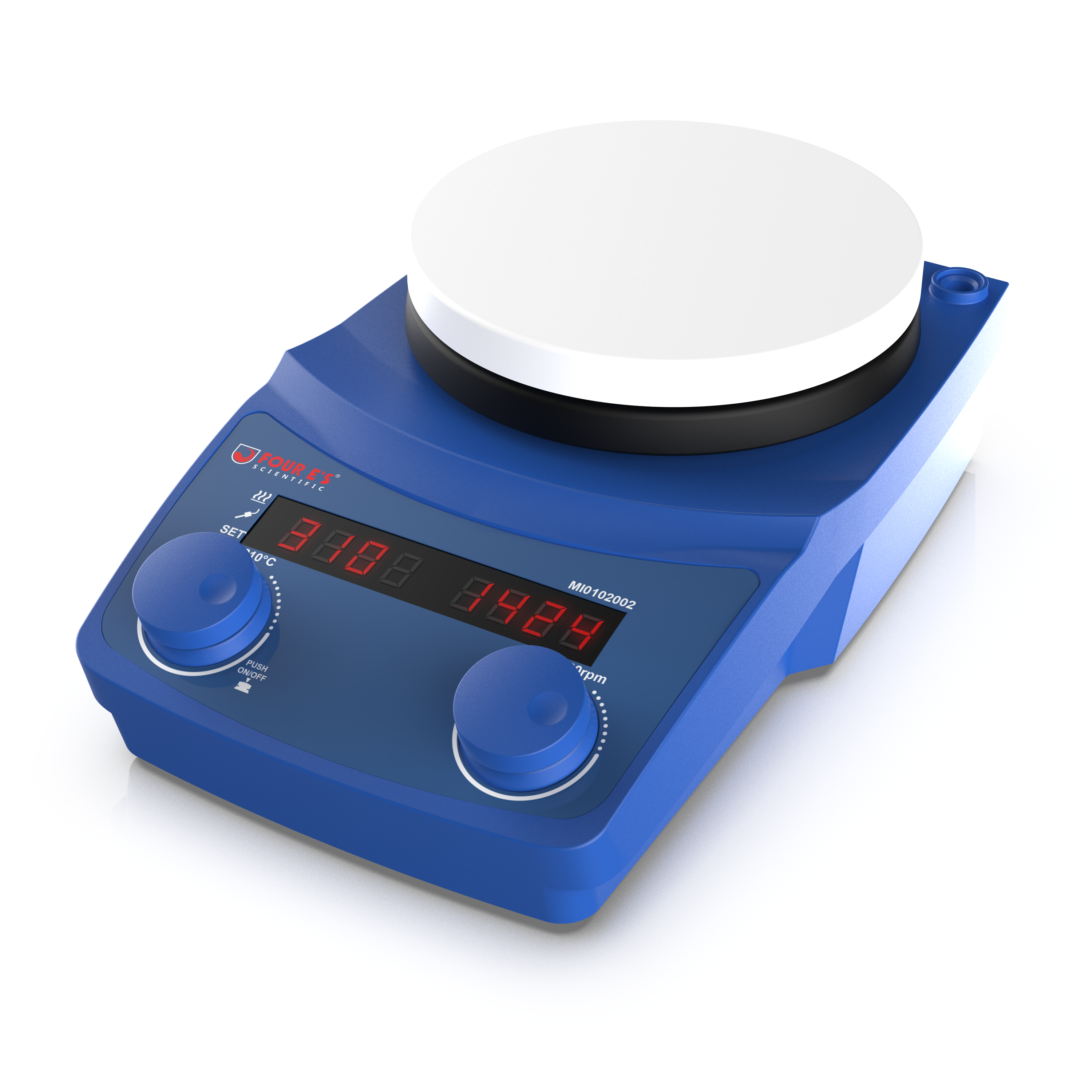

MI0102002 (5'' LED Magnetic Hotplate Stirrer)

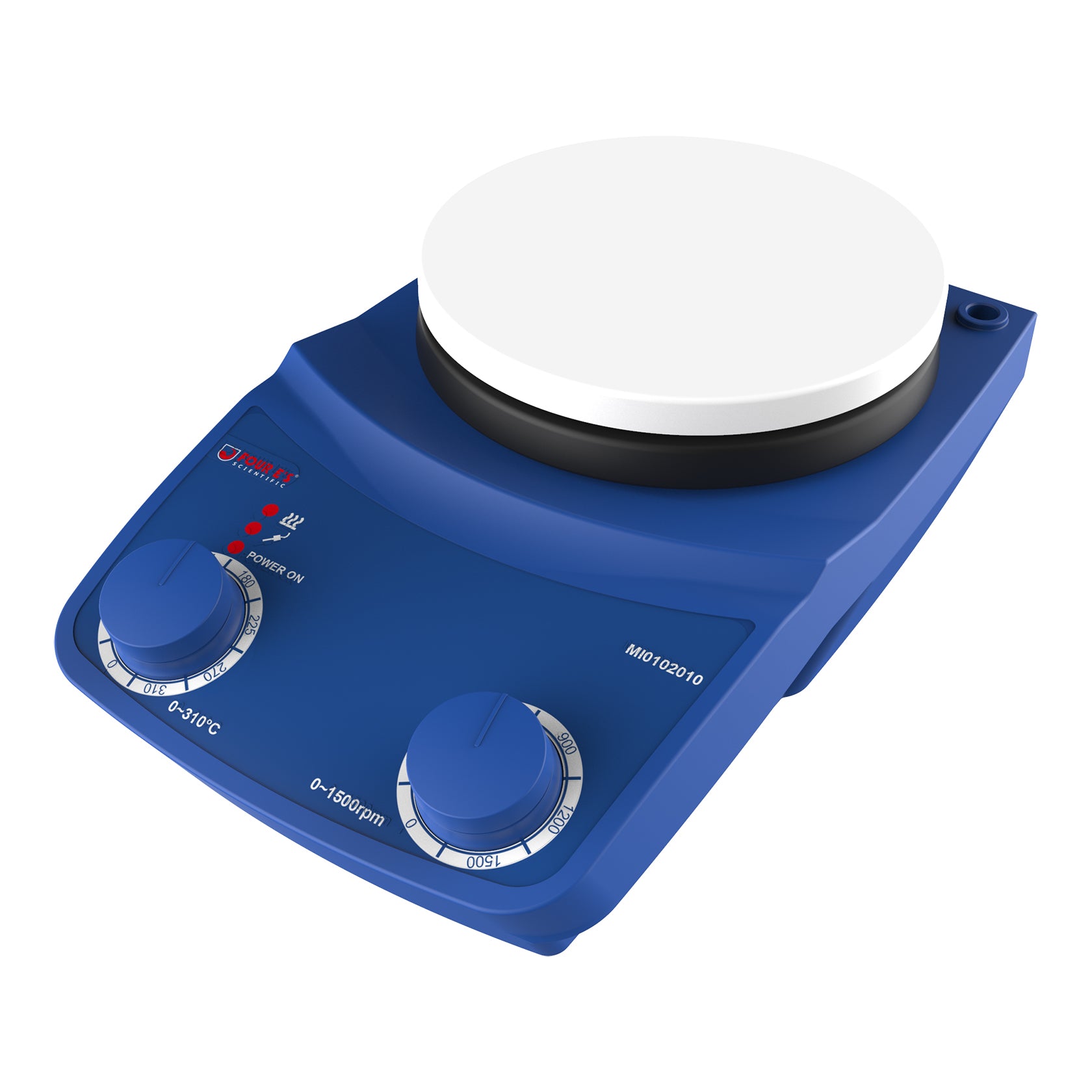

MI0102010 (5'' Magnetic Hotplate Stirrer)

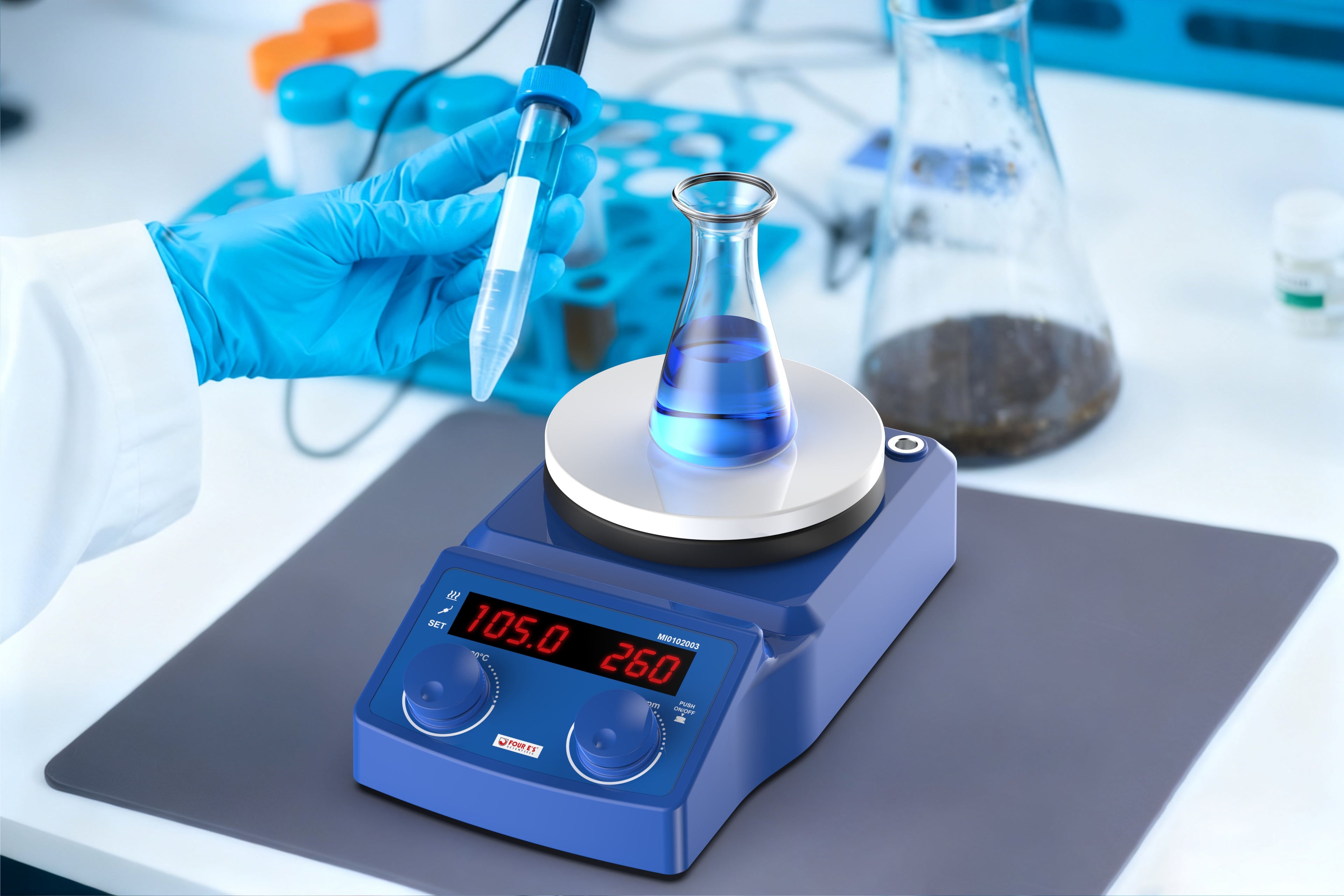

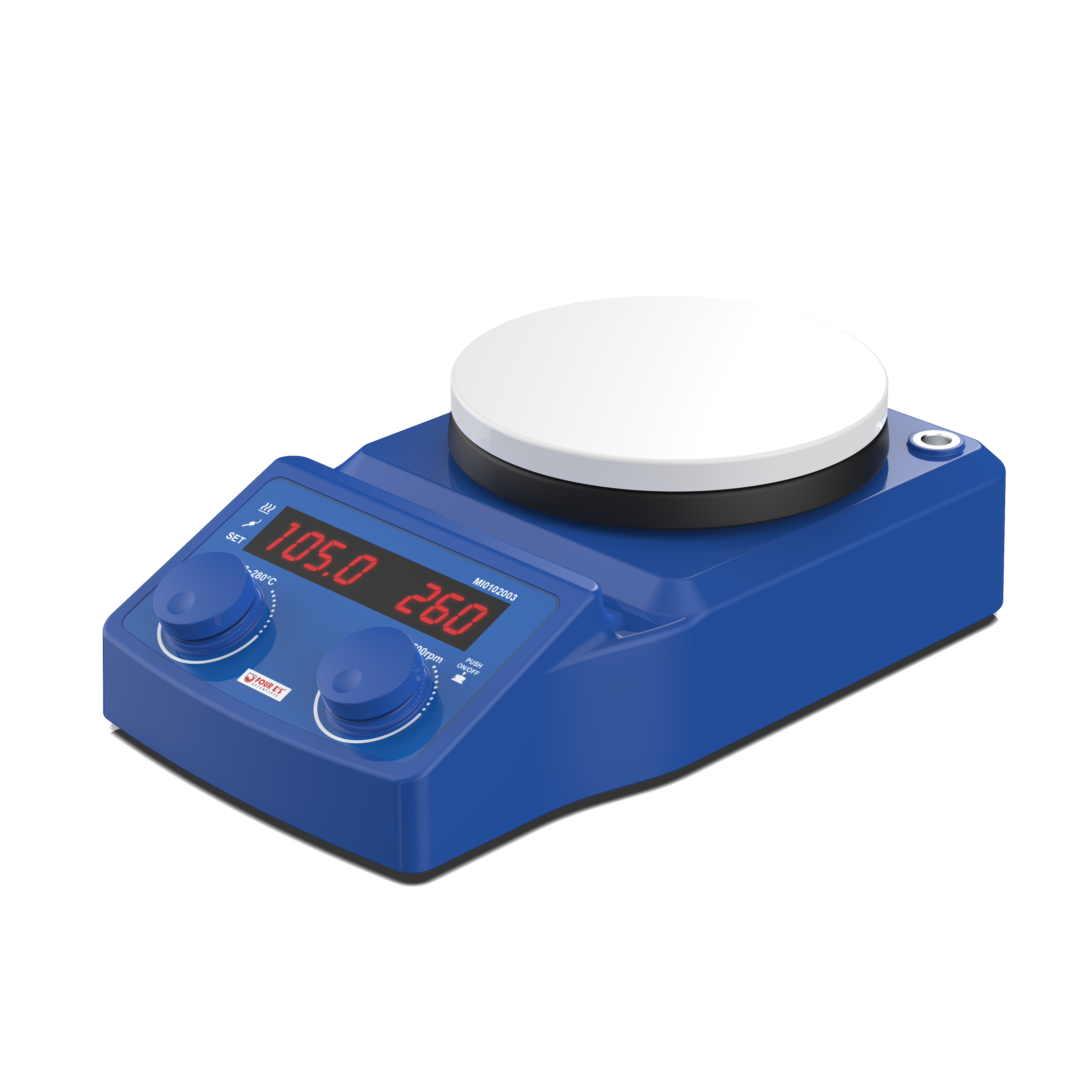

MI0102003 (5'' LED Magnetic Hotplate Stirrer)

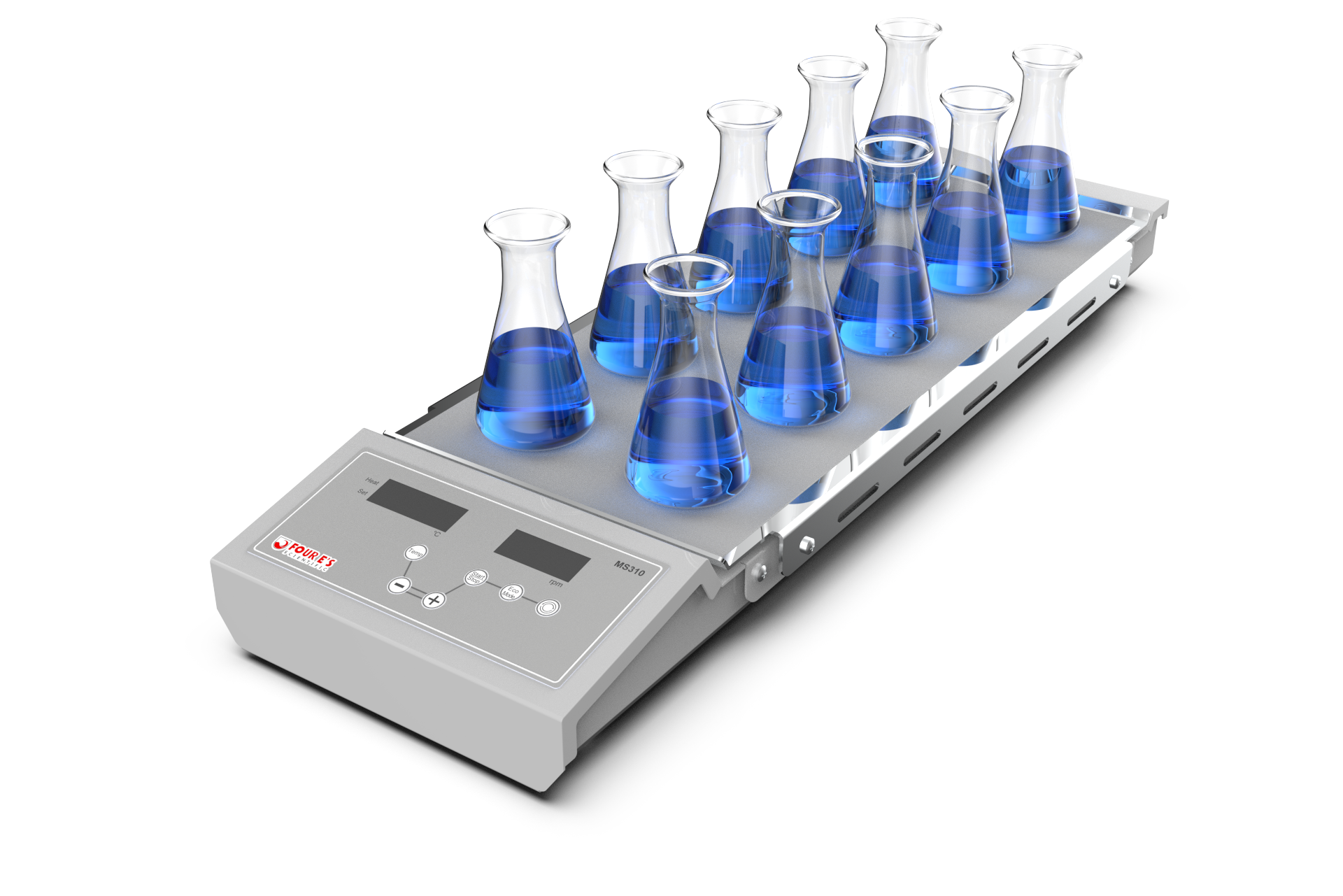

MS310 (10-Position Magnetic Hotplate Stirrer)

Model MI0102005 MI0102002 MI0102010 MI0102003 MS310
Stirring position 1 1 1 1 10
Set-up plate dimensions 185x185mm Φ137 Φ137 Φ137 470x205mm
Set-up plate material Stainless steel with ceramic coated Stainless steel with ceramic coated Stainless steel with ceramic coated Stainless steel with ceramic coated Stainless steel with silicone
Motor type Brushless DC motor Brushless DC motor Brushless DC motor DC motor DC motor
Max. stirring quantity (H₂O) [L] 20 20 20 5 0.4x10
Max. stirring bar [LxΦ / mm] 80xΦ9.5 55x10 55x10 55x10 length: 30
Speed range [rpm] 50-1500 50-1500 50-1500 100-1500 0-1200
Speed display LED LED Scale LED LED
Heating temperature range [℃] RT to 510 RT to 310 RT to 310 RT to 280 RT to 120
Temperature display LED LED Scale LED LED
Temperature display resolution [℃] 0.1 0.1 / 0.1 /
Safety temperature [℃] 50-550 50-325 50-325 50-320 150
Temperature control accuracy with external temperature sensor ±1(<100°C)，1%(≥100°C) ±1 / ±1 /
Time range 0-99h59m / / / 0-99h59min
Time display LED / / / LED
Hot surface warning [℃] 50 50 50 50 /
Protection class according to DIN EN60529 IP42 IP42 IP42 IP42 IP30
Permissible ambient temperature [°C] 5-40 5-40 5-40 5-40 5-40
Permissible relative humidity 80% 80% 80% 80% 80%
Heating power[W] 1000 600 600 600 500
Power supply [VAC] 200-240/100-120 200-240/100-120 200-240/100-120 200-240/100-120 100-120/200-240
Frequency [Hz] 50/60 50/60 50/60 50/60 50/60
Power [W] 1050 650 650 630 580
Dimensions [WxDxH / mm] 220 x 350 x 100 159 x 254 x 93 159 x 254 x 93 268 x 160 x 85 630 x 210 x 70
Weight [kg] 6.8 2.7 2.7 1.8 10
Standard accessory PT1000 PT1000 / PT1000 /
Optional accessory Stand with support clamp Stand with support clamp /Silicone hood / Digital thermometer Silicone hood/Stand with support clamp Stand with support clamp /

Features

  • ●

    User-Friendly Operation: Equipped with intuitive controls and clear displays for convenient monitoring of speed and temperature settings.

  • ●

    Heating and Stirring in One Device: Combines efficient heating with magnetic stirring to simplify laboratory workflows and save bench space.

  • ●

    Durable Stainless Steel Working Plate: Stainless steel heating plates with ceramic coating (depending on model) offer excellent chemical resistance and easy cleaning.

  • ●

    AvailableIncludes compact single-position models and multi-position solutions to accommodate different sample volumes and workflows.

  • ●

    Designed for Daily Laboratory Use: Suitable for routine heating, mixing, and sample preparation tasks in research and analytical laboratories.

MI0102005 User Manual

MI0102002 User Manual

MI0102010 User Manual

MI0102003 User Manual

Perfect for Different Laboratory Needs

Available in 5-inch & 7-inch sizes and various configurations, including compact single-position models and multi-position stirrers, Four E’s Magnetic Hotplate Stirrers provide flexibility for different sample volumes and experimental setups. Durable heating plates, intuitive controls, and stable operation make them a dependable choice for routine laboratory workflows.

4E’S Vs Other Brands

4E’S
Brand X
Brand Y

2 Year Warranty

Compact Design

Quiet operation

Frequently Asked Questions

Everything you need to know about product and billing. Can’t find the answer you are looking for? Please write your question to us at info@4Es-USA.com

Does the Unit Come with a Warranty?

Yes, all Four E’s stirrers have a two-year warranty.
