Micro Volume Spectrophotometer - UV-VIS Spectrophotometry

Product Information

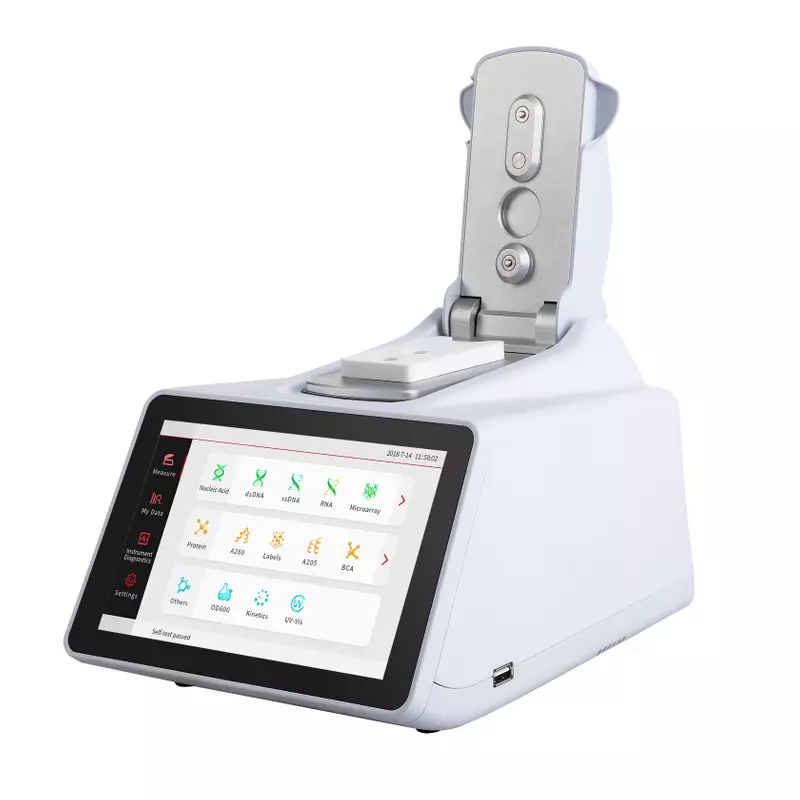

The Micro volume spectrophotometer (UV-Vis) with built-in 7-inch color touch screen, can accomplish all detection functions without connecting to a computer. The device comes with an intuitive user interface, and the compact design saves valuable laboratory space. The device has wide application in molecular biological experiments, such as DNA, RNA, protein detection.

Choose distributor

Four Models Selection

The UV-VIS Spectrophotometry offers a selection of four distinct models to cater to different measurement needs. The options include models that allow for full wavelength scanning or those with fixed wavelength capabilities. Additionally, there are models equipped with micro volume measurement features, as well as two other models that come with a supplementary cuvette module.

Wide detection range


Instant Insights


Intuitive Touchscreen

  • Specifications
  • Features
  • Downloads
Model NanoC-3100 Nano-3100 NanoC-2100 Nano-2100
Detector 2048-element CCD   linear image sensor 2048-element CCD linear image sensor 2048-element CCD   linear image sensor 2048-element CCD linear image sensor
Light Source Xenon flash lamp Xenon flash lamp Xenon flash lamp Xenon flash lamp
Minimum Sample Volume (uL) 0.5 0.5 0.5 0.5
Light source Xenon flash lamp Xenon flash lamp Xenon flash lamp Xenon flash lamp
Pathlength (mm) 0.03/0.05/0.1/0.2/1.0 auto-ranging 0.03/0.05/0.1/0.2/1.0 auto-ranging 0.03/0.05/0.1/0.2/1.0 auto-ranging 0.03/0.05/0.1/0.2/1.0 auto-ranging
Wavelength Upgrade NA NA Available Available
Wavelength Range (nm) 185-910 185-910 Default 230/260/280/350/600/185-910 customizable Default 230/260/280/350/600/185-910 customizable
Wavelength Accuracy (nm) ±1 ±1 ±1 ±1
Spectral Bandwidth ≤1.8 (FWHM at Hg 253.7nm) ≤1.8 (FWHM at Hg 253.7nm) ≤1.8 (FWHM at Hg 253.7nm) ≤1.8 (FWHM at Hg 253.7nm)
Photometric (Abs) 0-550 (10mm equivalent) 0-550 (10mm equivalent) 0-550 (10mm equivalent) 0-550 (10mm equivalent)
Measurement Repeatability 0.002 (1mm path) or 1% CV 0.002 (1mm path) or 1% CV 0.002 (1mm path) or 1% CV 0.002 (1mm path) or 1% CV
Photometric Accuracy ±2% (at 0.86A at 257mm)    3% (at 0.64A at 350mm) ±2% (at 0.86A at 257mm)    3% (at 0.64A at 350mm) ±2% (at 0.86A at 257mm)    3% (at 0.64A at 350mm) ±2% (at 0.86A at 257mm)    3% (at 0.64A at 350mm)
Limit of Detection Pedestal: 2ng/uL dsDNA,0.06mg/mL BSA,0.03mg/mL IgG 2ng/uL dsDNA,0.06mg/mL BSA,0.03mg/mL IgG 2ng/uL dsDNA,0.06mg/mL BSA,0.03mg/mL IgG 2ng/uL dsDNA,0.06mg/mL BSA,0.03mg/mL IgG
Maximum Concentration Pedestal: 27500ng/uL dsDNA,820mg/mL   BSA,400mg/mL lgG Pedestal: 27500ng/uL dsDNA,820mg/mL   BSA,400mg/mL lgG Pedestal: 27500ng/uL dsDNA,820mg/mL   BSA,400mg/mL lgG Pedestal: 27500ng/uL dsDNA,820mg/mL   BSA,400mg/mL lgG
Measurement Time(S) ≤5 ≤5 ≤5 ≤5
Cuvette Temperature(℃) 37±0.5 NA 37±0.5 NA
Cuvette Stirring Speed 10-900RPM10 levels(adjustable) NA 10-900RPM10 levels(adjustable) NA
Cuvette Photometric Range 0-1.5A (10mm) NA 0-1.5A (10mm) NA
Cuvette Limit of Detection 0.2ng/μL dsDNA0.006mg/mL BSA0.003mg/mL lgG NA 0.2ng/μL dsDNA0.006mg/mL BSA0.003mg/mL lgG NA
Display 7 inch,1280x800 HD LCD,Gesture recognition 7 inch,1280x800 HD LCD,Gesture recognition 7 inch,1280x800 HD LCD,Gesture recognition 7 inch,1280x800 HD LCD,Gesture recognition
Operating System Android Android Android Android
Internal Storage 32GB flash memory 32GB flash memory 32GB flash memory 32GB flash memory
PC system Requirements Windows 7:32/64 bit,Windows 8/10:64 bit Windows 7:32/64 bit,Windows 8/10:64 bit Windows 7:32/64 bit,Windows 8/10:64 bit Windows 7:32/64 bit,Windows 8/10:64 bit
Data communications USB/Wifi USB/Wifi USB/Wifi USB/Wifi
Power Supply AC110V-220V,50Hz/60Hz (power adapter) AC110V-220V,50Hz/60Hz (power adapter) AC110V-220V,50Hz/60Hz (power adapter) AC110V-220V,50Hz/60Hz (power adapter)
Net Weight 2.3kg 2.2kg 2.3kg 2.2kg

Features

  • Wide detection range: With a 0.03 mm minimum detection path length, the maximum detection concentration of the device is as high as 27,500 ng/μL, and the minimum detection concentration as low as 0.2 ng/μL dsDNA.

  • Stable and reliable detection value: Stable and Accurate detection for both low and ultra-high concentrations.

  • Four models to choose from: You can choose either full wavelength or the fixed wavelength models with micro volume measurement and two other models with an additional cuvette module. The cuvette module has a heated stirring function.

  • Large size color touch screen: A large 7-inch high-resolution color touch screen with intuitive UI enables to easily perform detection and analyze results.

  • Indication Lights: A lighting strip around the test area flashes to indicate different test stages.

NanoC-3100/Nano-3100 User Manual

NanoC-2100/Nano-2100 User Manual

Stable and Reliable Detection

The UV-VIS Spectrophotometry stands out as a dependable technique that delivers precise results for both low and ultra-high concentrations. It excels in providing accurate results without compromising stability. This is particularly important in research settings where even the smallest deviation can lead to significant errors in data interpretation. Its consistency and precision in measuring the absorption of light by a sample across different wavelengths.

4E’S Vs Other Brands

Intuitive touchscreen

Microvolume detection

Two Year Warranty

Frequently Asked Questions

Everything you need to know about product and billing. Can’t find the answer you are looking for? Please write your question to us at info@4Es-USA.com

What is the warranty on the item?

Four E's Equipment comes with a two year all-inclusive warranty.

Do you stock this item?

Yes, this item is in stock at our NJ warehouse.
