Microplate Reader
In Stock: 0
The Microplate Reader comes with high-quality photometer and combined with a powerful built-in software provides accurate and reliable results. A big 10-inch color touch screen with intuitive user interface enables easy settings and analysis. The Microplate reader is ideal for qualitative and quantitative ELISA applications.
Couldn't load pickup availability
Large colorful LCD touch screen for ease of use
10-inch colorful capacitive touch screen enables easy settings and analysis. The User Interfaceis designed to be intuitive and user friendly and features large Icons. Up to three shortcuts can be setup for customized protocols, enabling quick launch of the protocols
Rapid Analysis
Touch Screen
User-Friendly
-
- Specifications
-
- Features
-
- Downloads
| Model | MMR-800+ |
| Plate Type | 96-well and 384-well plates (max height:15.3mm) |
| Light Source | Quartz-halogen lamp |
| Detector Type | Photo detector |
| Wavelength Selection | Filters (330-900nm) |
| Filters wheel | 8 filters wheel; Filters installed: 405nm，450nm，492nm and 630nm. Additional filters can be ordered separately. |
| Optional filters | 340/375/414/520/530/540/550560/570/595/620/650/690/740/750/820 |
| Half-bandwidth of filters | 3-9nm |
| Linearity | 0-4 Abs at 405nm (0-3Abs±2% in rapid measure mode;0-4Abs ±2% in common measure mode) |
| Read-out Range | 0 to 6Abs |
| Resolution | 0.001Abs |
| Accuracy | ±1% (0-3 Abs) at 405nm; ±2%(3-4 Abs) at 405nm |
| Precision | CV ≤ 0.2% (0-3 Abs) ; CV≤ 1% (3-4Abs) at 405nm |
| Shaking | Linear shaking with three modes:slow/ medium /fast |
| Measurement Speed | 8 seconds (96-well plate，fast mode）； 12 seconds （ 96-well plate，normal mode）；16 seconds （384-well plate，fast mode）；24 seconds（384-well plate，normal mode） |
| Optional incubator | Temperature range from ambient + 4°C up to 55°C |
| Display | 10-inch colorful touch screen |
| Interface | USB port for data transfer |
| Printer | USB / WiFi |
| PC software | Configured for standard |
| Power supply | 100-240V (50/60HZ) |
| Size (LXWXH) | 400×290×220mm |
Features
-
●
Wide wavelength ranging from 330nm to 900nm
-
●
Accurate: ±1% (0-3 Abs) at 405nm; ±2% (3-4 Abs) at 405nm
-
●

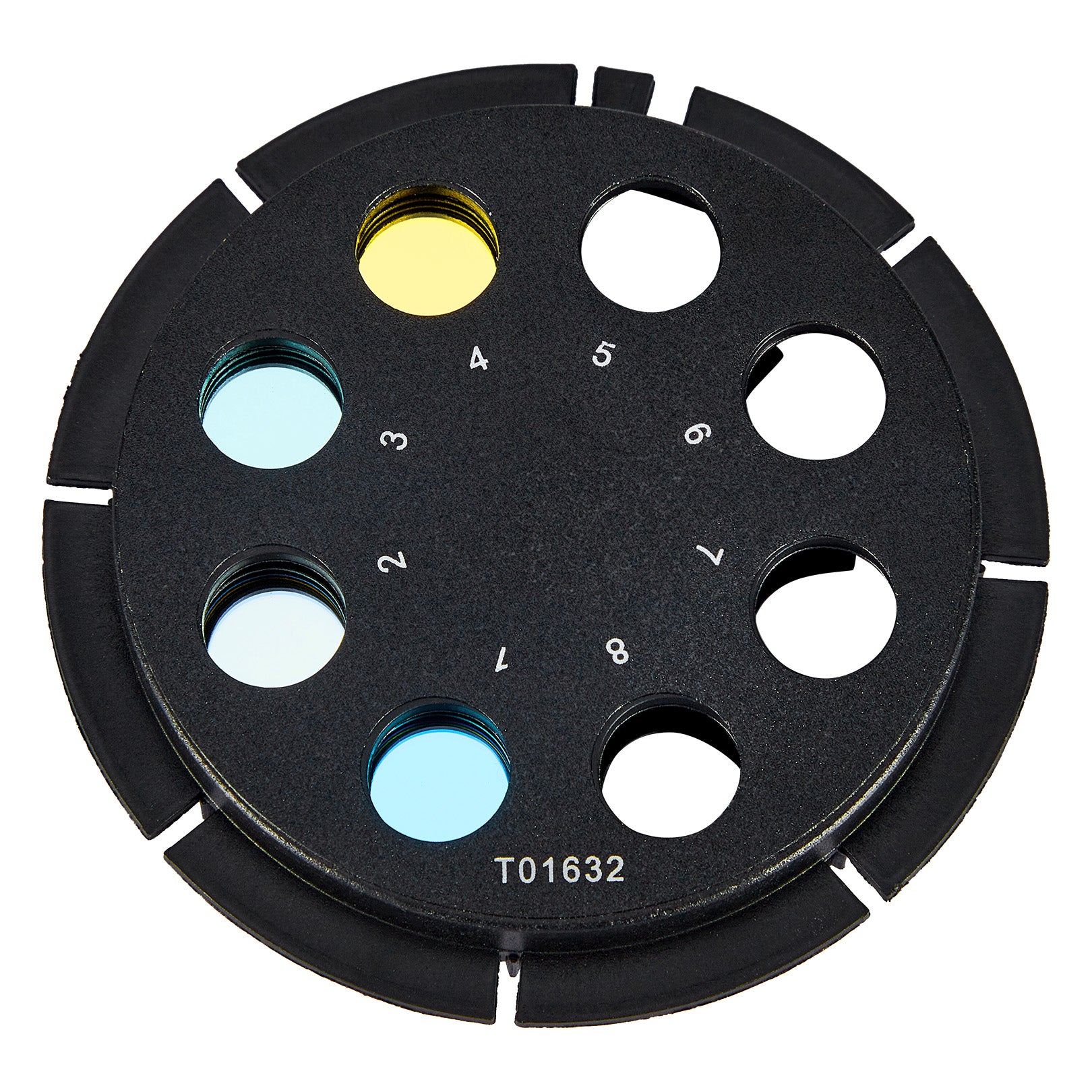

8 filters wheel with four preset filters
-
●

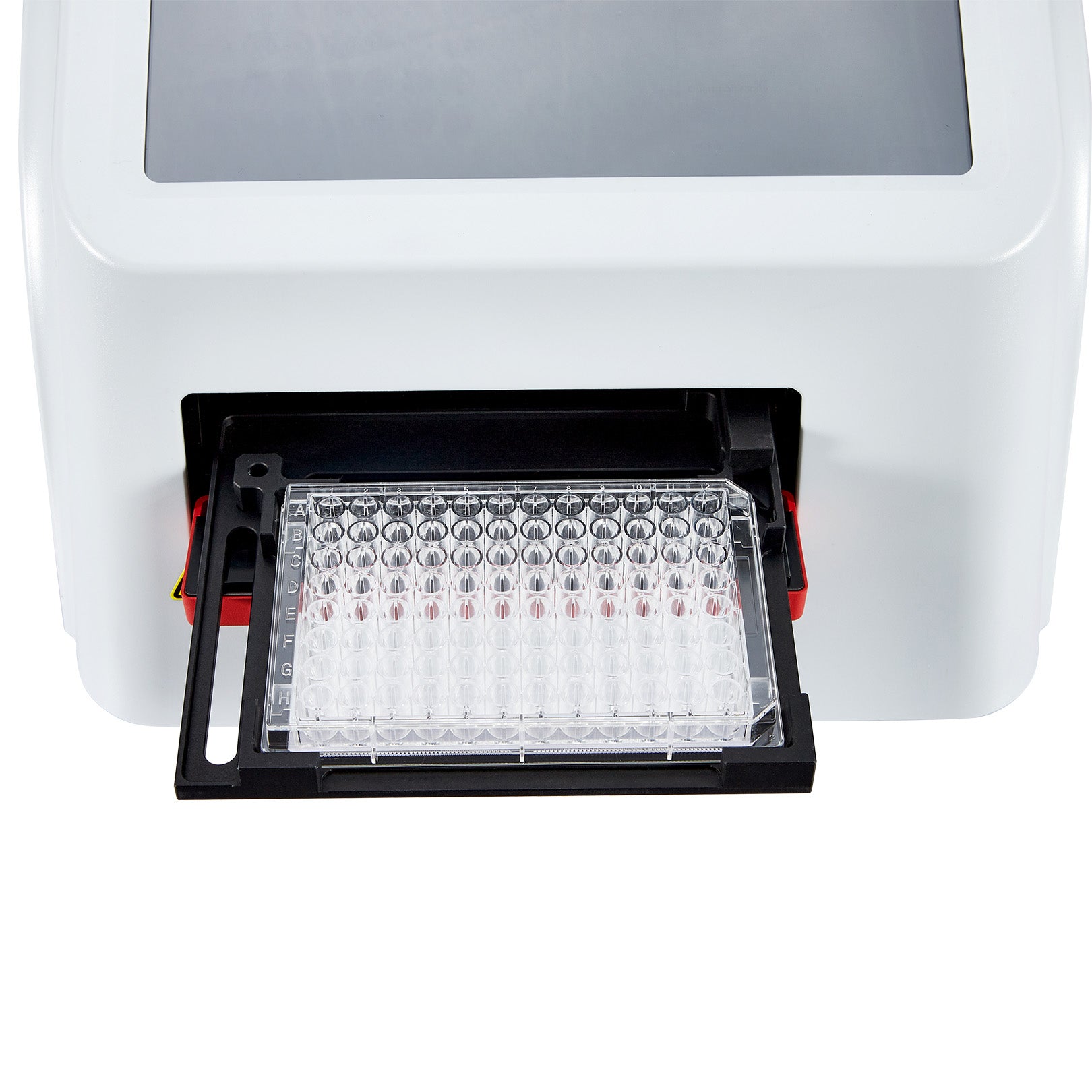

Fast reading of both 96 well and 384 well microplates
-
●
Shaking function and incubation (RT+4°C to 50°C) for temperature critical assays
-
●
10-inch colorful touch screen with intuitive user interface
-
●
High quality photodetector from Hamamastu
-
●
USB port for easy data transfer
Microplate Reader User Manual
Analight Software User Manual
Microplate Reader Datasheet
Precision Engineered for Unwavering Accuracy
Our device integrates a high-end optical system with a wide 330-900 nm detection range and automated self-diagnostics to deliver exceptional accuracy and stability. Upon each start-up, the built-in diagnostic program automatically verifies critical components, including microplate positioning and optical stability, ensuring reliable and precise results across every wavelength for a variety of demanding applications.
4E’S Vs Other Brands
4E’S
Brand X
Brand Y
Self-diagnostics
Wide wavelength
10-inch Touchscreen
