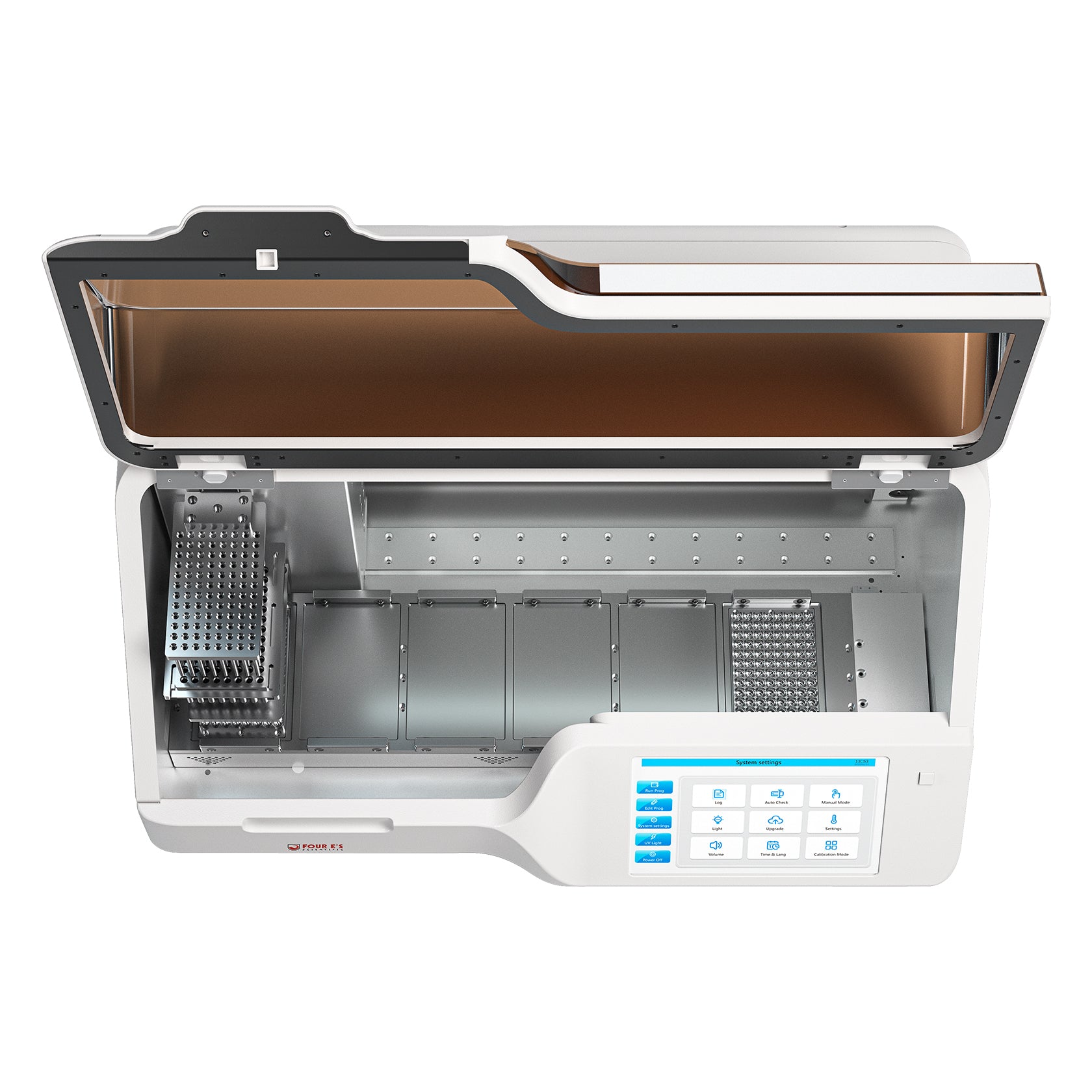

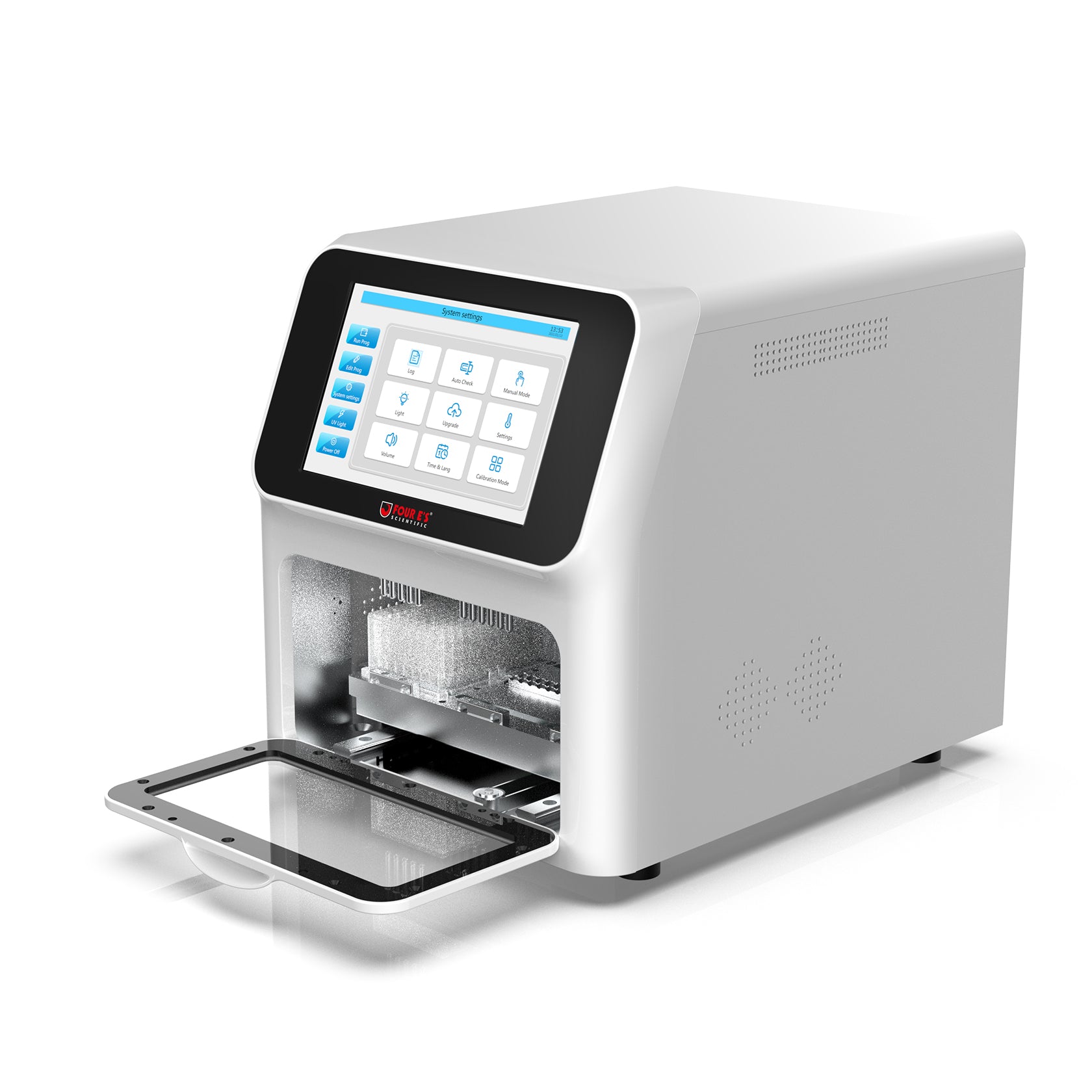

Prepare the samples for extraction and load them onto the 96-well plate. Place the plate into the extractor and close the safety door.
Set the purification parameters according to specific protocol the UV disinfection lamp will eliminate any risk of cross-contamination.
Advanced stirring technology allows for effective mixing of samples with high viscosity, ensuring thorough extraction with multiple heating modules for lysis and elution.
At 4E's, we ensure quality by implementing rigorous testing and inspection protocols on our products, which allows us to deliver reliable laboratory equipment to our customers. Our knowledgeable and responsive support team provides excellent customer assistance, ensuring that our customers receive the best possible experience when working with us.
Customers
Answered calls
Emails answered
| Model | NAE100196 |
| Sample Quantity | 1-96 |
| Plate Type | 96-well deep-well plate |
| Reagent Type | Magnetic bead-based open-source reagents |
| Heating Temp | Room Temp.~ 100℃ |
| Magnetic Bead Recovery Rate | 96% |
| Working Noise | ＜50dB |
| Data Storage Capacity | ＞500 programs |
| Display | 10-inch color touch screen |
| Contamination Control | UV light |
| Weight | 35KG |
| Volume Capacity | 50-1000μL |
| Plate Quantity | 6 |
| Processing Time | 20min-40min/run |
| Program management | create, edit,and delete options available |
| Mixing Intensities | Adjustable: 8 Levels |
| Inter-well Purification Variation | CV＜5% |
| Dimensions | 700*475*370mm |
| Power Supply | 200-240V, 100-120V; 50/60 Hz |
| Extension ports | 2 USB port, 1 Ethernet ports |

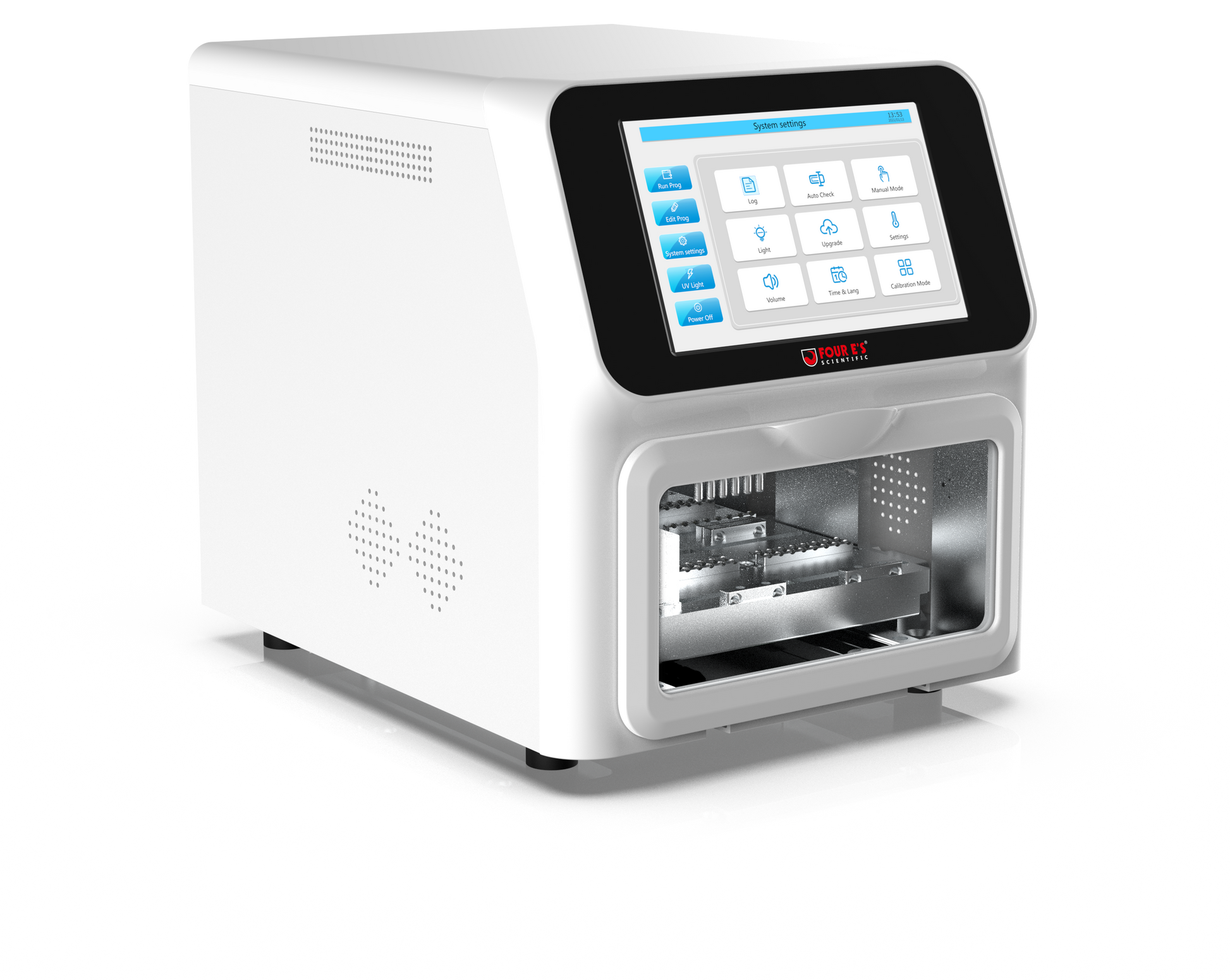

Our Nucleic Acid Extractor is capable of processing up to 96 samples at once, making it ideal for labs with high throughput workflows.
The extractor's stirring technology allows for effective mixing of samples with high viscosity, ensuring thorough extraction.
With a closed system that prevents aerosols and cross-contamination, a built-in UV disinfection lamp, and an automatic safety door, it is designed with safety in mind.
Our Nucleic Acid Extractor is capable of processing up to 96 samples at once, making it ideal for labs with high throughput workflows.
The extractor's stirring technology allows for effective mixing of samples with high viscosity, ensuring thorough extraction.
With a closed system that prevents aerosols and cross-contamination, a built-in UV disinfection lamp, and an automatic safety door, it is designed with safety in mind.

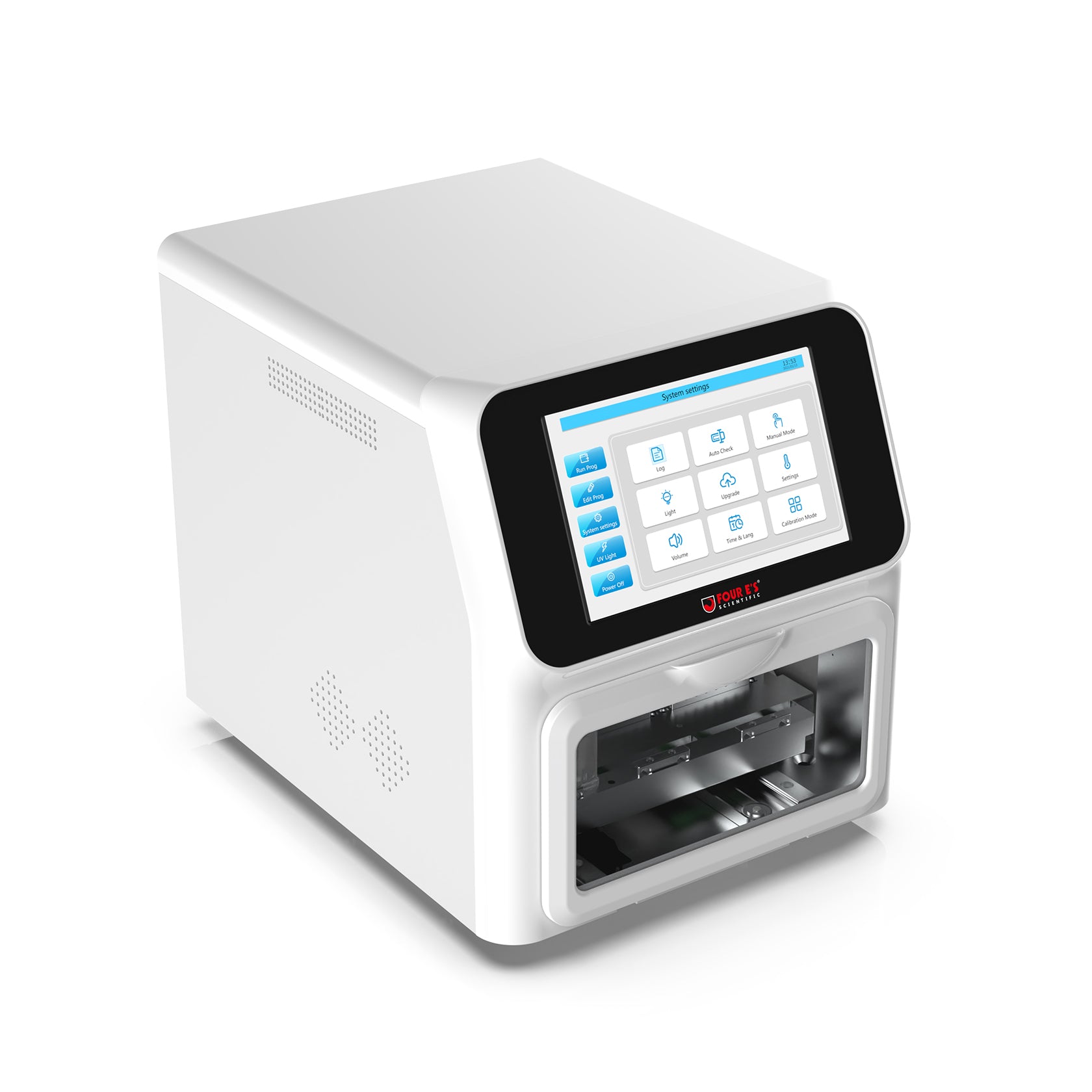

The extractor features a 10-inch color touch screen with a user-friendly interface that allows users to easily set purification parameters. This feature is particularly important for users who are not familiar with the system and helps to reduce the likelihood of errors during the extraction process.

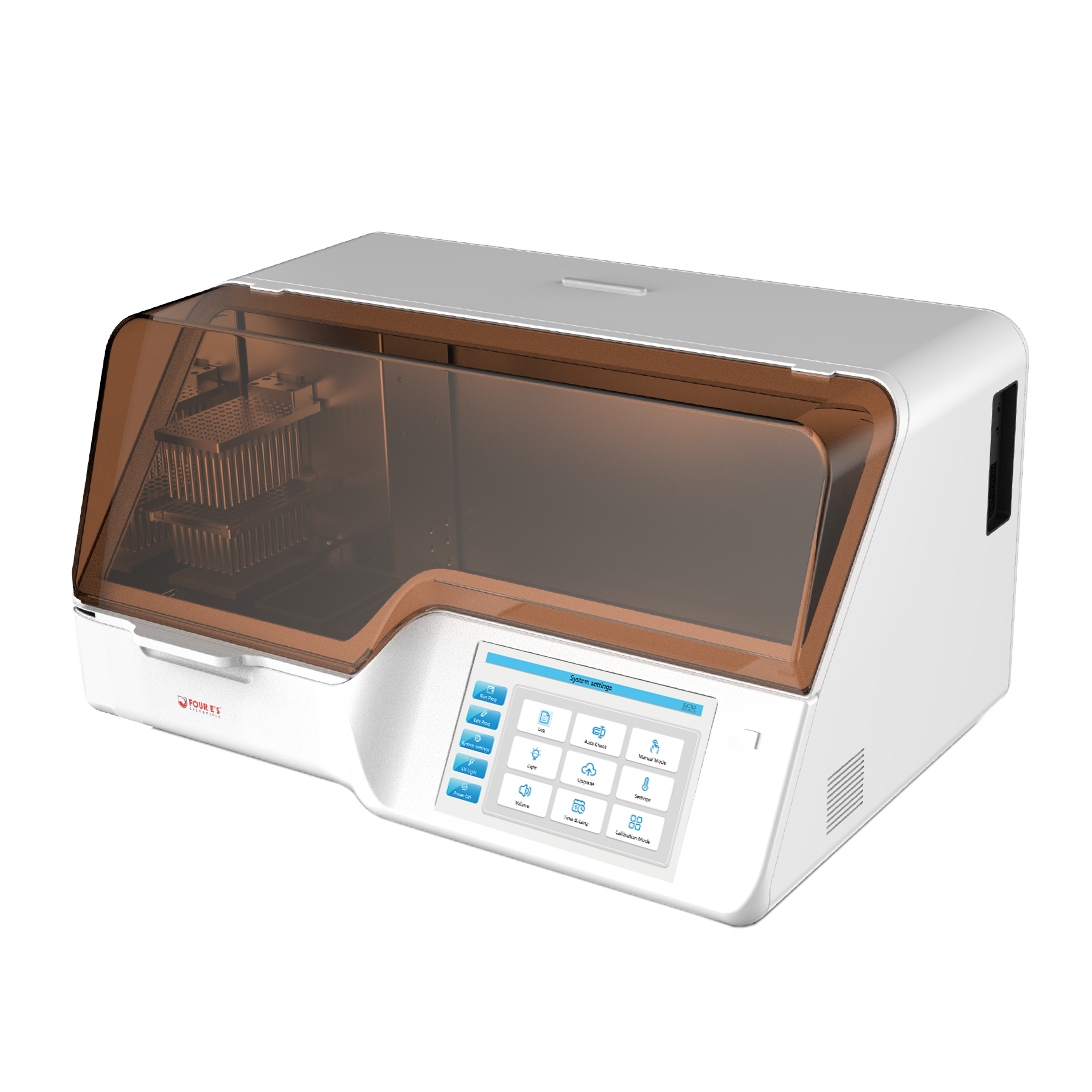

The 4E's P4M Nucleic Acid Extractor 96 - NAE100196 features multiple heating modules with individual heating controls to ensure accurate temperatures for lysis and elution, crucial for reliable extraction. This feature helps to ensure that the extracted nucleic acid is of high quality and suitable for downstream applications.
The extractor has an auto-check feature that confirms the correct positioning of the sleeve, rod, and well plate before each run. This feature helps to eliminate errors due to omission or interference, ensuring the accuracy and reliability of the extraction process.
