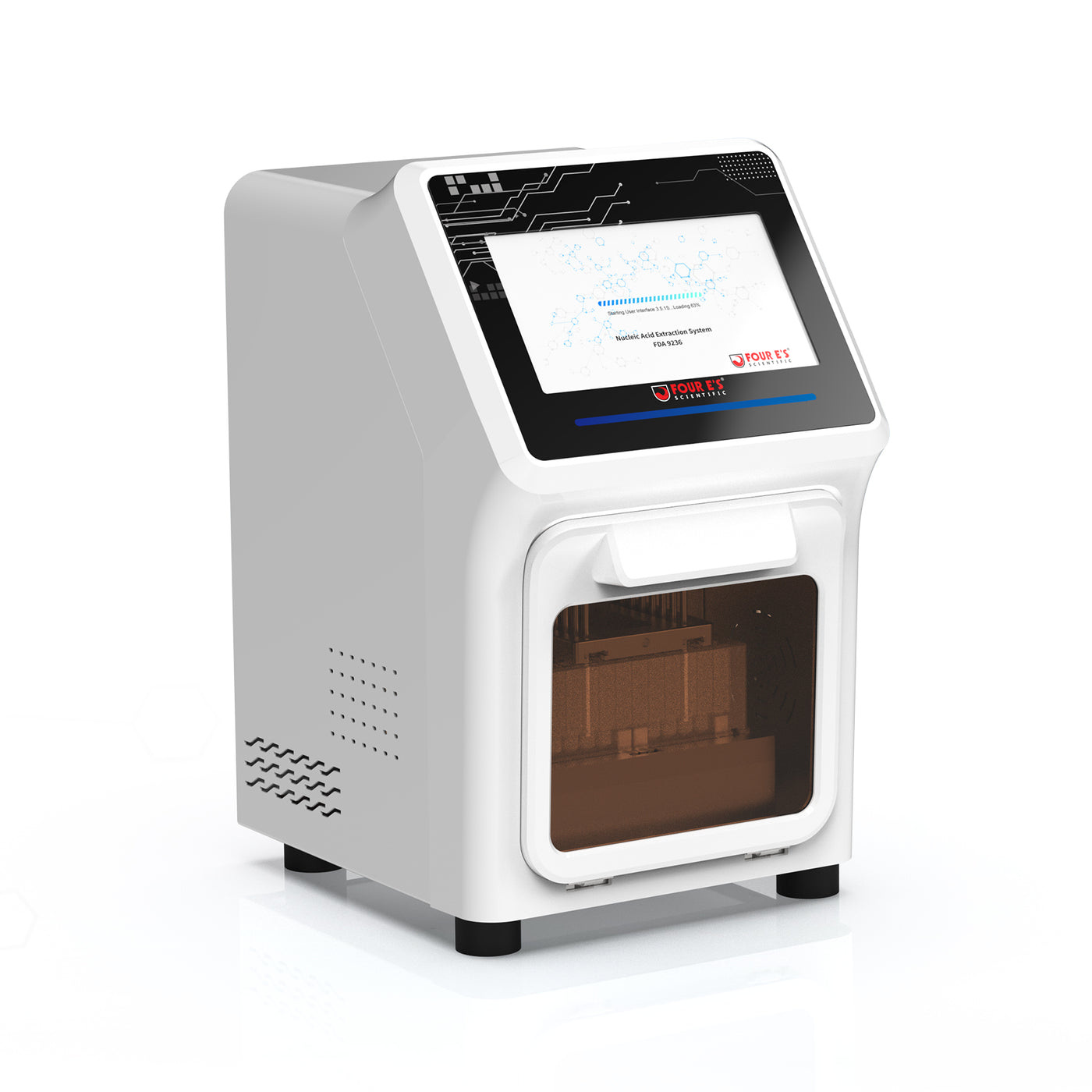

MultiEX 016 is an automated nucleic acid extraction and purification system which can process up to 16 samples per run. Utilizing Magnetic Bead Separation technology, the Nucleic Acid Extractor has the capability of extracting and purifying nucleic acids from a variety of biological samples, such as whole blood, viruses, tissues, plants, animals, fungi, bacteria, cultured cells, swabs, feces, blood cards, etc.
Couldn't load pickup availability
Prepare samples by adding lysis buffer and bead solution as appropriate to sample and homogenize it into the 96-well plate.
Using the touchscreen interface, program the incubation temperature, duration, and agitation speed. The extractor will automatically with extraction, including magnetic bead capture, washing, and elution.
Once extraction is complete, the system will dispense purified nucleic acid into a clean, new 96-well plate, ready for downstream analysis.
At 4E's, we ensure quality by implementing rigorous testing and inspection protocols on our products, which allows us to deliver reliable laboratory equipment to our customers. Our knowledgeable and responsive support team provides excellent customer assistance, ensuring that our customers receive the best possible experience when working with us.
Customers
Answered calls
Emails answered
| Model | MultiEX 016 |
| Processing volume | 50-1000ul |
| Throughput | 1-16 samples |
| Plate quantity | 1 |
| Plate type | 96-Deep Well Plate (conical/round bottom) |
| Processing time | 20min-40min/run (depending on reagent types and volumes) |
| Reagent type | Magnetic bead-based reagent kits (open system) |
| Program management | Create&Edit and Delete options available |
| Heating temperature | Room temperature~125℃ |
| Temperature accuracy | 1.5℃ |
| Magnetic beads recovery rate | 96% |
| Inter-well purification variance | CV＜5% |
| Noise | ＜55db |
| Mixing intensities | Adjustable: 8 Levels |
| Data storage capacity | ＞500 programs |
| Dimension | 210mm*250mm*315mm |
| Display | 7-inch color touchscreen |
| Lighting | YES |
| UV sterilization | YES |
| Power supply | 200-240V，100-120V 50/60Hz(can be powered by a 24V，5A battery) |
| Weight | 9KG |
| Extension ports | 2 USB ports |
MultiEX 016 can process up to 16 samples in a single run, allowing for high-throughput extraction of nucleic acid.
The use of magnetic beads allows for efficient and selective capture of nucleic acid, resulting in high yields of pure DNA or RNA.
The touchscreen interface is easy to navigate and allows for quick and simple programming of extraction parameters.
MultiEX 016 can process up to 16 samples in a single run, allowing for high-throughput extraction of nucleic acid.
The use of magnetic beads allows for efficient and selective capture of nucleic acid, resulting in high yields of pure DNA or RNA.
The touchscreen interface is easy to navigate and allows for quick and simple programming of extraction parameters.
The system includes multiple heating modules with individual temperature control to ensure optimal temperature accuracy during lysis and elution steps. This allows for precise temperature control and eliminates the risk of overheating or underheating during the extraction process, which can lead to degradation of nucleic acid and poor results.
The MultiEX 016 is fully automated, reducing the need for manual intervention and minimizing the risk of contamination. This allows for reliable and reproducible results, even when processing large numbers of samples. The system also has an auto-check function that ensures the correct positioning of the 96-well plate and magnetic rods, further reducing the risk of errors.
The MultiEX 016 has a small footprint, making it ideal for use in laboratories with limited bench space. The system is also easy to set up and use, requiring minimal maintenance and no special infrastructure or installation. Its compact design and ease of use make it an attractive option for labs with limited resources or space.
