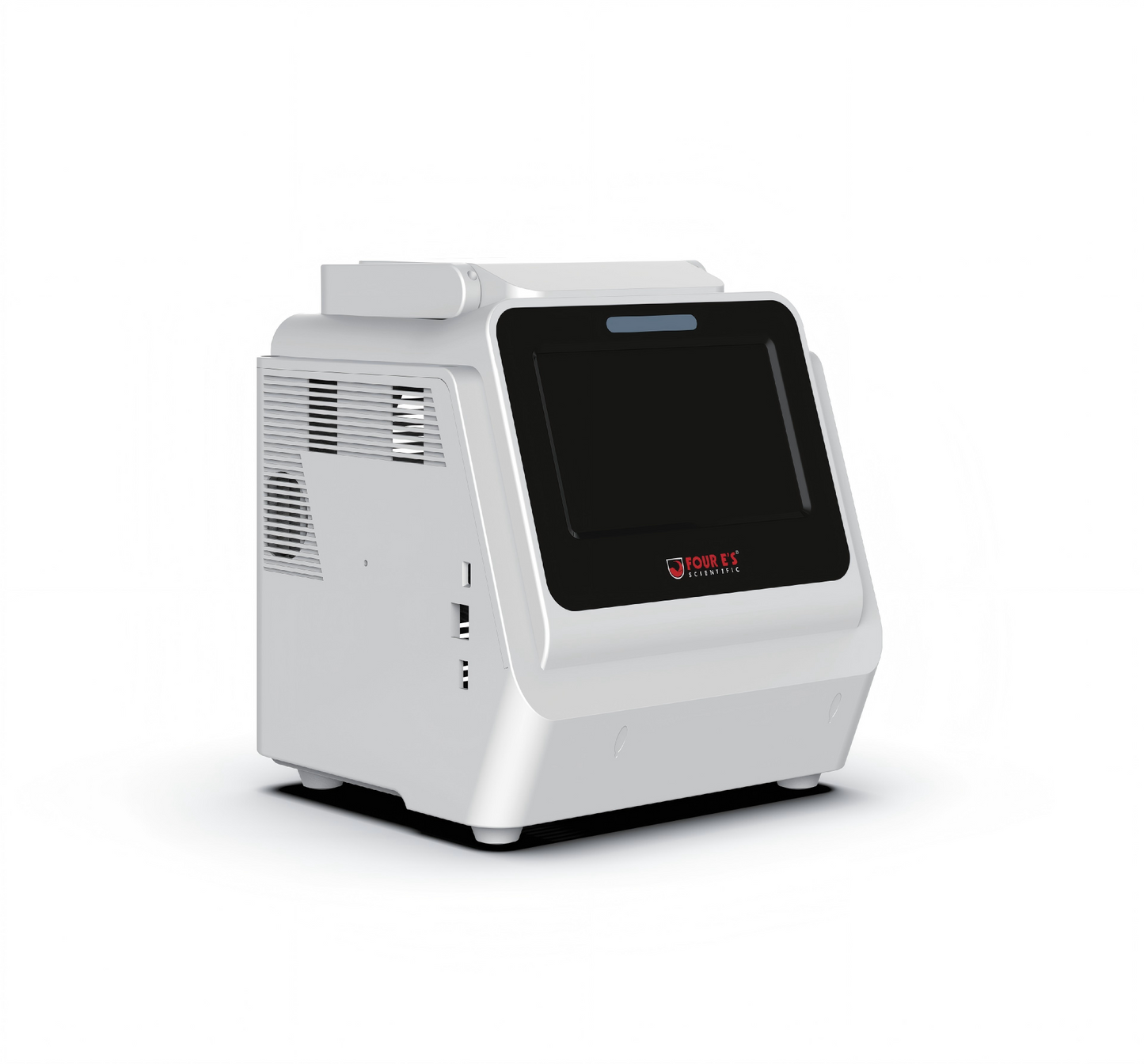

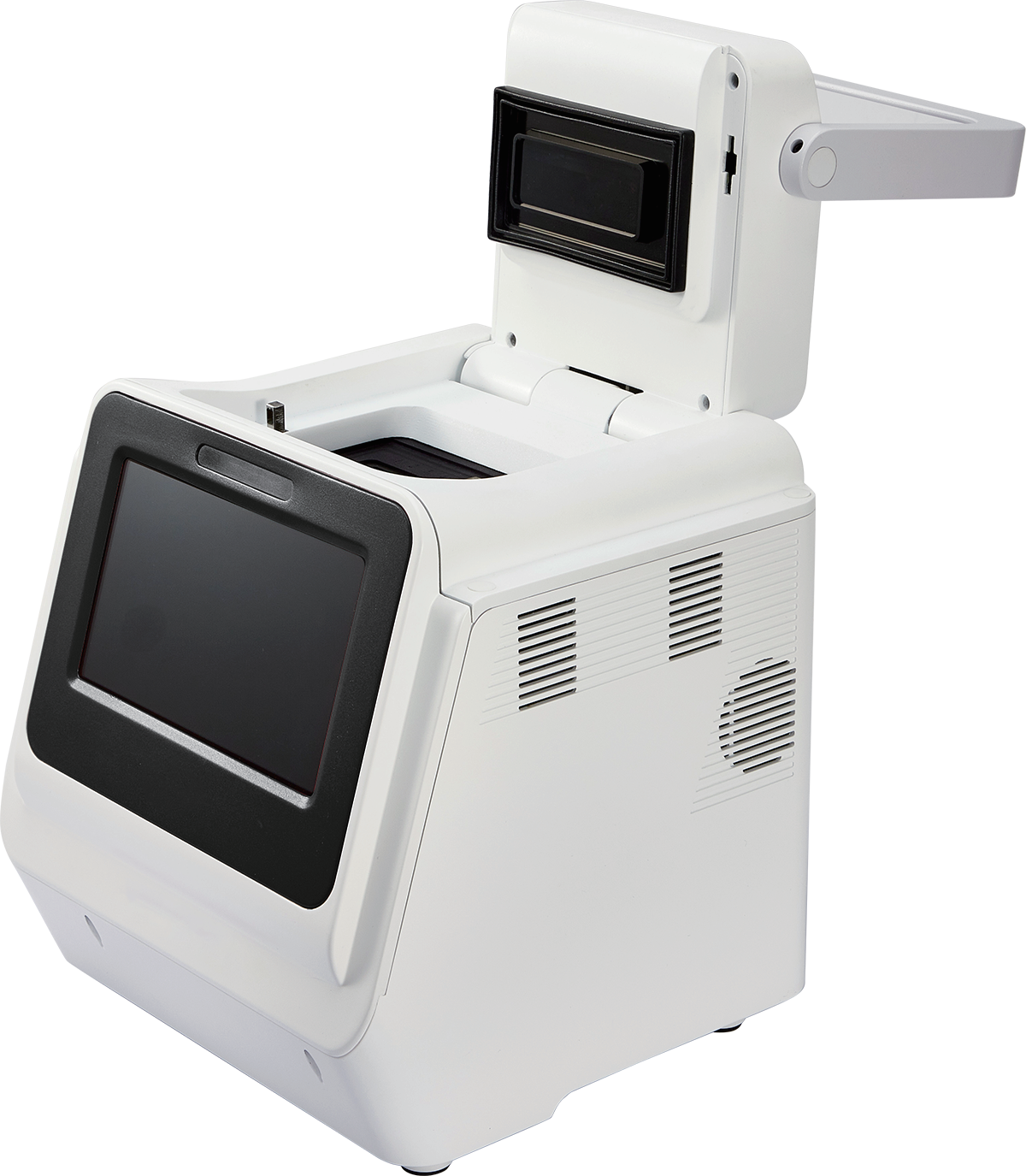

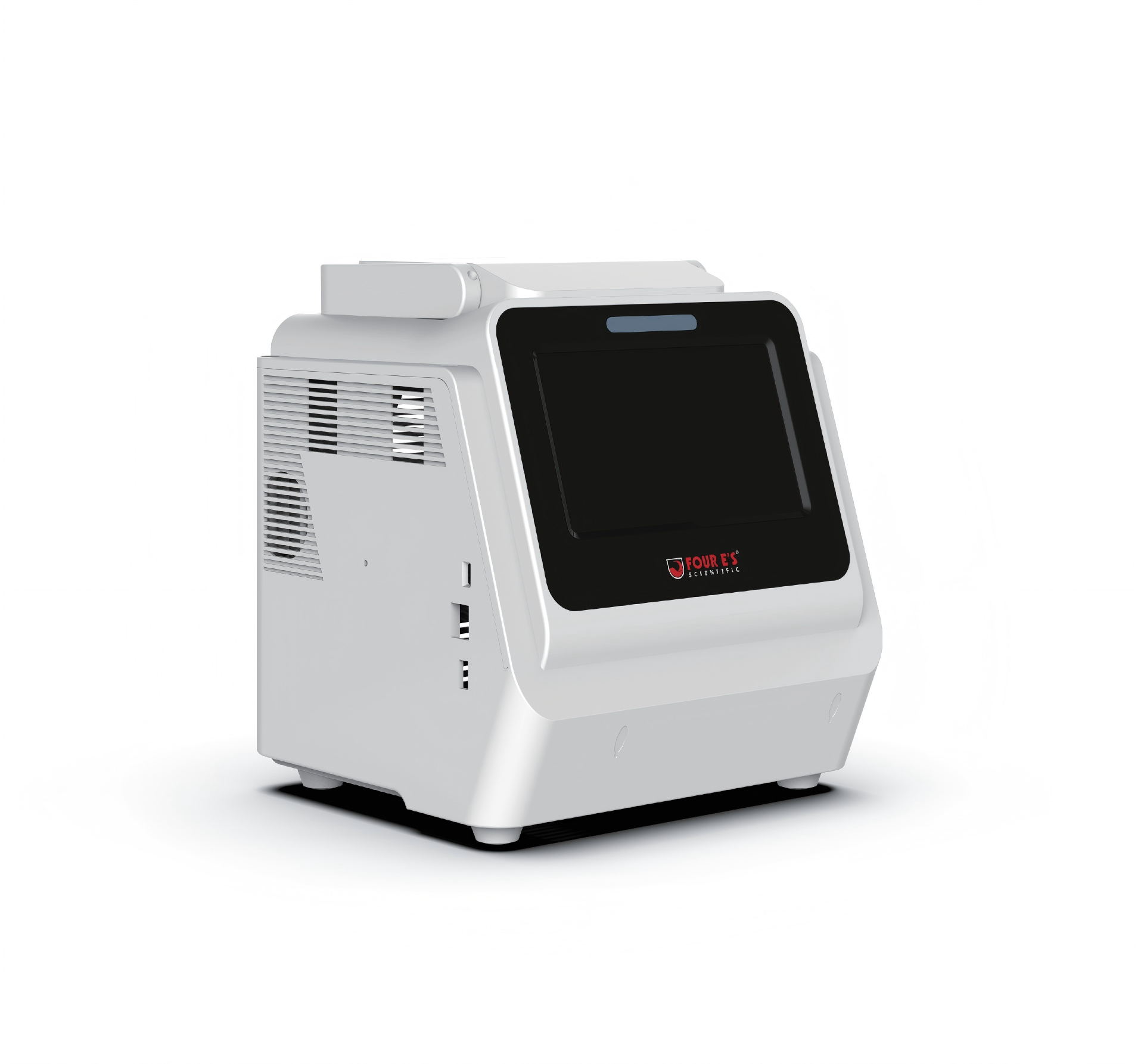

Real-Time PCR T1604 (16-wells)
In Stock: 0
T1604 Real-Time PCR System is a portable fluorescence quantitative PCR instrument with four channels detection and twin 8-well design. The product comes with a 7-inch-capacitive color touch screen and built-in software which can set-up experiments and analyze experimental data. It also comes with windows PC software that allows you to run and analyze qPCR data from personal computer. The custom-made Peltier elements and highly sensitive photoelectric detectors ensure superior performance and accurate results.
Couldn't load pickup availability
Advanced Engineering for Superior Performance
The T1604 Real-Time PCR System is engineered for precision and flexibility, integrating several key technological advancements. Its optical system features four detection channels for the simultaneous analysis of multiple targets and is equipped with highly sensitive photoelectric detectors to ensure precise and reliable fluorescence capture. The instrument utilizes a unique twin 8-well (2x8) design, providing exceptional flexibility for smaller batch runs or multiple assays.
Rapid Analysis
Touch Screen
User-Friendly
-
- Specifications
-
- Features
-
- Downloads
| Model | T1604 |
| Capacity | 16 well (2 x 8 well) |
| Consumable | Clear 0.2ml PCR tube/Transparent 8-tube strips |
| Reaction Volume | 10-100 micro liter |
| Temperature control technology | Peltier Module |
| Temperature Range | Room temperature to 99℃ |
| MAX. Ramp Rate | ≥12℃/s |
| Temperature fluctuation | ±0.2℃ |
| Uniformity | ±0.4℃ |
| Accuracy | ±0.2℃ |
| Hot Lid Temperature | 105℃ |
| Temperature Control | Block Mode |
| Excitation | High power，long-life LED |
| Detection | Photodiode |
| Fluorescence Channel | 2/4 |
| Excitation wavelength | Channel1：450-490nm；Channel2：500-535nm；Channel3：555-585nm；Channel4：620-650nm |
| Emission wavelength | Channel1：515-530nm；Channel2：560-580nm；Channel3：610-650nm；Channel4：675-730nm； |
| Factory Calibrated Dyes | F1: FAM; F2: VIC/HEX; F3: ROX; F4: CY5 |
| Dynamic Range | 1-10⁹ |
| Sensitivity | 2x change |
| Analysis Modules | quantitative/qualitative analysis，Melting curve |
| Data Export Formats | Excel or pdf |
| Communication Mode | WiFi/USB |
| Input Option | Touch screen input，Compatible with Barcode reader |
| Dimension (LxWxH) | 373 x 330 x 145 mm |
| Net Weight | About 7 kg |
| Input Voltage | 110~220V |
| Power | 500W |
Features
-
●
Features four detection channels, allowing for the simultaneous analysis of multiple targets in a single run.
-
●
Equipped with highly sensitive photoelectric detectors to ensure precise and reliable fluorescence capture.
-
●
Utilizes a unique twin 8-well (2x8) design, providing flexibility for smaller batch runs or multiple assays.
-
●
Incorporates custom-made Peltier elements for rapid and uniform temperature control, which is critical for accurate amplification and superior system performance.
-
●
Its compact and integrated design makes it a truly portable system, ideal for use outside a traditional lab setting.
-
●
Integrated Touch Screen: Operate the instrument directly from its 7-inch capacitive color touch screen.
-
●
The intuitive, built-in software allows for easy experiment setup and direct data analysis on the device itself.
-
●
PC Software Compatibility: Includes dedicated Windows PC software for extended functionality.
-
●
Users can control experiments, monitor runs in real-time, and perform in-depth data analysis from their personal computer.
T1604 Datasheet
4E’S Vs Other Brands
4E’S
Brand X
Brand Y
PC software
7-inch Touchscreen
