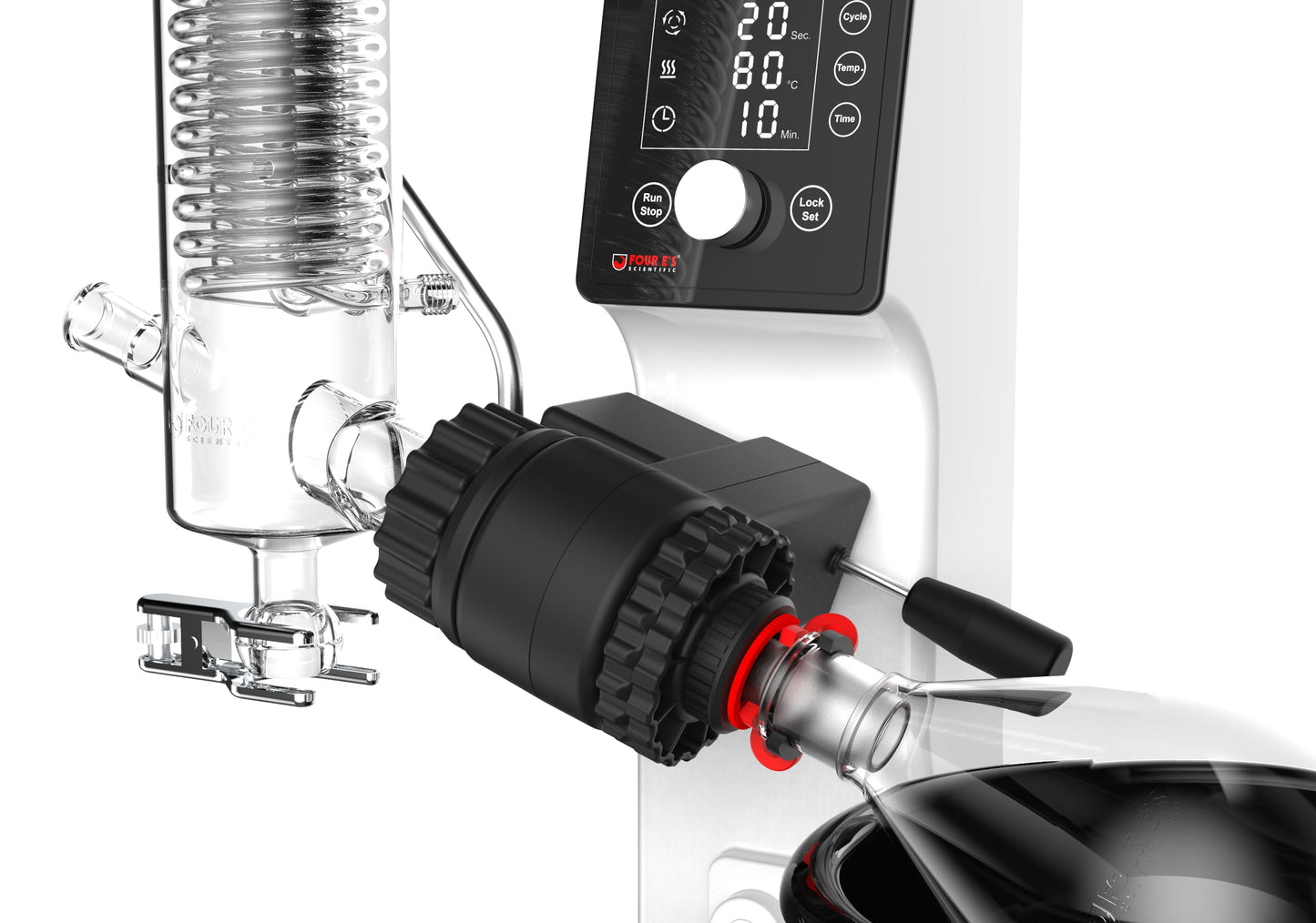

Rotary Evaporator - RV131

In Stock: -2

Regular price $2,400.00
Regular price Sale price $2,400.00
Sale Contact Us
Product Information Product code : RV131 The 4E's Rotary Evaporator RV131 is a reliable and efficient laboratory instrument used for the gentle removal of solvents from samples by evaporation. This rotovap operates by reducing the pressure and temperature of a sample containing a solvent to facilitate rapid evaporation. The RV131 model is equipped with a digital display for temperature and rotation speed, making it easy to operate and monitor. It also features a safety mechanism that prevents overheating and ensures the safety of the user and the instrument.

How it works

Prep & Fill

Fill sample flask with solution and insert flask into rotary evaporator.

Vacuum, Speed, and Temperature

To properly evaporate solution, adjust pressure of vacuum pump, set rotation speed, and set desired temperature of heating bath.

Heat & Collect

The solvent will begin to evaporate and collect in the condenser. As it collects, use another container to collect condensed solvent.

Rotary Evaporator -  RV131

We’re Serving Laboratory Market Worldwide

At 4E's, we ensure quality by implementing rigorous testing and inspection protocols on our products, which allows us to deliver reliable laboratory equipment to our customers. Our knowledgeable and responsive support team provides excellent customer assistance, ensuring that our customers receive the best possible experience when working with us.

10,000+

Customers

3000+

Answered calls

5000+

Emails answered

Specification

Model RV131
Input Voltage AC 100V-240V
Frequency 50/60Hz
Motor Type Brushless DC Motor
Max. Input Power of - Main Unit [W] 48W
Temperature Range [℃] (Water) Room temp.+5℃~90℃(Water)
Temperature Range [℃] (Oil) Room temp.+5℃~180℃(Oil)
Control Accuracy [℃] Water±1.5℃, Oil ±3℃
Rotation Speed[rpm] 20 – 320 RPM
Speed Control/Increment[rpm] Step-less speed Control. Increment: 1RPM
Clockwise and Anti-clockwise Yes
Rotation Time Interval 5-999 s
Time Setting Range 1-999 min
Tilt Angle of Evaporation flask 0-360°
Lifting method Manual
Stroke Displacement [mm] 180mm
Vacuum Degree Max. 4mbar(3mmHg)
Heating Bath Capacity 5L
Permissible Ambient Temperature 5-40℃
Permissible Relative Humility 80%
Safety First
Efficient Evaporation
Easy to Clean

Safety First

The RV131 has a safety mechanism that prevents overheating and ensures the safety of the user and instrument.

Efficient Evaporation

The rotary evaporator facilitates efficient and gentle evaporation of solvents, with minimal loss of the sample being evaporated.

Easy to Clean

The RV131 model is easy to disassemble and clean, making it simple to maintain and keep in good working condition.

Safety First Efficient Evaporation Easy to Clean
Safety First Safety First
Efficient Evaporation Efficient Evaporation
Easy to Clean Easy to Clean

Safety First

The RV131 has a safety mechanism that prevents overheating and ensures the safety of the user and instrument.

Efficient Evaporation

The rotary evaporator facilitates efficient and gentle evaporation of solvents, with minimal loss of the sample being evaporated.

Easy to Clean

The RV131 model is easy to disassemble and clean, making it simple to maintain and keep in good working condition.

Safety First Efficient Evaporation Easy to Clean

User-friendly and User-proof

The RV131 model comes with a large LED display that makes it easy to set and monitor process parameters, such as rotation speed, heating temperature, operation time, and cycle times. The device also comes with mistouch prevention lock, which prevents accidental changes to the process parameters during collection.

Optimized features

The high elastic graphite filled PTFE seal and compression spring bring excellent sealing and high-temperature, corrosion, and abrasion resistance. Along with the Brushless DC motor with a rotation speed range of 20 to 320 rpm, the RV131 facilitates gentle and efficient evaporation of solvents.

Double-Layer Vertical Condenser

With a 1500cm² cooling surface, the double-layer design of the consider helps maximize efficiency of condensation process by optimizing vapor collection and facilitating higher sample recovery rates.

Frequently Asked Questions

Everything you need to know about product and billing. Can’t find the answer you are looking for? Please write your question to us at info@4Es-USA.com

What is the warranty on the RV131 model?

The RV131 model comes with a one-year warranty.

Can the RV131 model be used for continuous operation?

Yes, the RV131 model can be used for continuous operation, allowing for efficient and convenient solvent evaporation.

Does the RV131 model come with safety features?

Yes, the RV131 model comes with several safety features, including a PID temperature controller, overheat protection, dry-burning protection, and automatic power-off functions.

How long does it take to complete a typical evaporation process?

The time required to complete an evaporation process with the RV131 model can vary depending on factors such as the sample size, solvent type, and process parameters. However, in general, most evaporation processes can be completed within a few hours.
