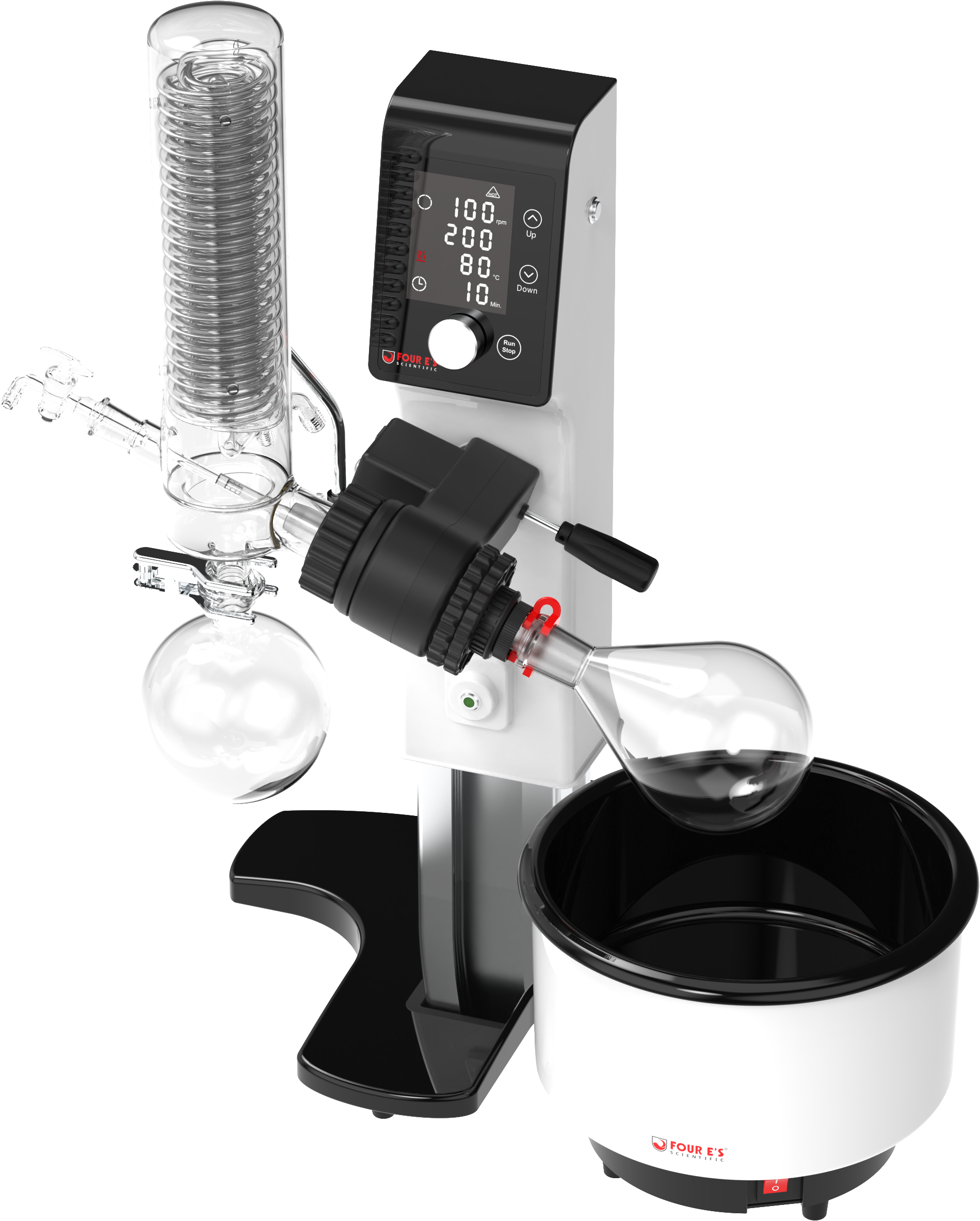

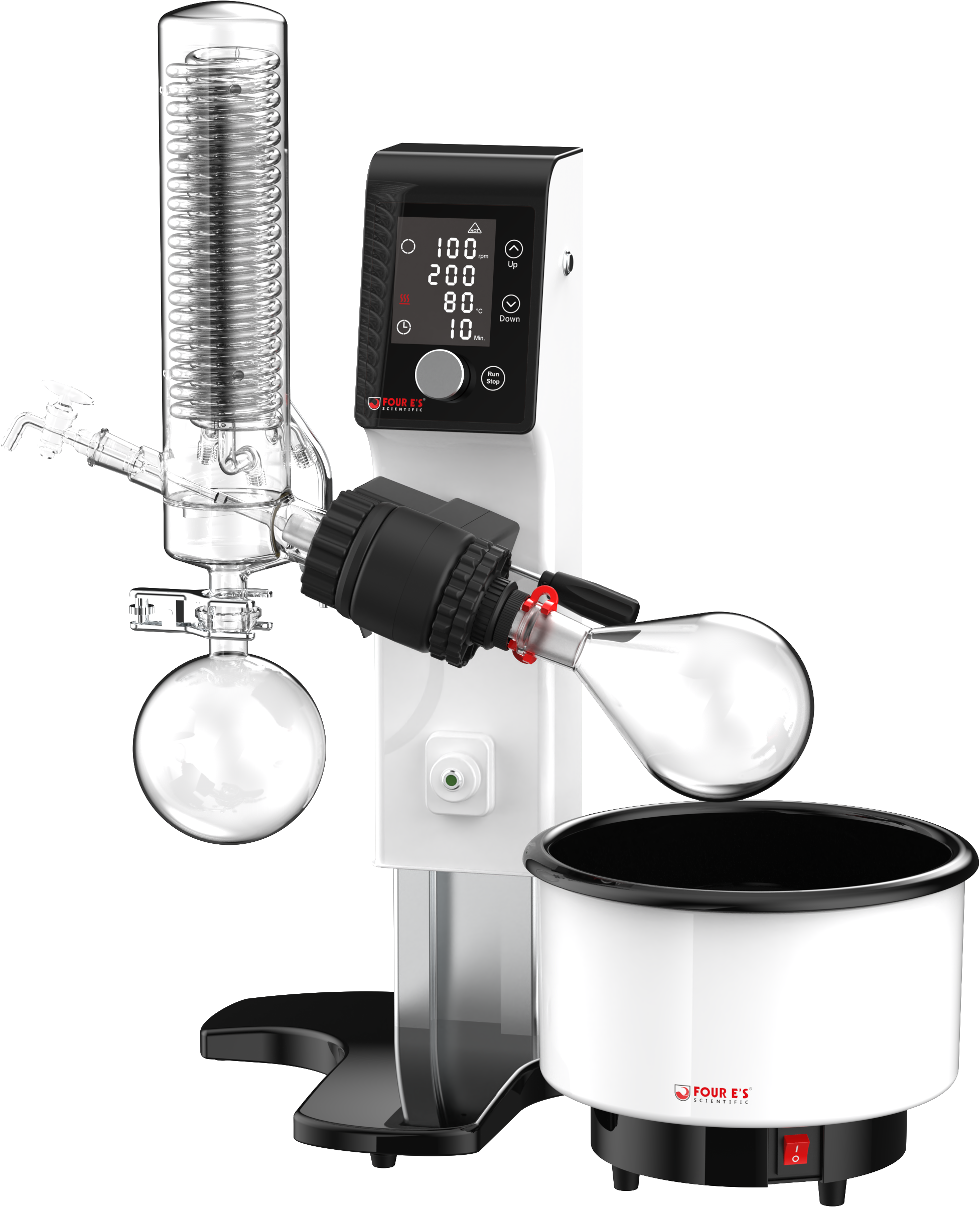

Rotary Evaporator with Electronic Lift - RV231
In Stock: 0
Couldn't load pickup availability
Intuitive Control and Monitoring
A large LED display allows for easy setting and real-time monitoring of process parameters. The touch keys combined with an adjustable control knob enable convenient adjustment of rotation speed, heating temperature, operation time, and cycle times. The multifunctional knob can be turned quickly for rapid parameter changes or slowly for precise fine-tuning, ensuring both efficiency and accuracy during operation.
Overheat Protection
Useful Settings and Functions
-
- Specifications
-
- Features
-
- Downloads
| Model | RV231 |
| Maximum evaporation flask size | 3L |
| Input Voltage，Frequency | AC 100V-240V，50/60Hz |
| Motor Type | Brushless DC Motor |
| Max. Input Power of - Main Unit | 48W |
| Heating Power | 1300W |
| Temperature Range | Room temp.+5°C~90°C（Water)，Room temp.+5°C~180°C（Oil) |
| Control Accuracy | Water±1.5°C，Oil ±3°C |
| Rotation Speed | 20 – 320 RPM |
| Speed Control/Increment | Stepless speed Control Increment: 1RPM |
| Time Setting Range | 1-999 min |
| Tilt Angle of Evaporation flask | 0-360° |
| Lifting method | Electronic |
| Stroke Displacement | 180mm |
| Vacuum Degree | Max. 4mbar（3mmHg） |
| Heating Bath Capacity | 5L |
| Display | LED |
| [DIN_EN60529] Protection Class | IP42 |
| Overload Protection | Yes |
| Over-temperature Protection | When the temperature of PT1000 temperaturesensor is 5°C more than the set temperature，the heating automatically shuts off |
| Permissible Ambient Temperature | 5-40°C |
| Permissible Relative Humility | 80% |
| Dimension (WxDxH) | Main Unit: 400x320x540mm; Heating Bath: 300x300x205mm |
| Weight (without glassware) | Main Unit: 8.6KG; Heating Bath: 3KG |
Features
-
●
Large LED display to easily set and monitor process parameters
-
●
The touch keys and adjustable knob let you easily set the Rotation speed, heating temperature, operation time, and cycle times.
-
●
The device also comes with a mistouch prevention lock to avoid changes through accidental touch.
-
●
The adjustment knob can be turned fast or slow to change parameters rapidly or accurately.
-
●
The 5L water-oil heating bath with heating temperature range of up to 180°C (oil).
-
●
The device comes with a Brushless DC motor with rotation speeds ranging from 20 to 320 rpm
-
●
Comes with PID temperature controller, overheat protection, dry-burning protection, and automatic power-off functions.
-
●
Double-layer vertical condenser with 1500cm² cooling surface for efficient vapor collection and sample recovery.
-
●
High elastic graphite filled PTFE seal and compression spring bring excellent sealing as well as high-temperature, corrosion, and abrasion resistances.
-
●
Ejection mechanism ensures easy removal of evaporating flask
RV231 User Manual
Powerful Performance and Advanced Safety
The device is equipped with a brushless DC motor offering a rotation speed range of 20 to 320 rpm for smooth and reliable operation. A PID temperature controller ensures precise heating control, while built-in overheat protection, dry-burning protection, and automatic power-off functions enhance operational safety. The double-layer vertical condenser, featuring a 1500 cm² cooling surface, enables efficient vapor condensation and improved sample recovery.
4E’S Vs Other Brands
Electronic Lift
Overheat Protection
Two Year Warranty
