UV Histology Printers / Microscope Slide and Tissue Cassette Printers
The UVP201001, Ultraviolet Laser Microscope Slide Printer, and the UVP202001, Ultraviolet Tissue Cassette Printer, represent the next generation of slide printers. These advanced and easy to use printers can print directly on slides or tissue cassettes without using ink or printer consumables. The ultra-fast laser can print text, symbols, and barcodes on slides or cassettes in under three seconds. The large 10-inch color touch screen allows for configuration of the print template and easy data entry. All Four E’s USA’s printers are LIMS and HIMS compatible for easy integration.
Next Generation Print Technology
Four E’s USA’s Microscope Slide Printer and Tissue Cassette Printers feature robust laser printing technology. Unlike ink and thermal transfer printers UV technology etches the sample information into the slide or the cassette with laser precision. This makes the information easy to read and it is not susceptible to smudging from solvents or mechanical abrasion. These long-life lasers are designed to operate service and consumable free for millions of prints, saving on time, money, and service calls. Print time per slide or cassette is an industry leading 3 seconds and the units are designed for continuous operation.
3 Second Print Time
No Ink Required
10” Color Touchscreen
Customizable Print Templates
|Type||Microscope Slide Printer||Tissue Cassette Printer|
|Pinter Type||Long Life UV Laser||Long Life UV Laser|
|Capacity||100 Slides (1 Removable Hopper)||600 Cassettes (6 x 100 Cassette Hoppers)|
|Removable Hopper||Yes ,1 Hopper||Yes, 6 Hoppers|
|Printing Capabilities||Text, Symbols, Barcodes, QR Code Multiple formats of Linear and 2D Barcodes||Text, Symbols, Barcodes, QR Code Multiple formats of Linear and 2D Barcodes|
|Print Speed and Consumables||< 3 seconds, no consumables required||< 3 seconds, no consumables required|
|Interface and Connections||10” Color Touch Screen, 2 x Ethernet, 4 x USB, 1 x VGAConnection Types 1 x COM, 1 x HDMI, Built-in Barcode Scanner||10” Color Touch Screen, 2 x Ethernet, 4 x USB, 1 x VGAConnection Types 1 x COM, 1 x HDMI, Built-in Barcode Scanner|
|Output Storage Solutions||Single, Small Batch, Large Batch||Single, Small Batch, Large Batch|
|LIMS/HIMS Compatible||Yes, all systems||Yes, all systems|
|Operation Modes||Standalone, Batch Printing Software, Connected to Cassette Printer, LIMS/HIMS Controlled||Standalone, Batch Printing Software, Connected to Cassette Printer, LIMS/HIMS Controlled|
Next generation Ultraviolet Laser Print Technology for quick andconsumable-free printing
Large 10-inch color touch screen for data entry and print configuration
Quick and quiet print capabilities with slides and cassettes being printed in under 3seconds
Removable feed and dispensing trays for optimizing lab workflows
Built-in scanner for quick reading of barcodes and data entry
Safety sensors to detect slide tray attachment and when the slide tray isfilled
Easily build and configure new print templates to suit your laboratorysample needs
Connects to most LIMS and HIMS systems to print directly from thenetwork
Includes software for bulk importing of slide or cassette information for printing
Designed to operate independently or in conjunction with Four E’s USA Printers or Information Management Systems
UV printing is not susceptible to smudging from solvents, the print is physically etched into the slide

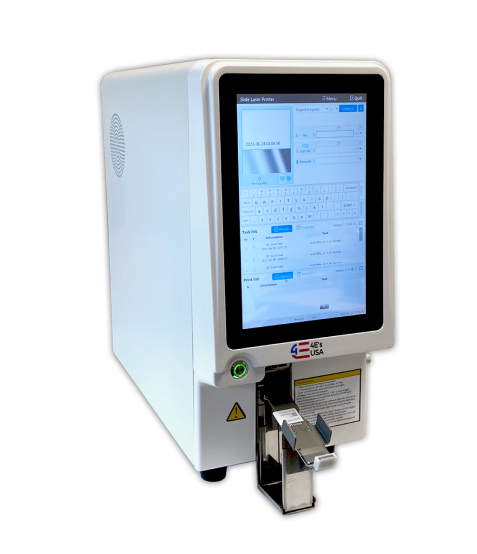

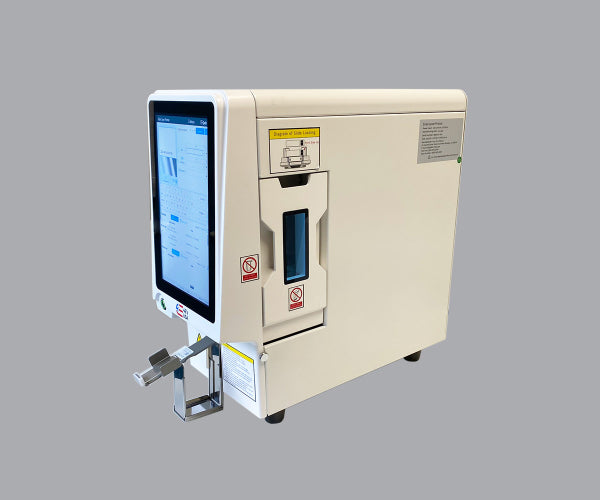

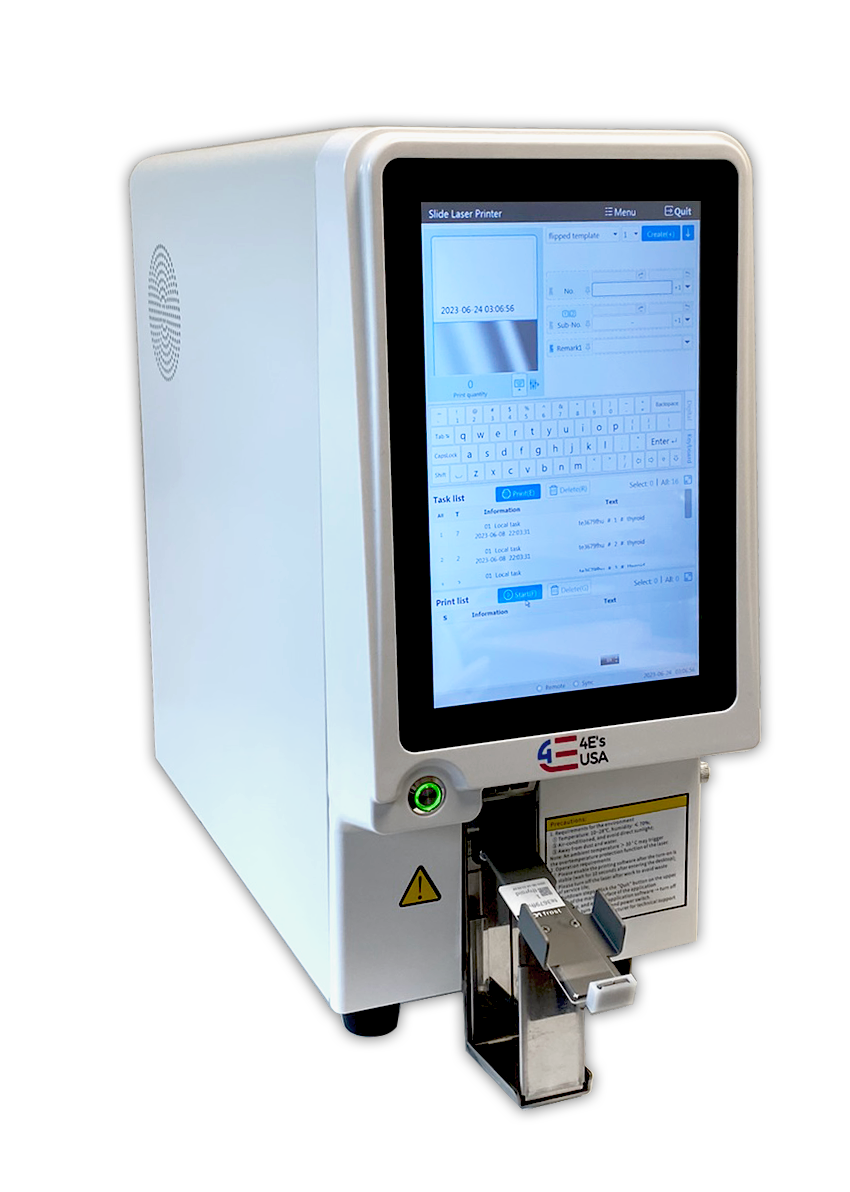

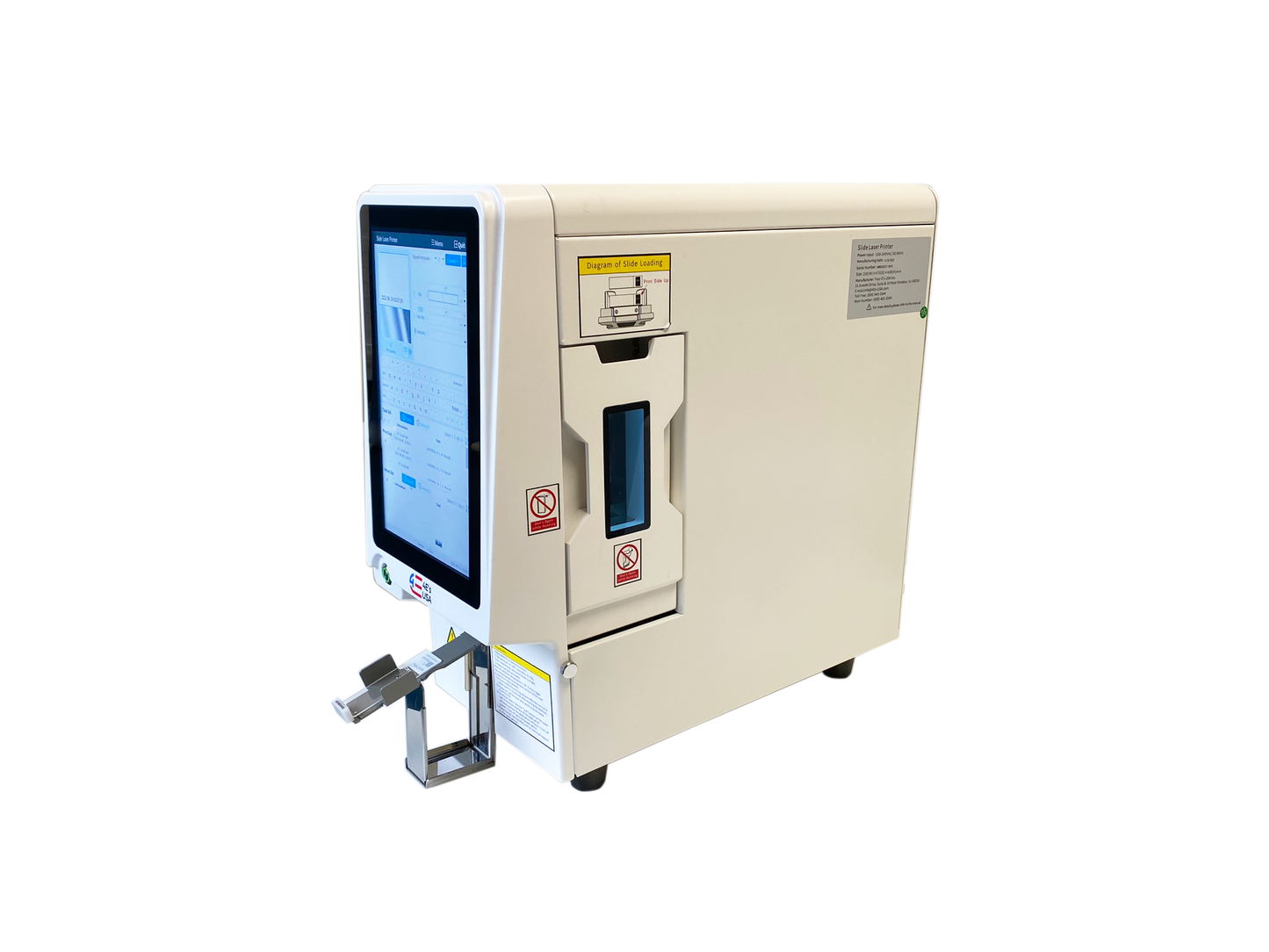

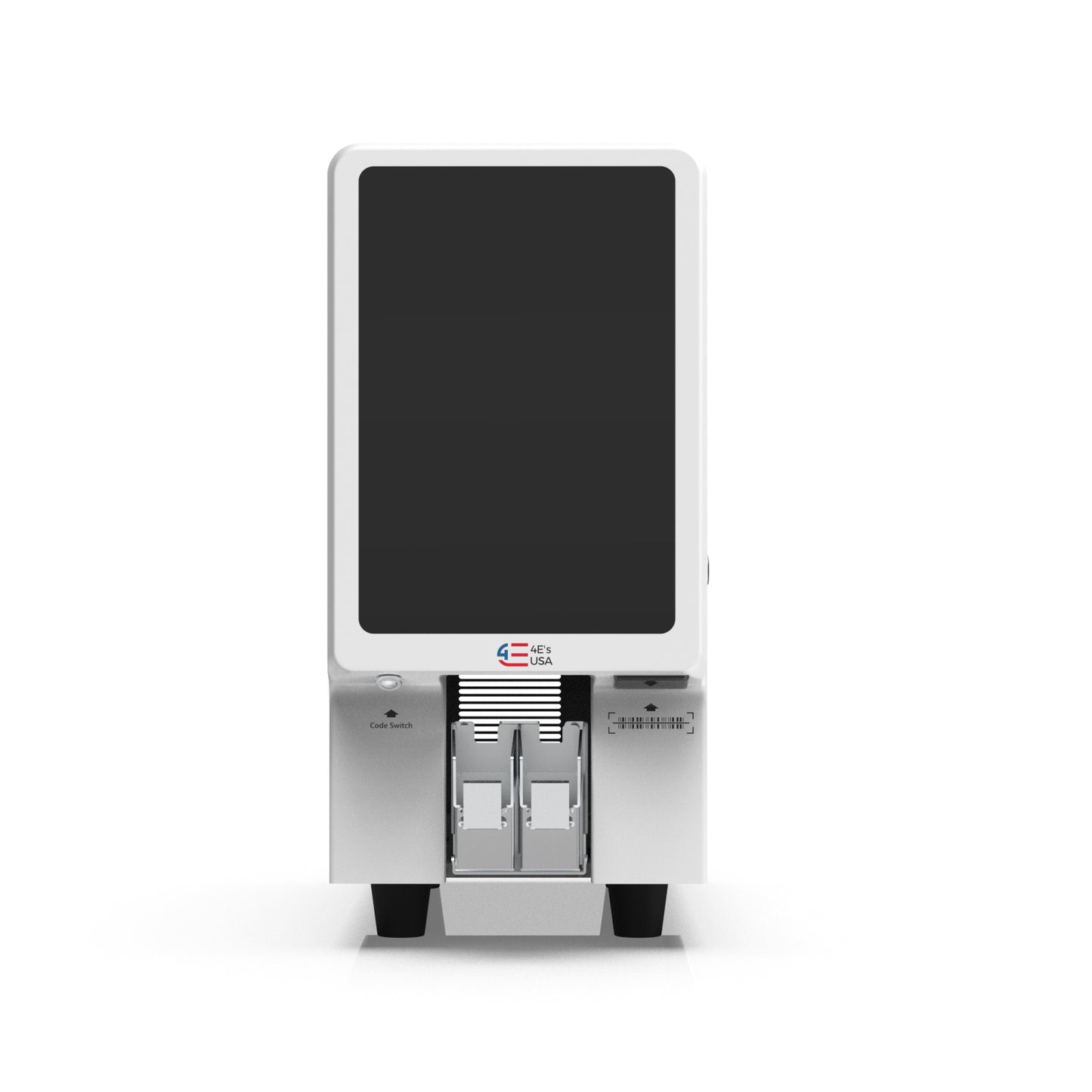

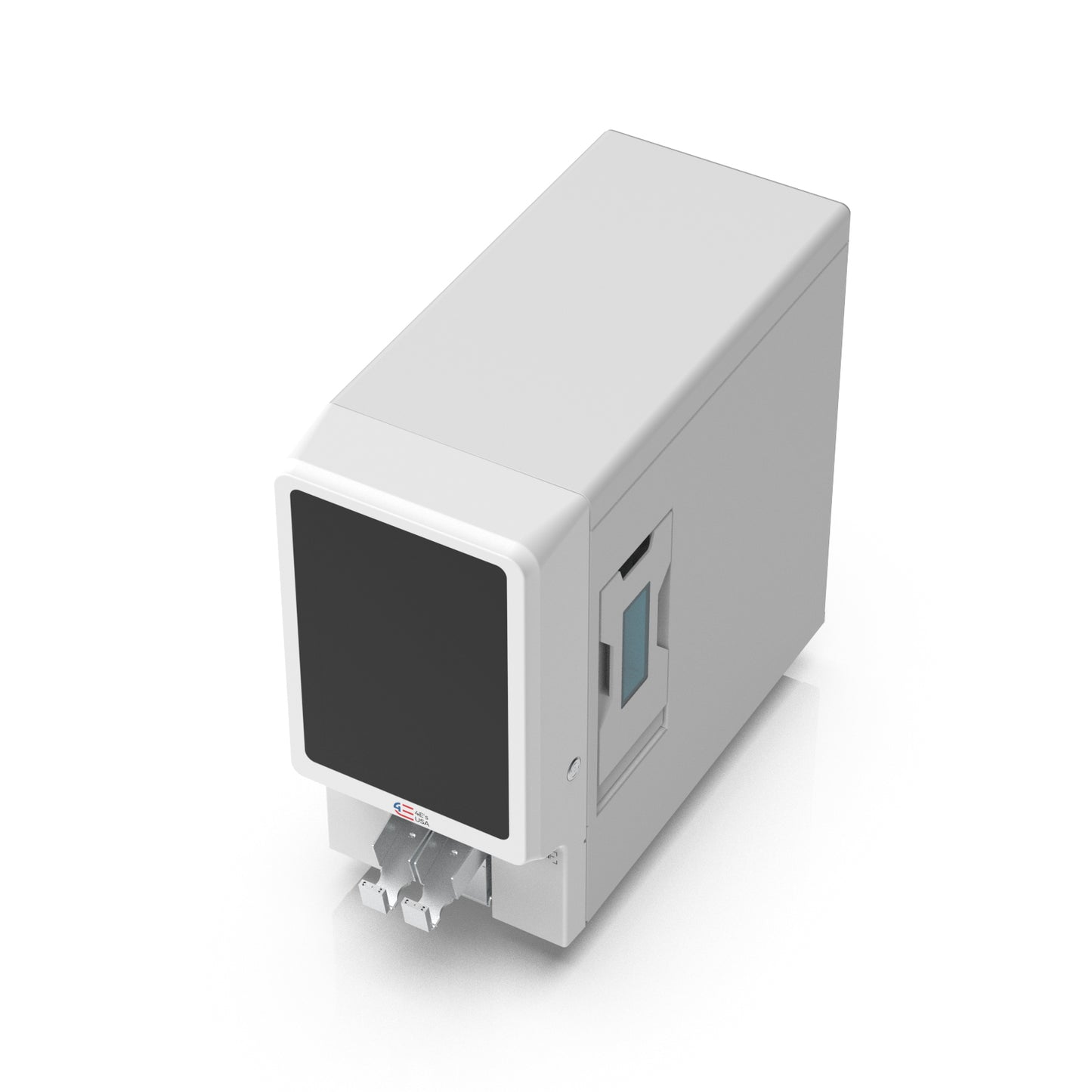

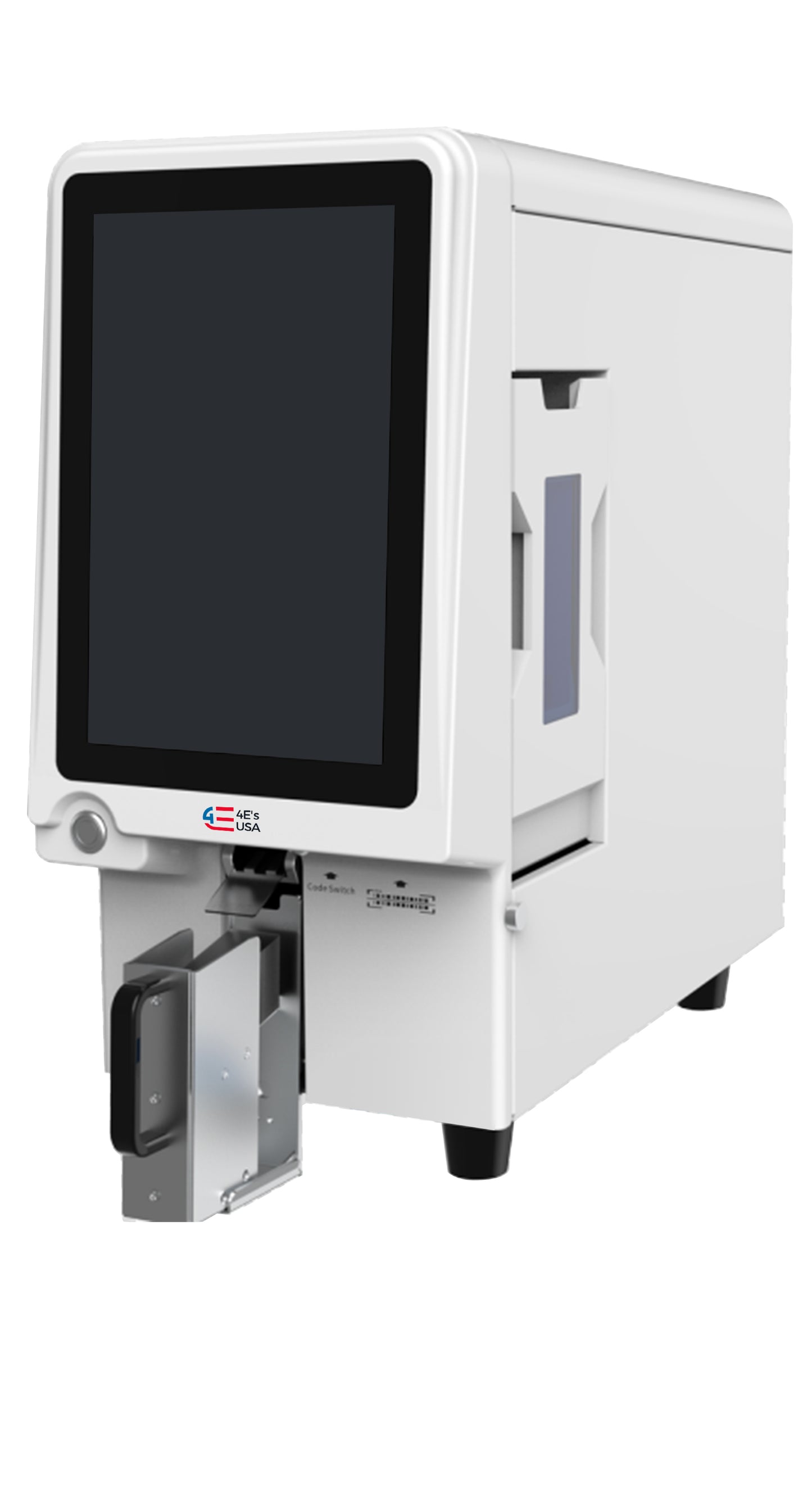

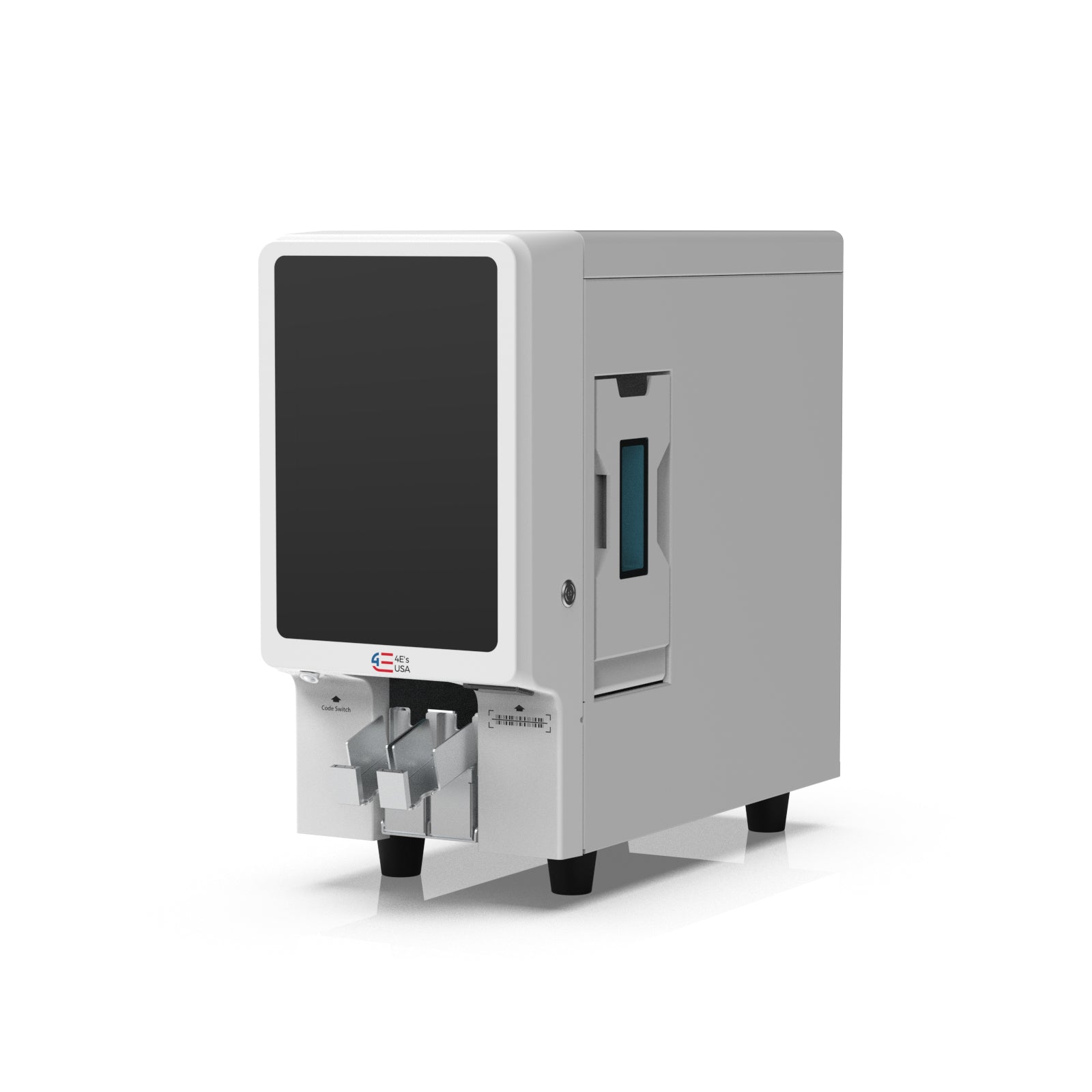

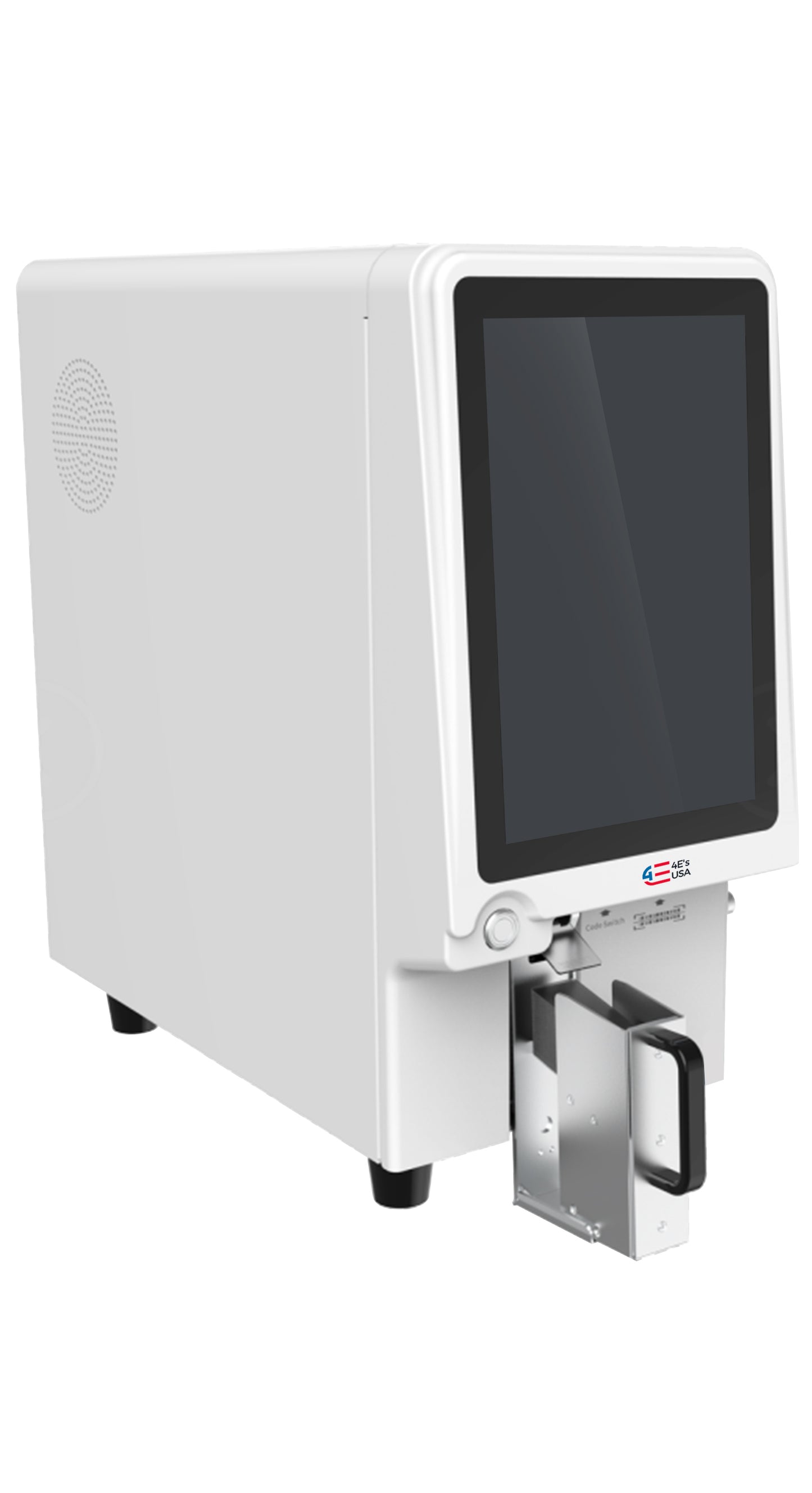

Four Es UV Microscope Slide Printer

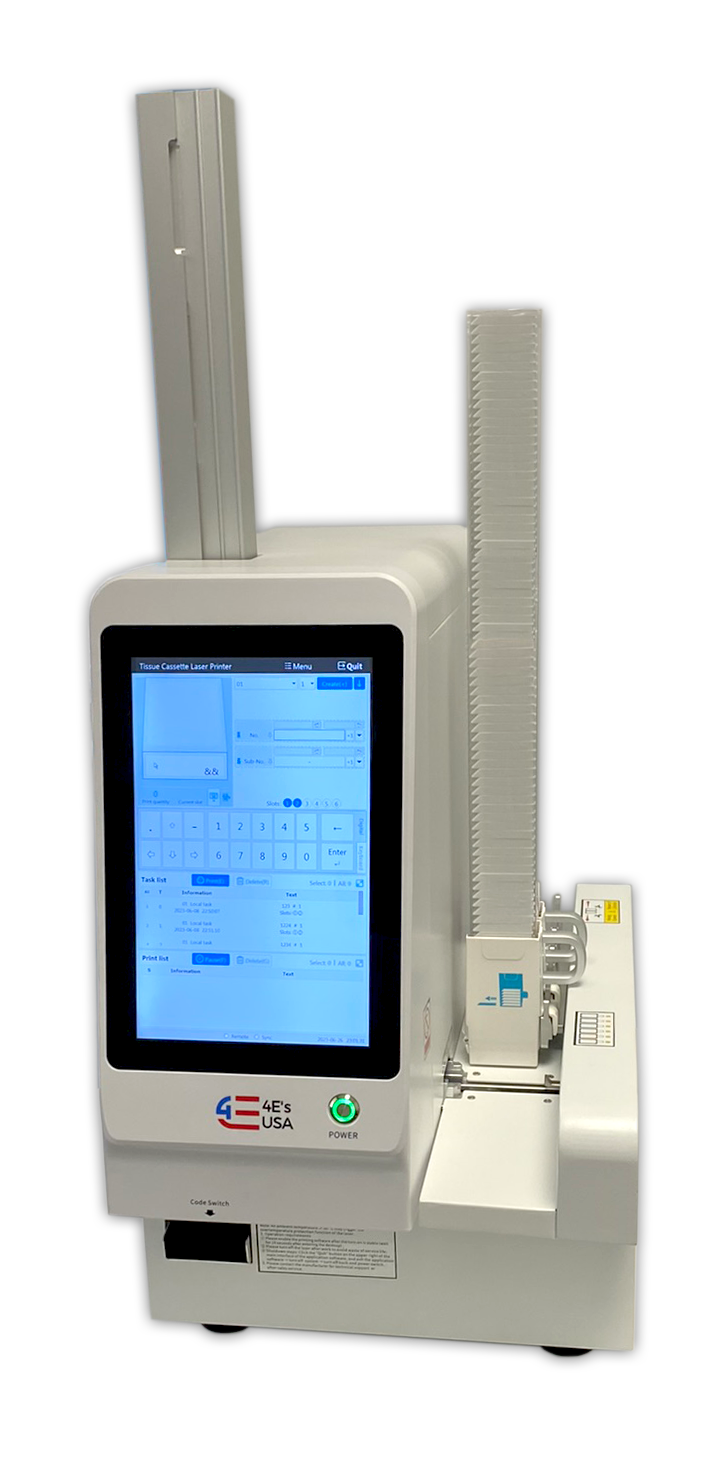

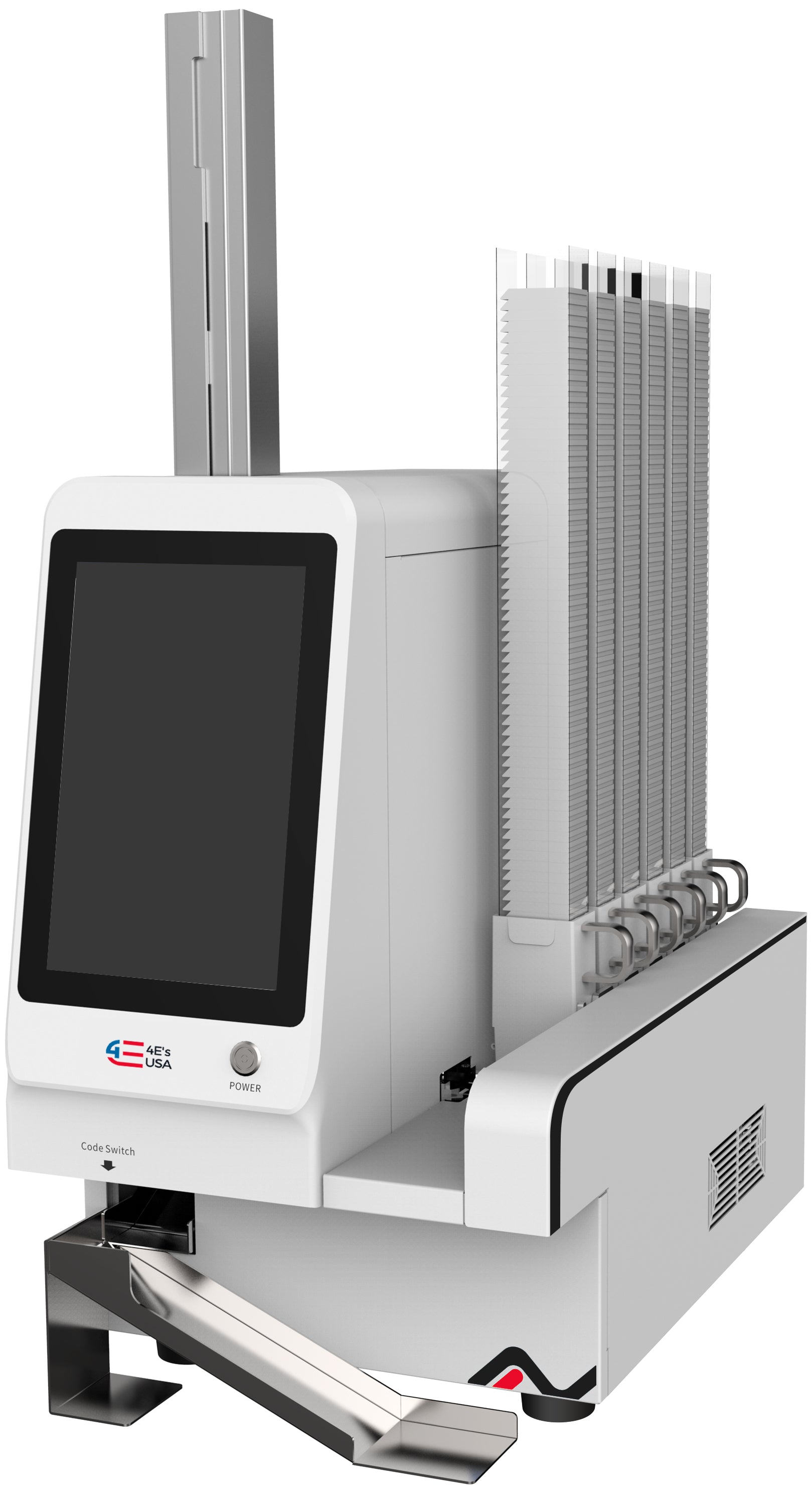

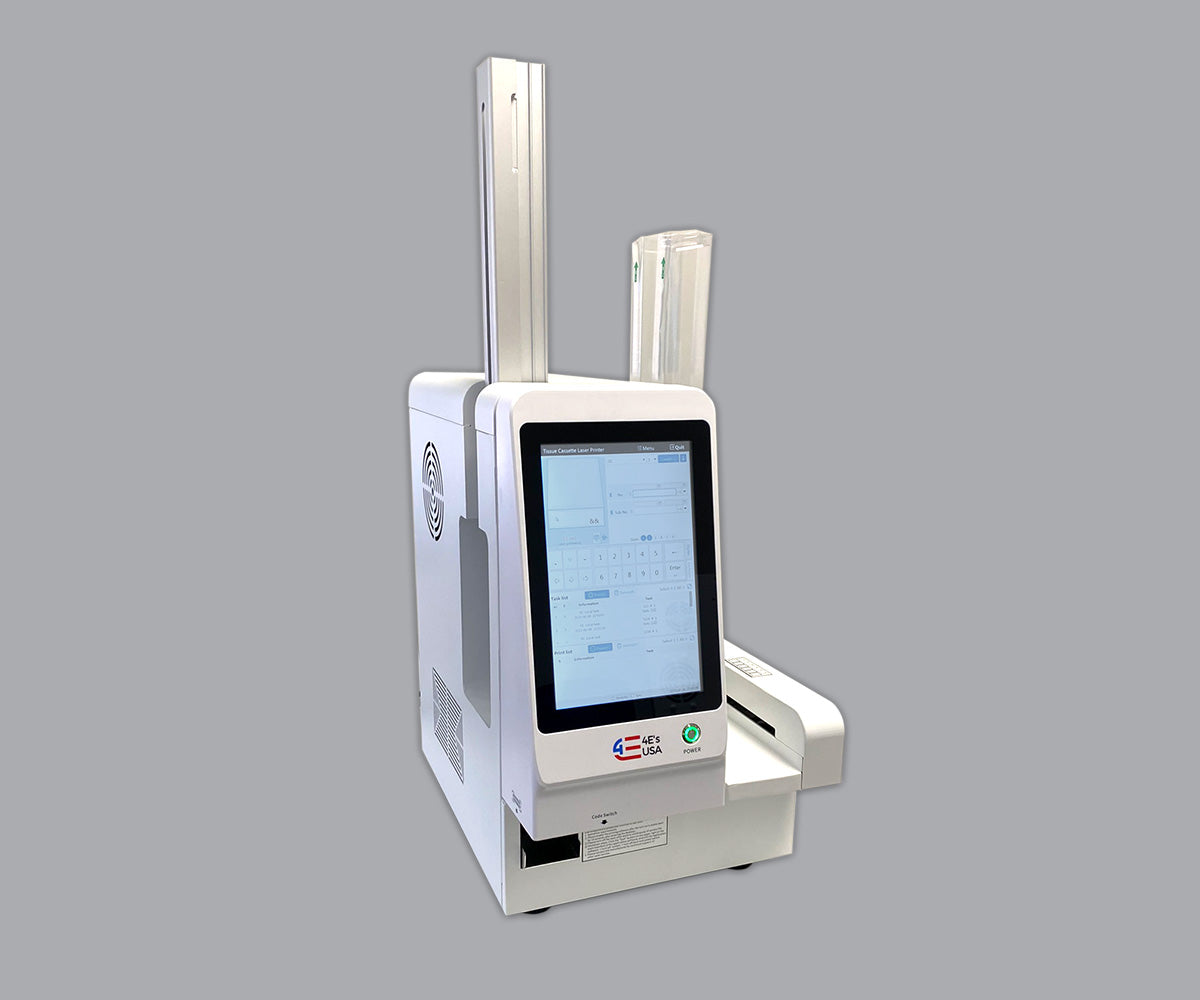

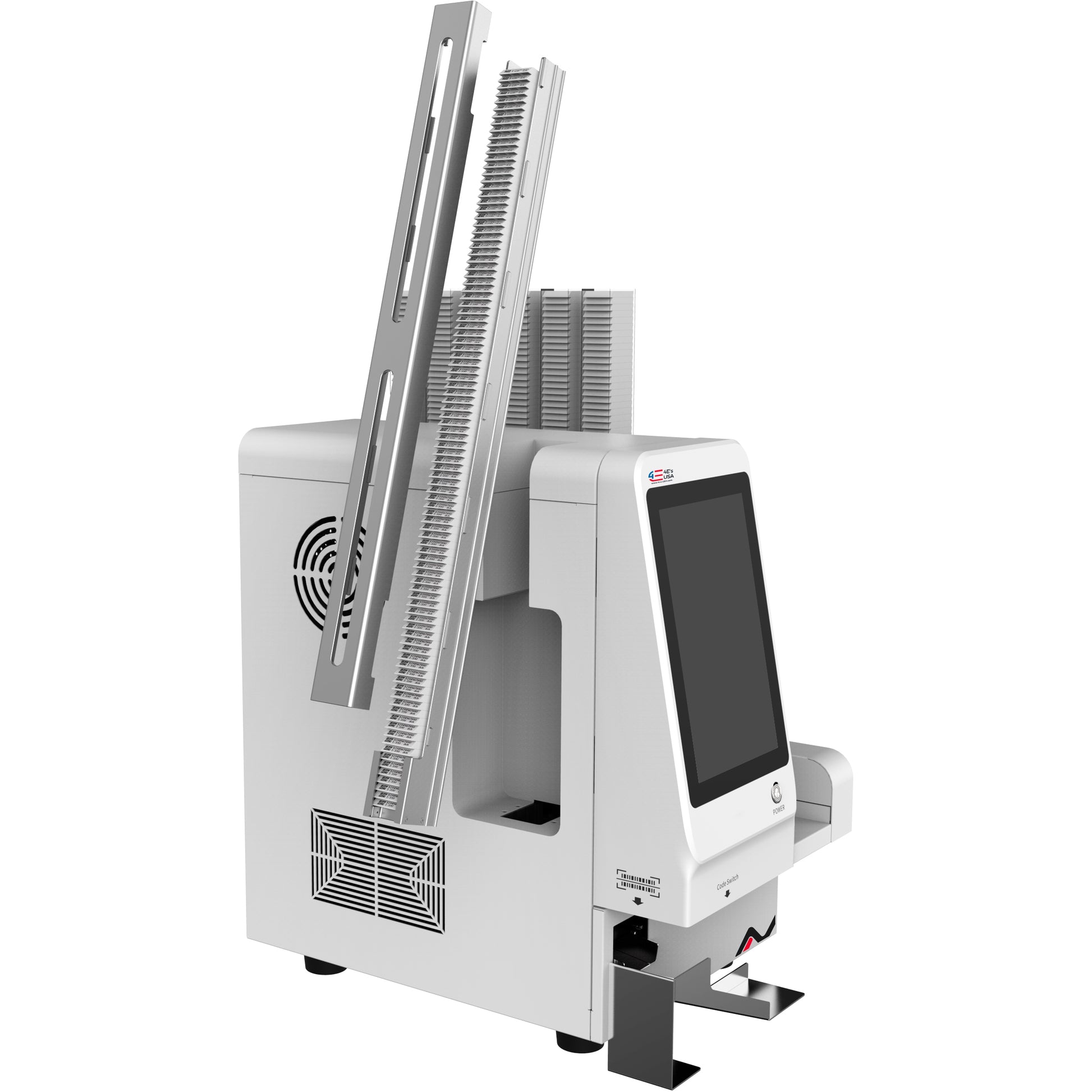

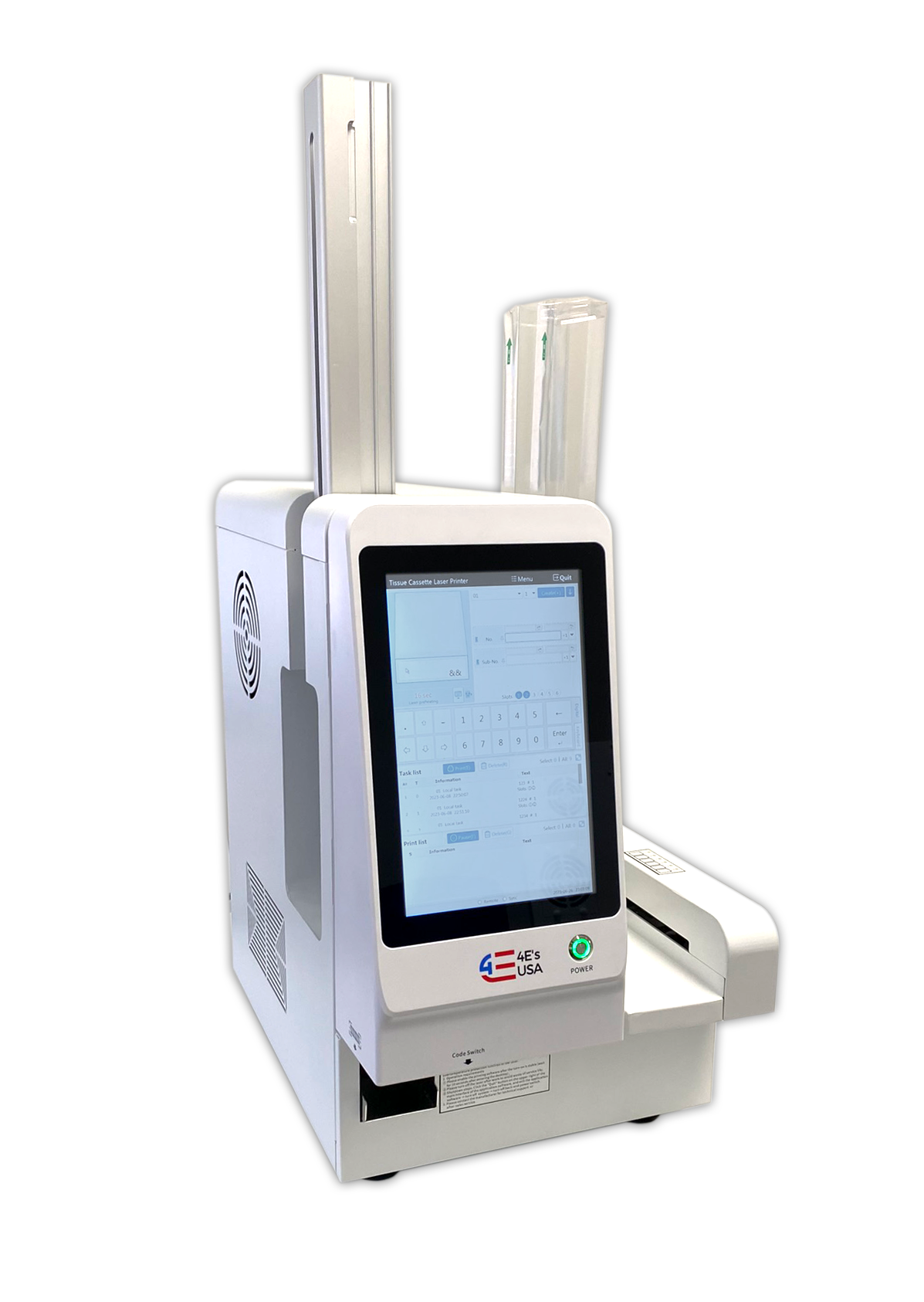

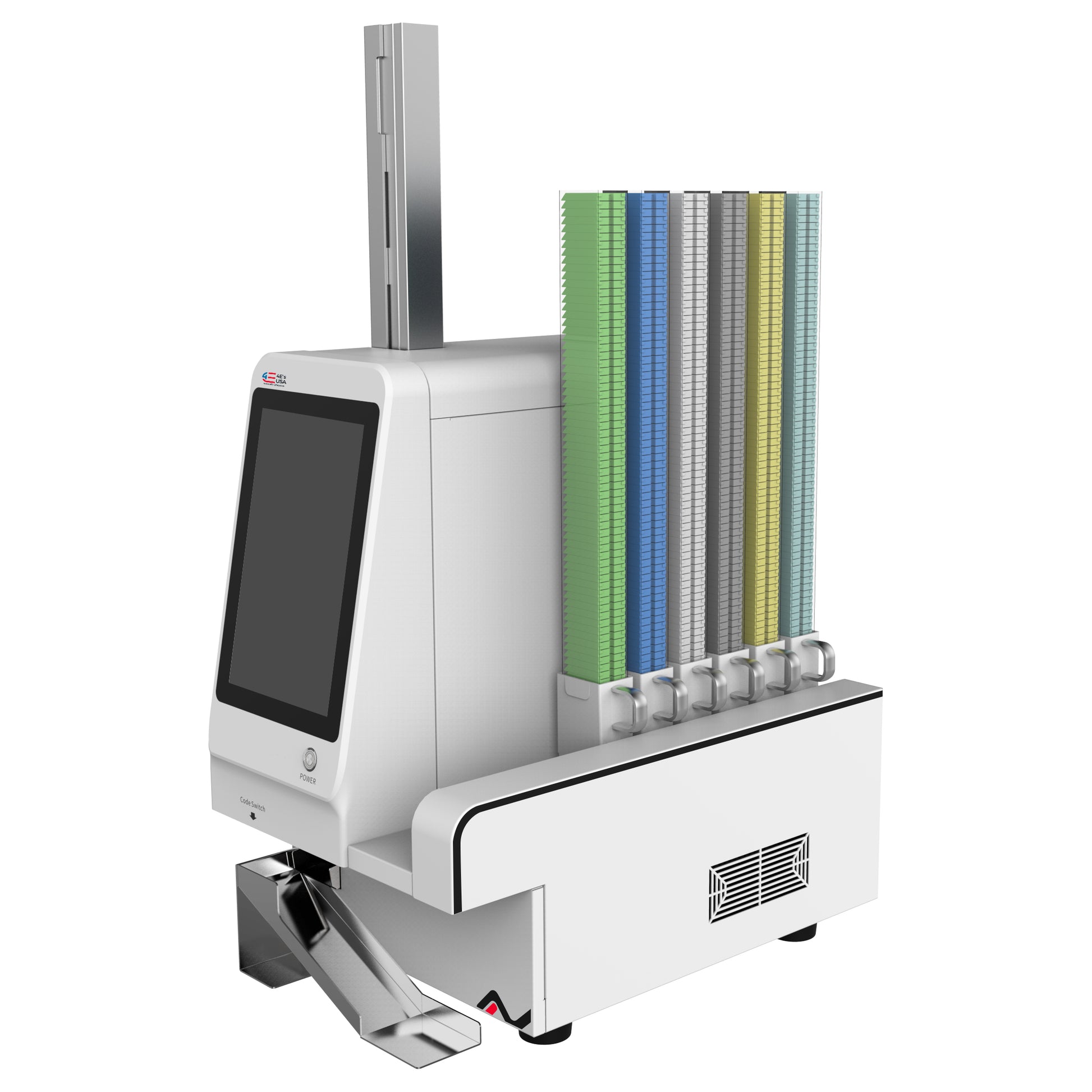

Four Es UV Tissue Cassette Printer
Capacity to Keep Your Workflow Going

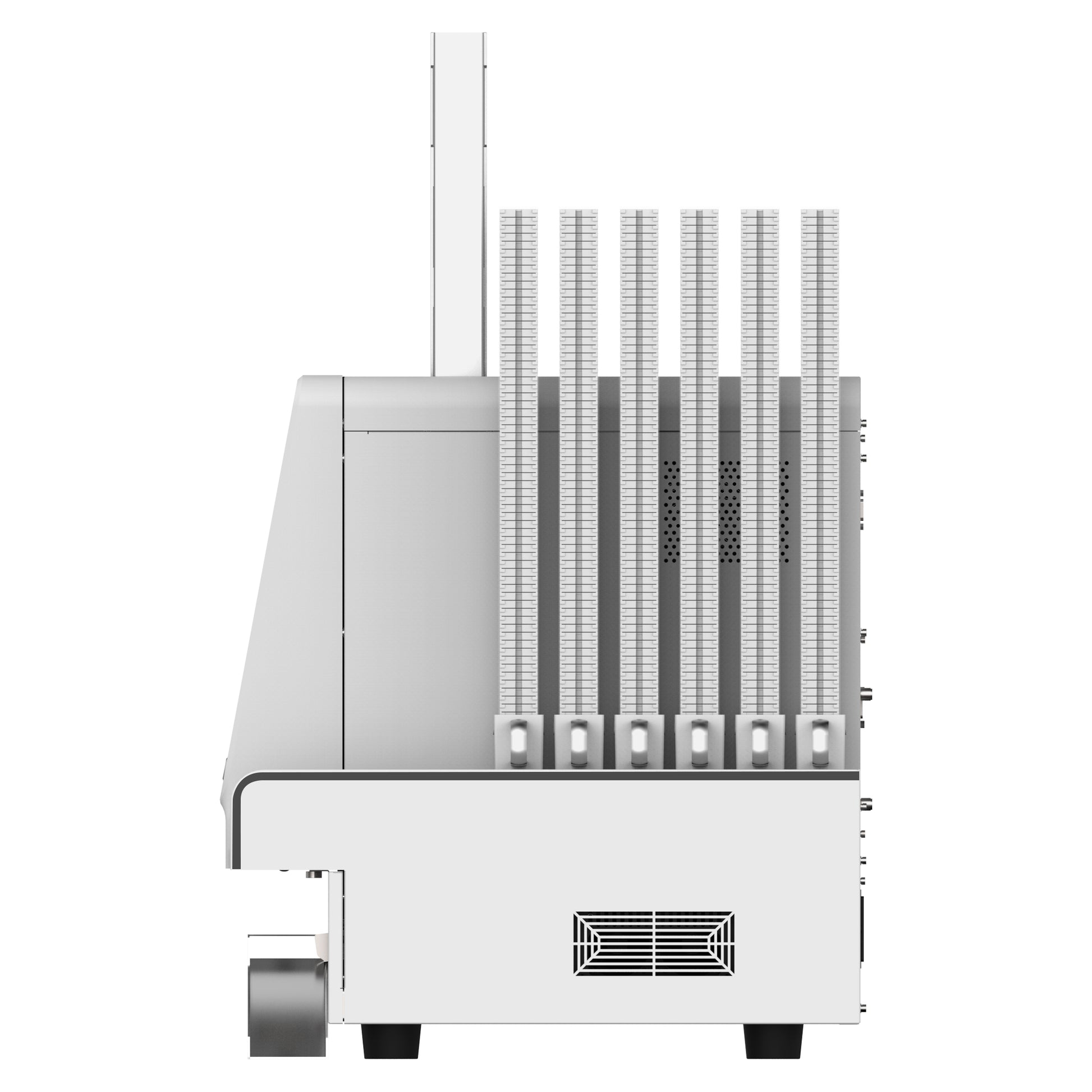

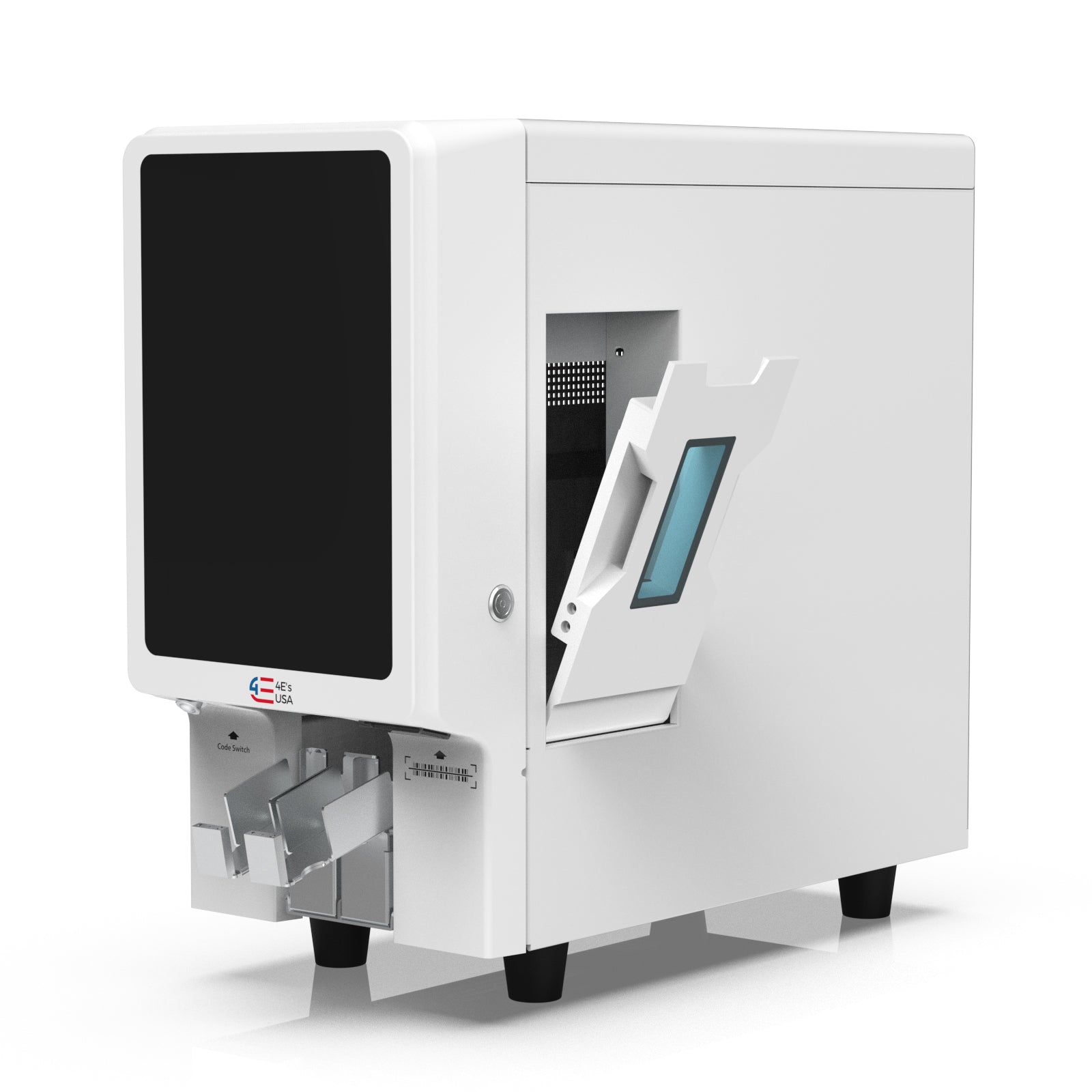

Four E’s USA histology printers are designed for continuous operation with many features specifically for single and bulk operations. The Microscope Slide Printer has a removable slide loading tray for easily switching out slide types. The Tissue Cassette Printer has six removable hoppers for storing cassettes of different color or type. The Slide Printer has two slide output attachments, one for small batch operation and another for bulk printing. The Cassette Printer has a cassette output tray for small batch operations or a detachable output hopper for collecting large print jobs.
Easily Configure Print Templates
The 10” Color interface is easy to use and displays current print jobs and printing tasks. Easily update information using the built-in barcode scanner, LIMS/HIMS system, touchscreen, or connected devices. Custom templates are easy to create using the drag and drop interface. Easily set up sample number with automatic incrementing using the template configurator. Choose from a selection of barcode types, fields, and print styles to suite your lab workflow.
4E’S Vs Other Brands
UV Laser Printing
Under 3 Second Prints
Editable Print Templates
Create New Templates
Removeable Feed Hoppers
10” Color Touch Screent
Small Batch and Bulk Receivers
No Consumables Required
Batch Print Software
Frequently Asked Questions
Everything you need to know about product and billing. Can’t find the answer you are looking for? Please write your question to us at info@4Es-USA.com
Can I feed charged slides and noncharged slides separately?
The Microscope Slide Printer has removable trays for feeding the slides. Up to 100 slides can be stored in a feed tray. Trays can easily be switched to switch the slide type.
Can I select the color of the cassette to print on?
Yes, you can use the 6 hoppers to place different color cassettes to choose from.Yes, you can use the 6 hoppers to place different color cassettes to choose from.
How many slides or cassettes can the printer print?
The laser has a very long life and can print over 3 million slides or cassettes before being replaced.
Can the printer print linear barcodes?
Yes, the printer can print many formats of linear and 2D Barcodes.
Can I print slides and have the slide number printed increase by 1?
The templates can be set to increment fields values as they are printed.
Do the Microscope Slide Printer and the Tissue Cassette Printer Connect?
Yes, these items can work as connected devices or independently.
Is there a warranty on the units?
Each printer has a 2 year all inclusive warranty.
