Mini, High Speed, And Clinical Centrifuges
Couldn't load pickup availability
Designed Specifically for Your Lab

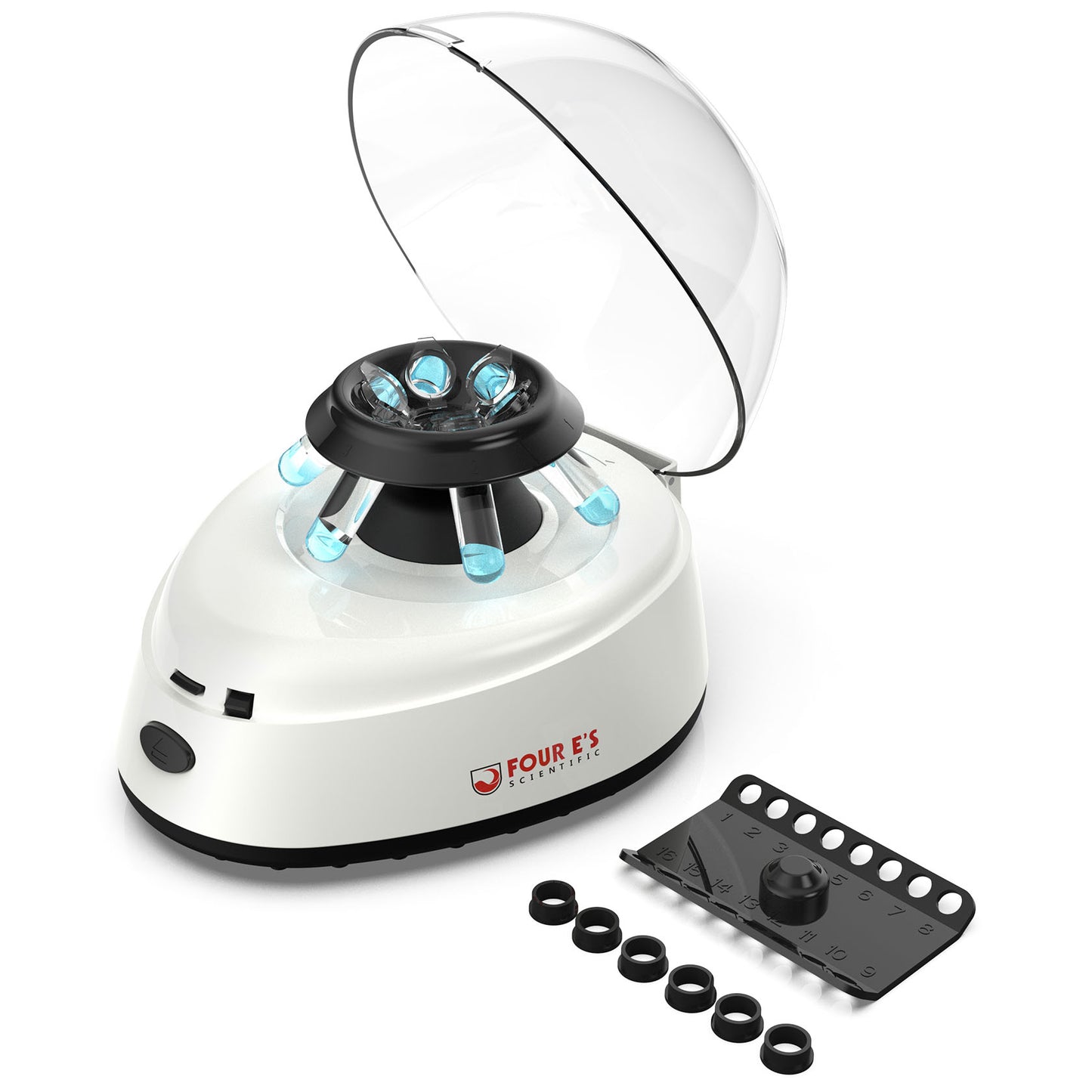

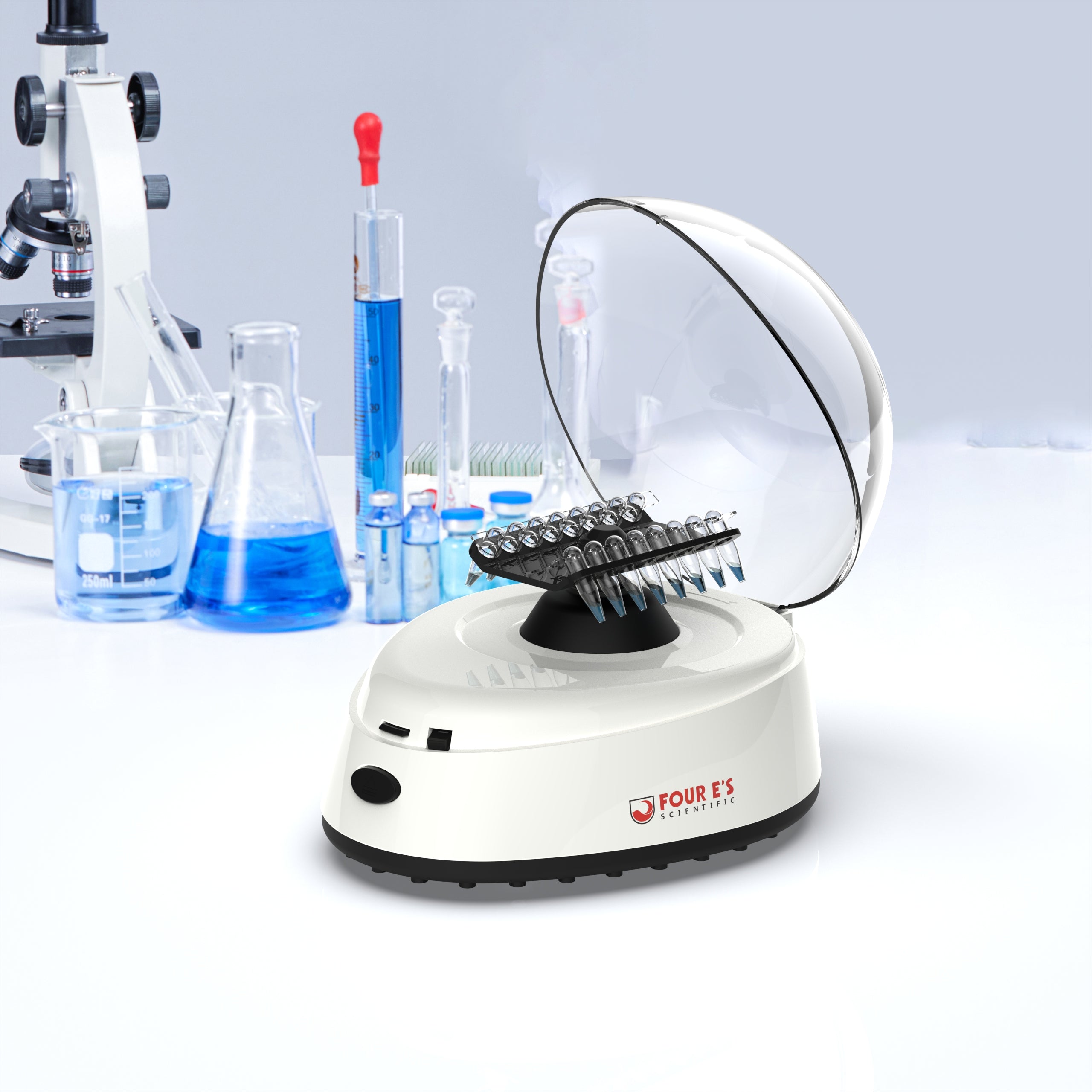

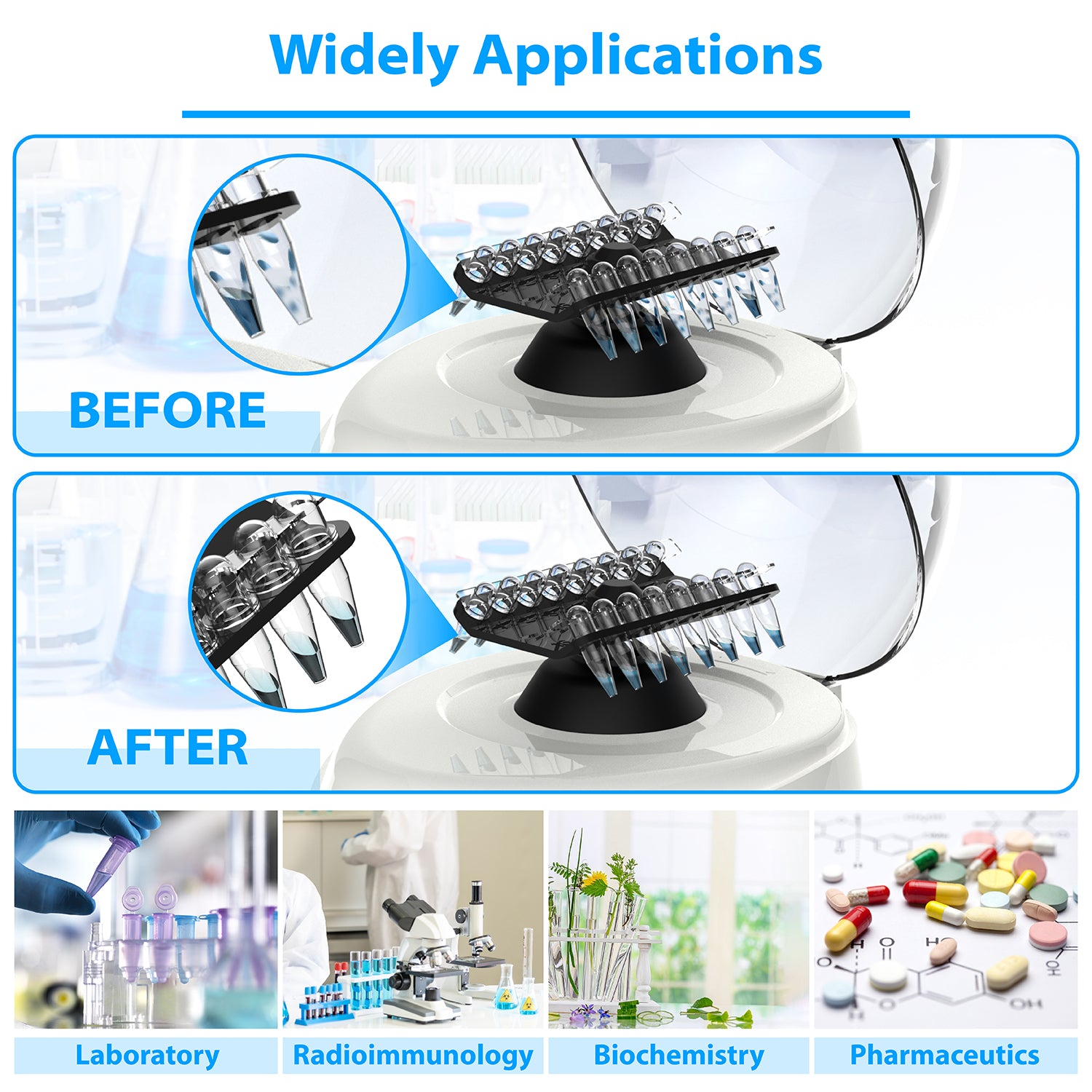

Four E’s takes customer feedback and dozens of engineers to design and build some of the best centrifuges available for research and clinical use. The Mini Centrifuge is perfect for small to medium research labs that need a quiet, fixed speed centrifuge for PCR strips or microcentrifuge tubes. The High Speed Micro Centrifuge has a maximum speed of 15,000 RPM and can support up to 12 microcentrifuge tubes. The Clinical Centrifuge is designed for clinical labs working with larger samples in 5, 7, 10, 15 milliliter tubes. The rotor can support up to 12 tubes depending on the volume.
Quiet
Operation
Modern and Simple
Control Interface
Small Foot
Prints
Multiple Safety
Features
- Specifications
- Features
- Downloads

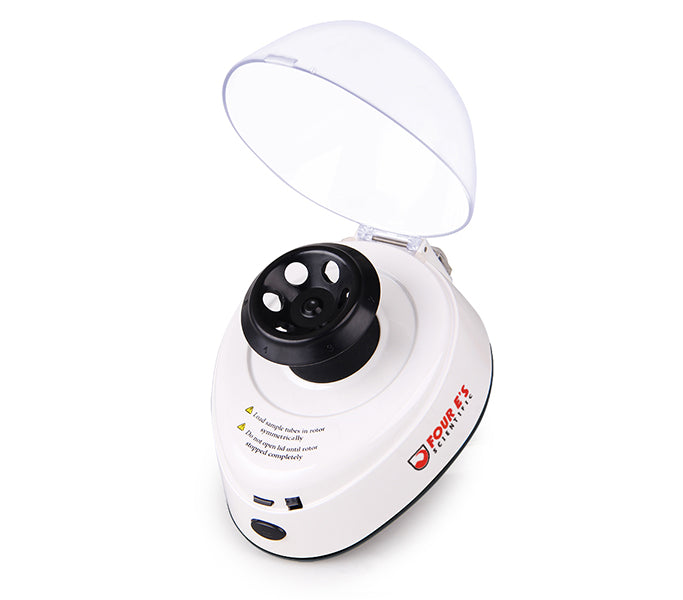

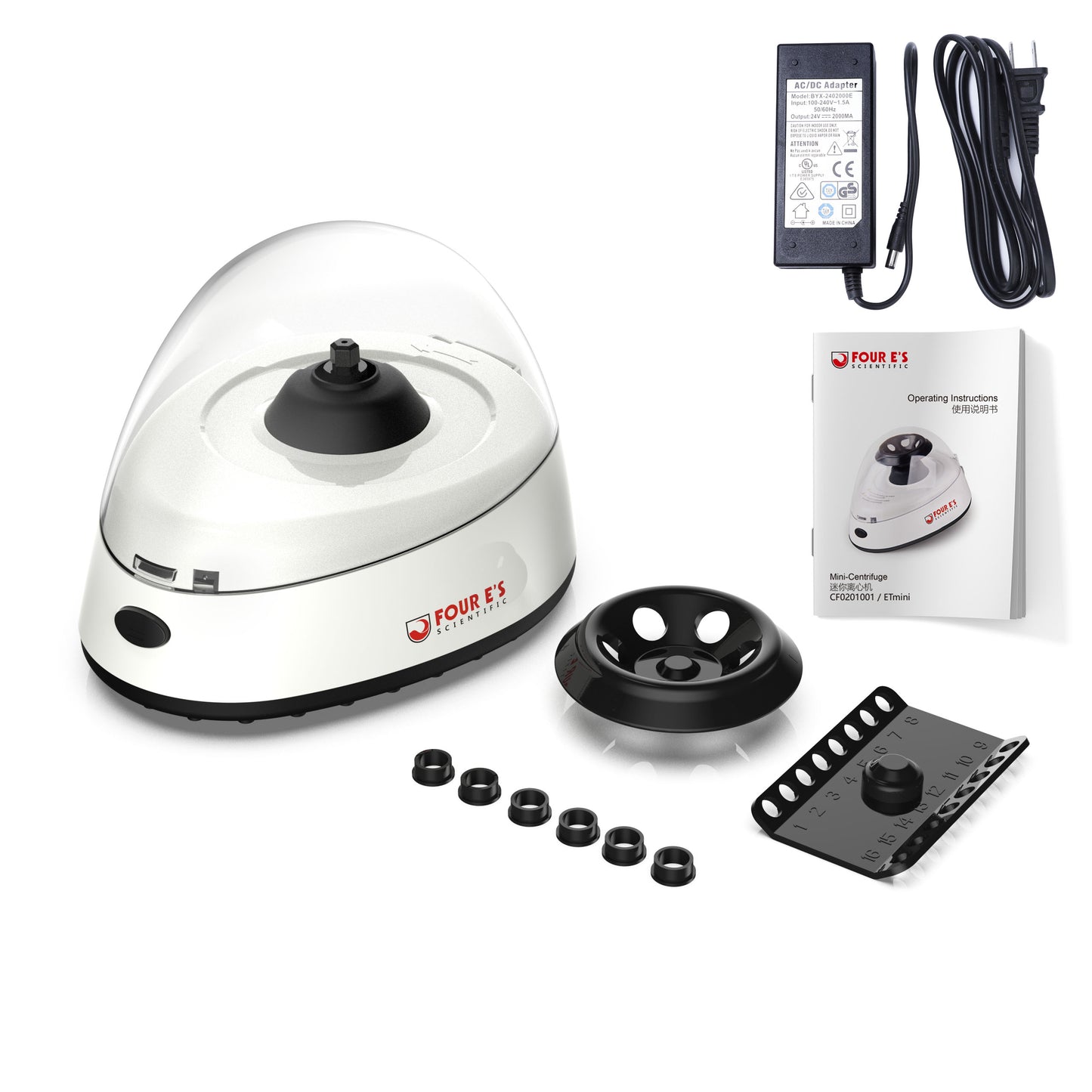

Mini Centrifuge

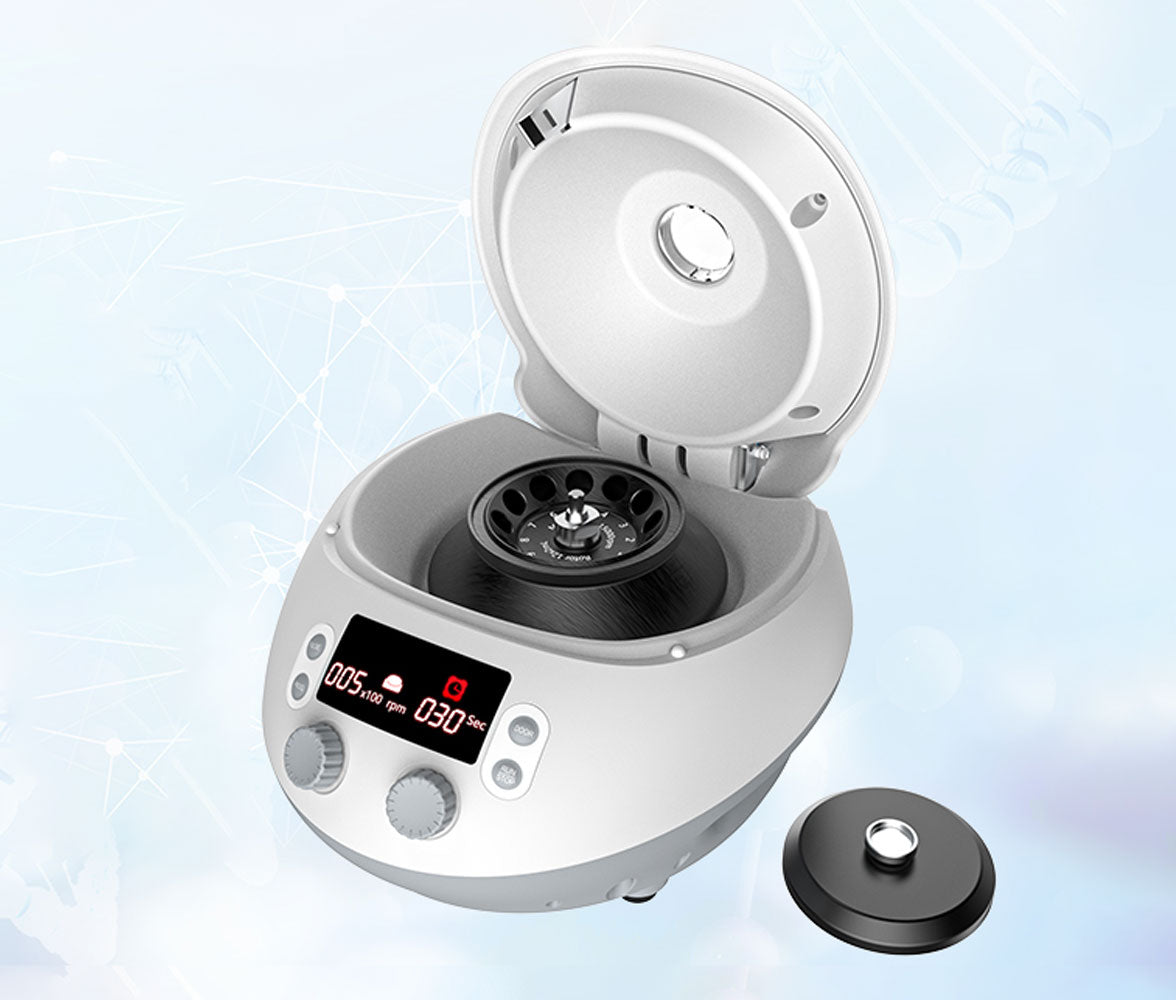

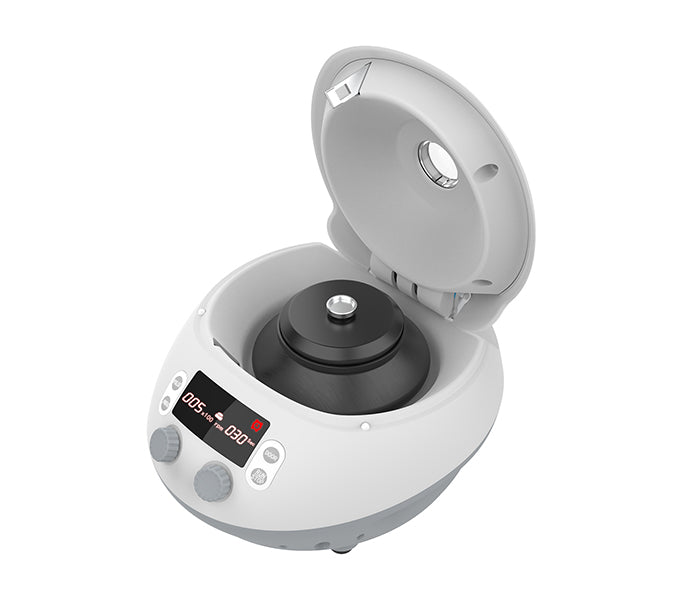

High Speed Centrifuge

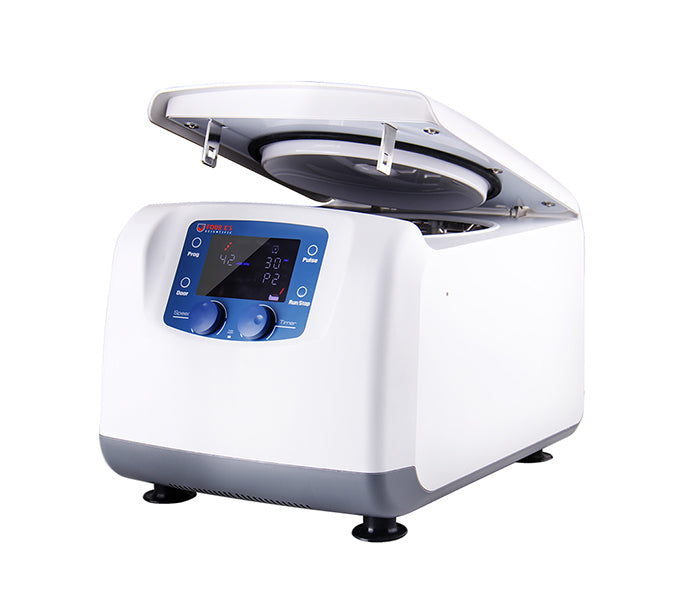

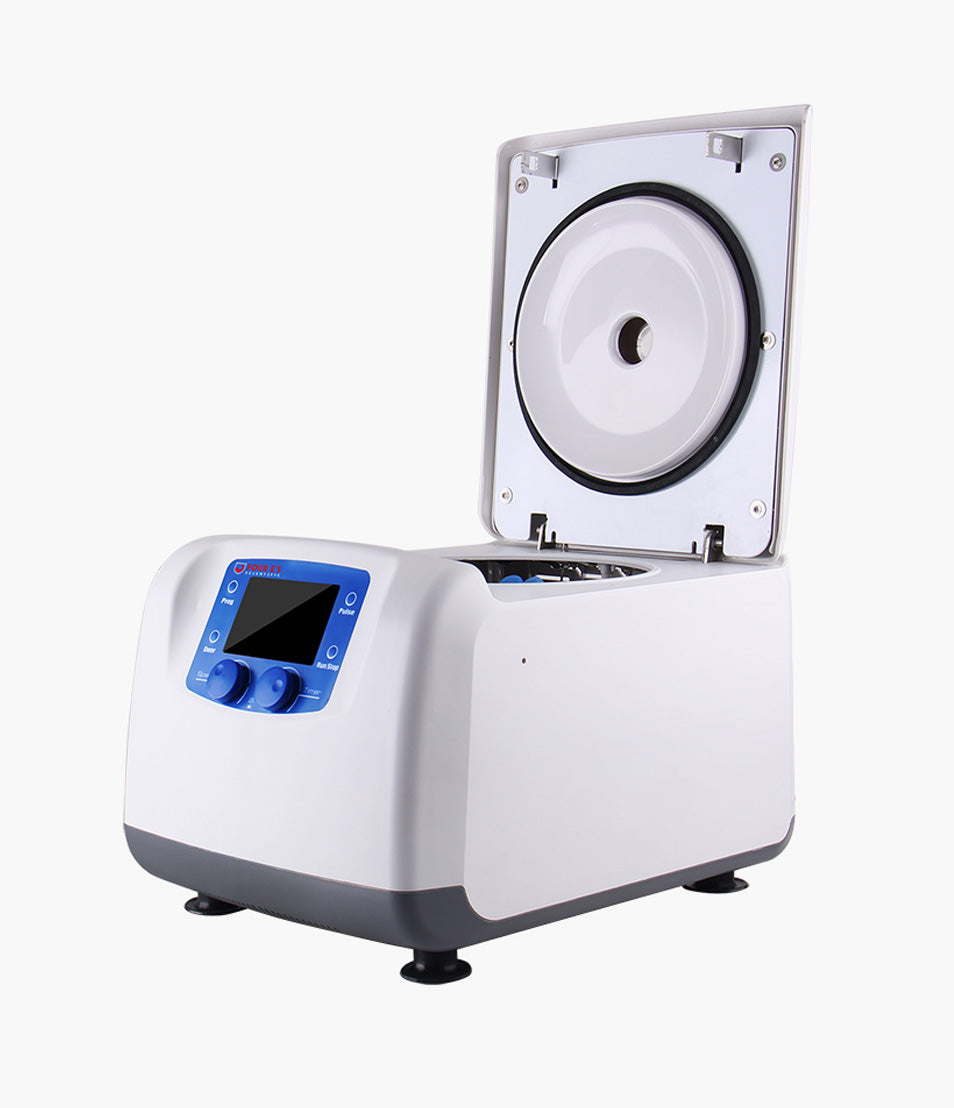

Clinical Centrifuge
| Model Number | CF0201001 | CF0201002 | CF0201003 |
| Speed Range | 5,400 rpm (fixed) | 500 – 15,000 rpm | 300– 4,500 rpm |
| Control Increment | N/A | 100 rpm | 100 rpm |
| Maximum RCF (g force) | 2,000 x g | 15,100x g | 2,940x g |

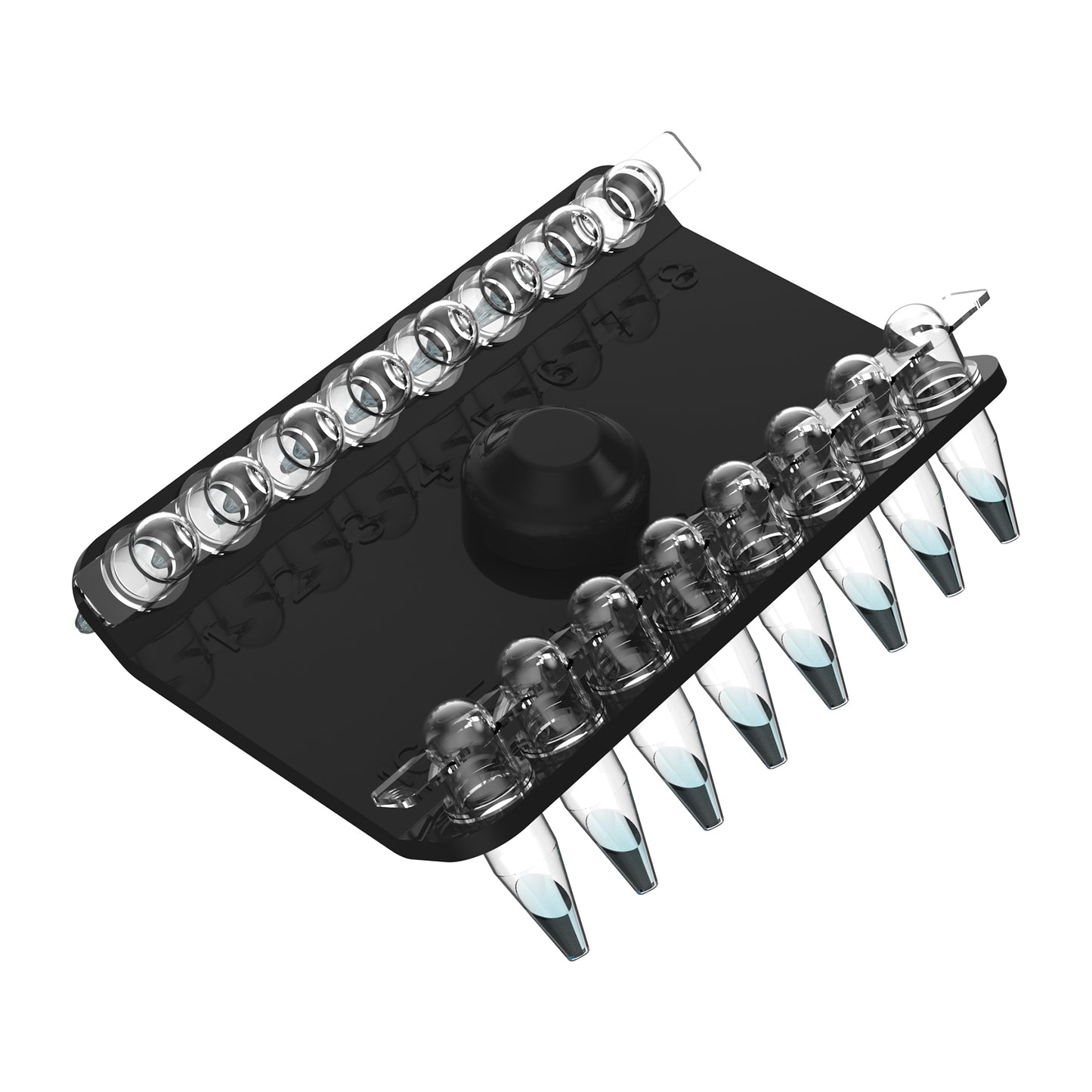

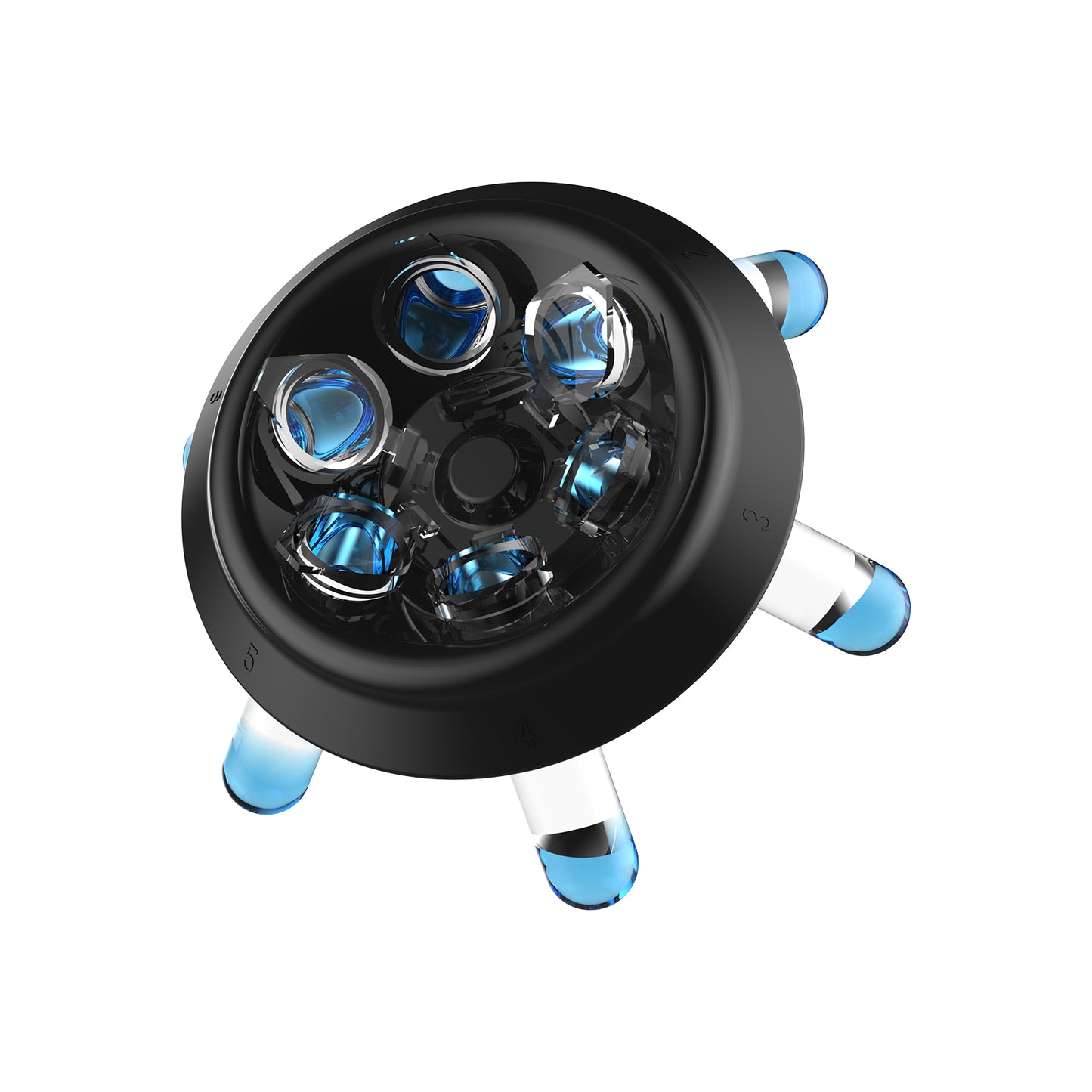

| Rotor Capacity | 0.2/0.5/1.5/2.0mL x 60.2mL x 16 PCR tubes0.2mL x 2 PCR 8 strips | 0.2ml/0.5ml/1.5ml/ 2ml x12 | 10mL/7mL/5mLx12; 15mLx6 |
| Display | N/A | BrightLED with Digital Control Dials | BrightLED with Digital Control Dials |
| Motor Type | DC | Brushless DC | Brushless DC |
| Time Settings | Continuous operation | 30s-99m& Continuous operation | 30s-99m& Continuous operation |
| Power Supply | Input:100-240VAC,50/60HZOutput: 24VDC, 2A | Single-phase,AC110-240V,50Hz/60Hz, 3A | Single-phase,AC110-240V, 50Hz/60Hz, 2.5A |
| Dimensions | 175 x 140 | 256 x 225 x 155mm | 460 x 310 x 270mm |
Centrifuge Brochure
Safety Is Paramount

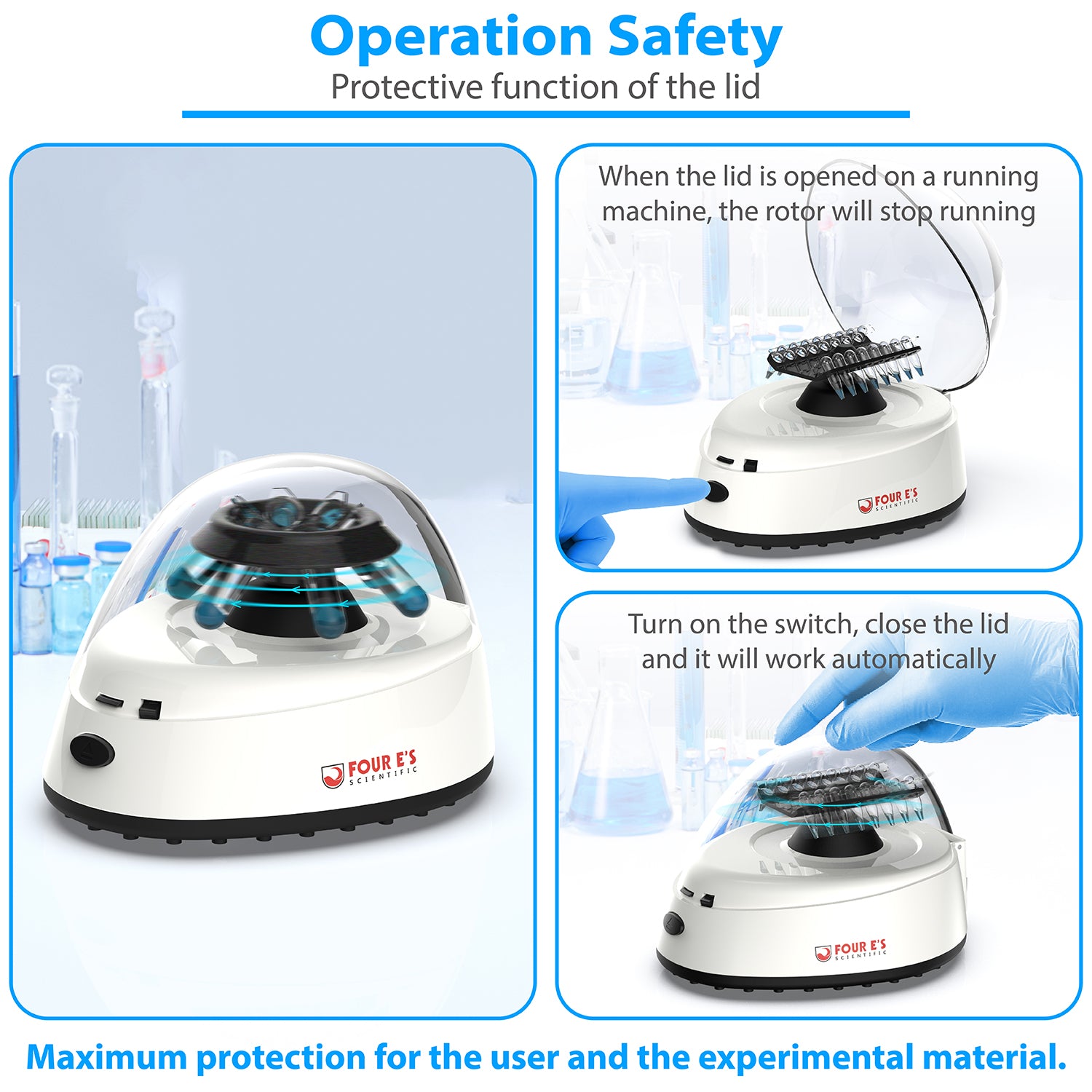

With high-speed separation equipment there is no reason to compromise on the design, materials or built in safety features. Many centrifuge suppliers cut corners to drive the price down but Four E’s focuses on finding ways to improve the design while improving the cost. Our centrifuges have high quality enclosures, balancing and braking features, door interlocks, explosion proof designs, and self-diagnostic capabilities.
You are in Control

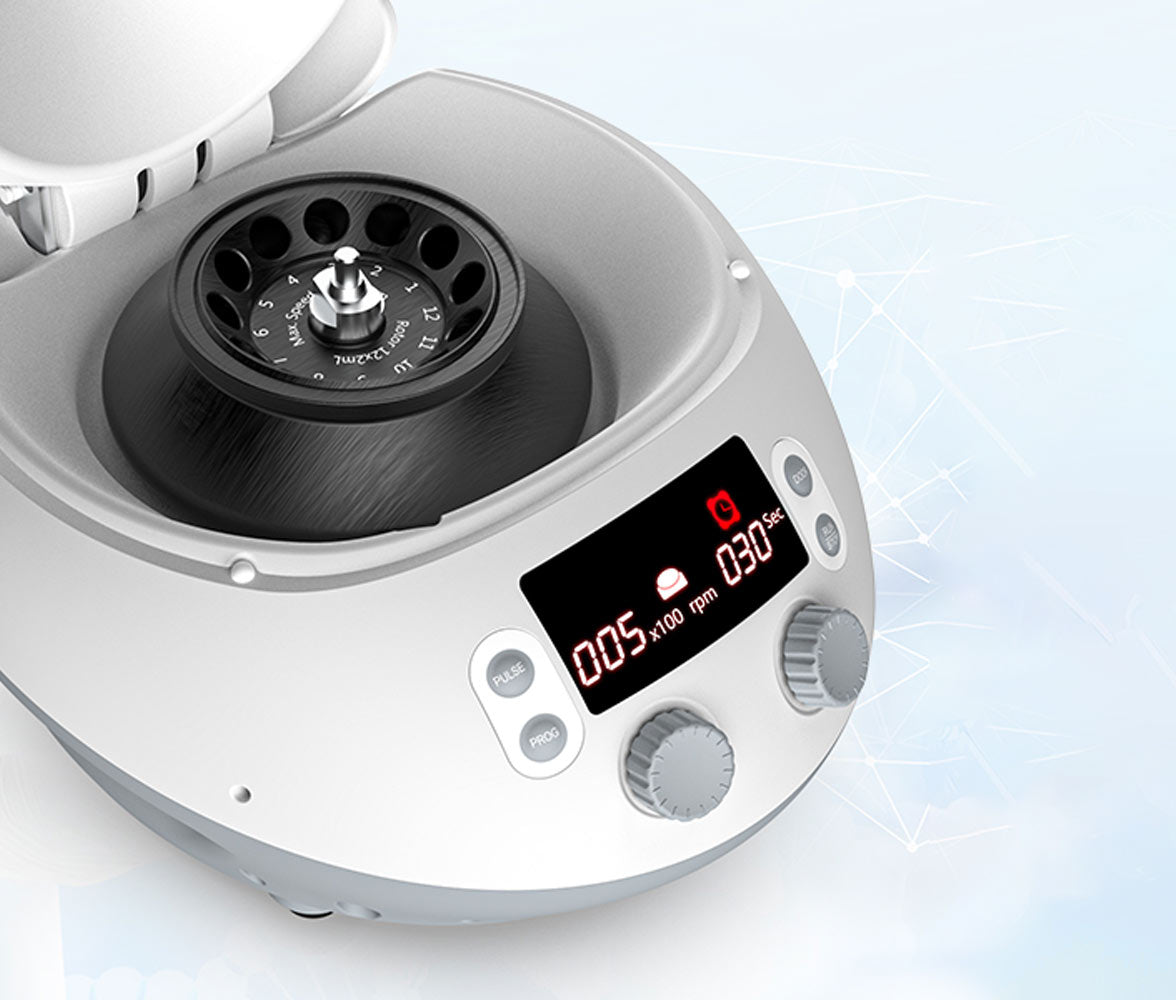

Four E’s spends a lot of time design our control interface and electronics. The High Speed Micro Centrifuge and the Clinical Centrifuge both feature digital control nobs, and color LED displays that are bright and easy to read from a distance. They also have tactile buttons for repetitive functions such as door operation and pulse operation. A well designed interface doesn’t need a product manual but we will include a manual anyway.
4E’S Vs Other Brands
4E’S
Brand X
Brand Y
Multiple Safety Features
Rotor Options
Affordable Price Point
LED Controls
Fast Acceleration and Deceleration Time
Small Foot Print
Brushless DC Motor
