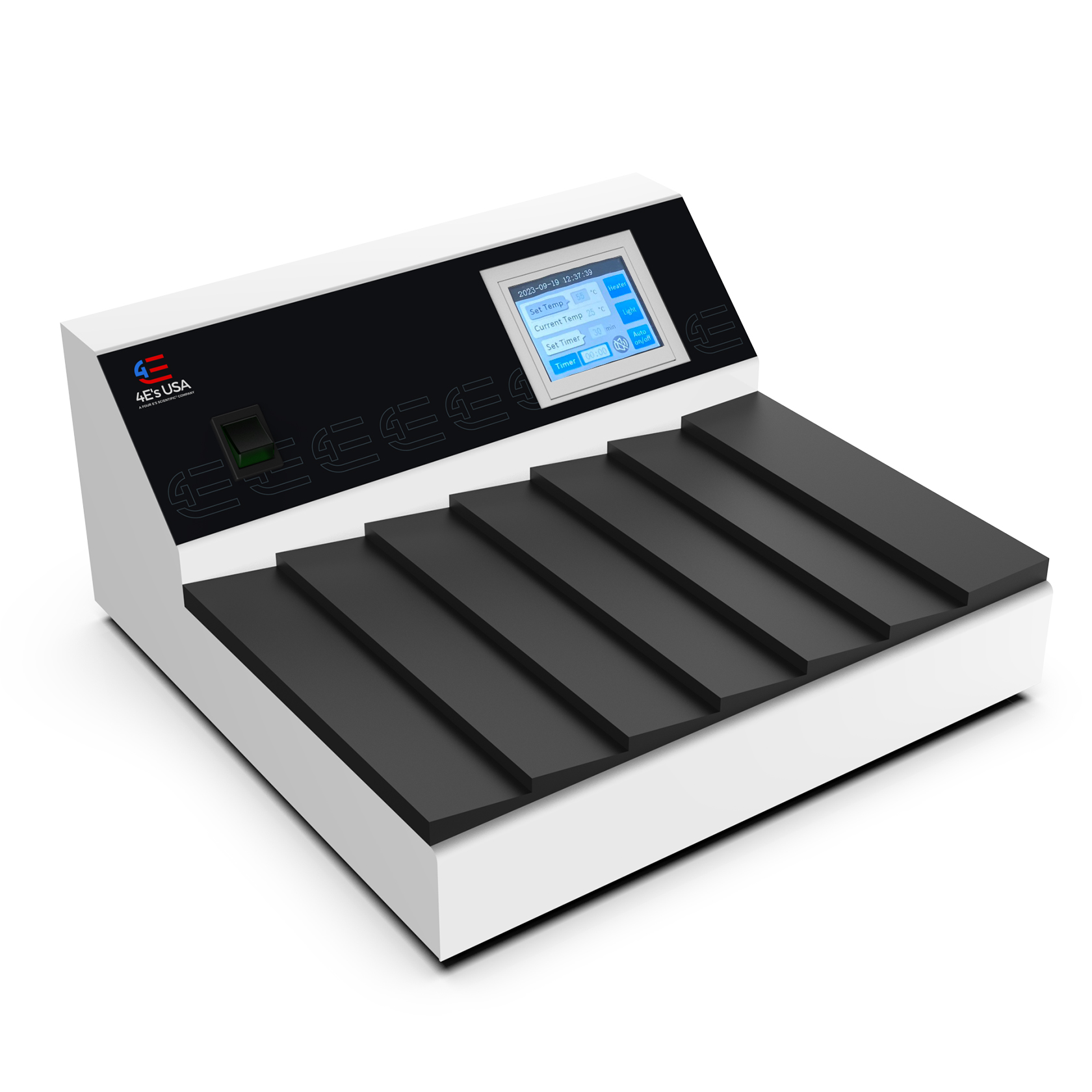

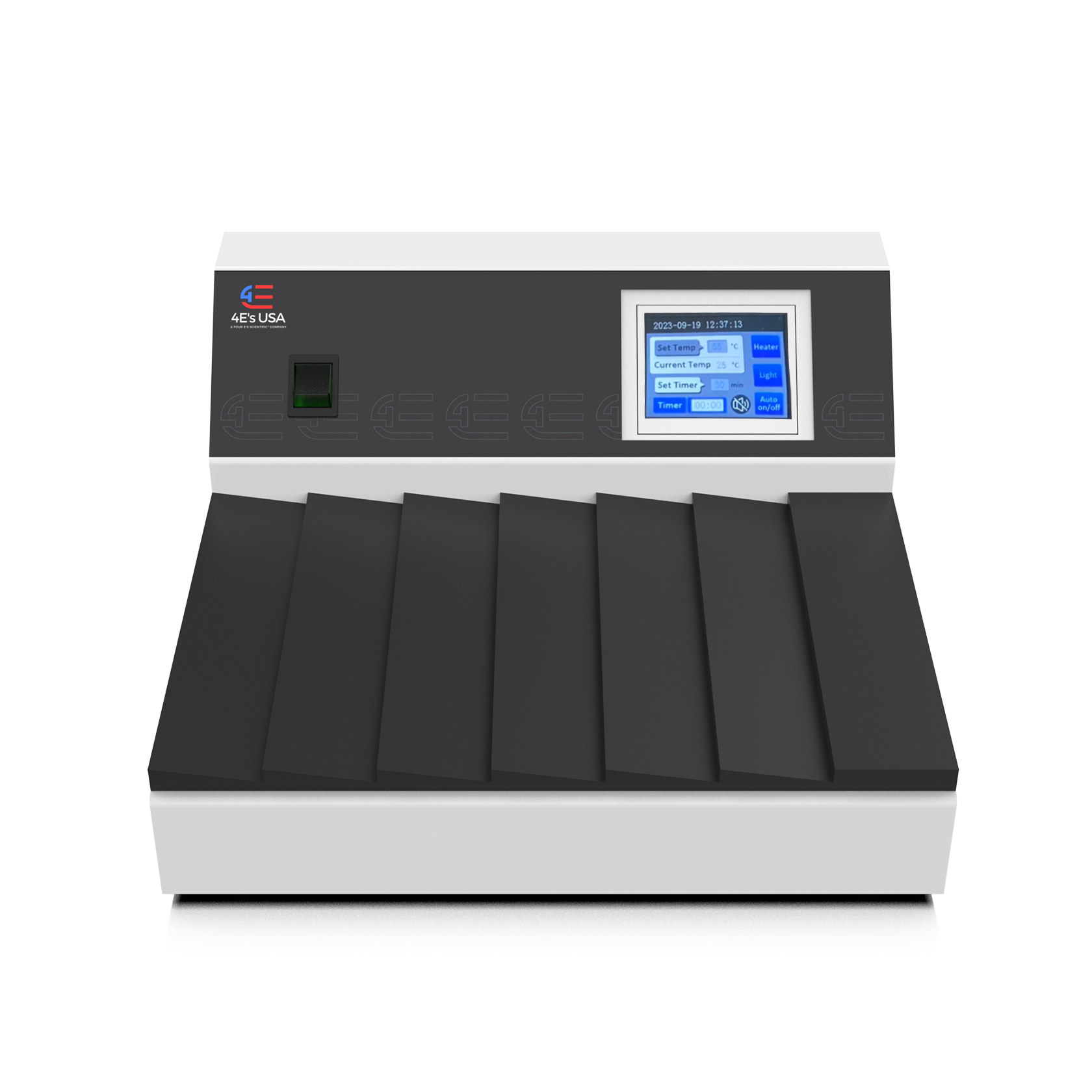

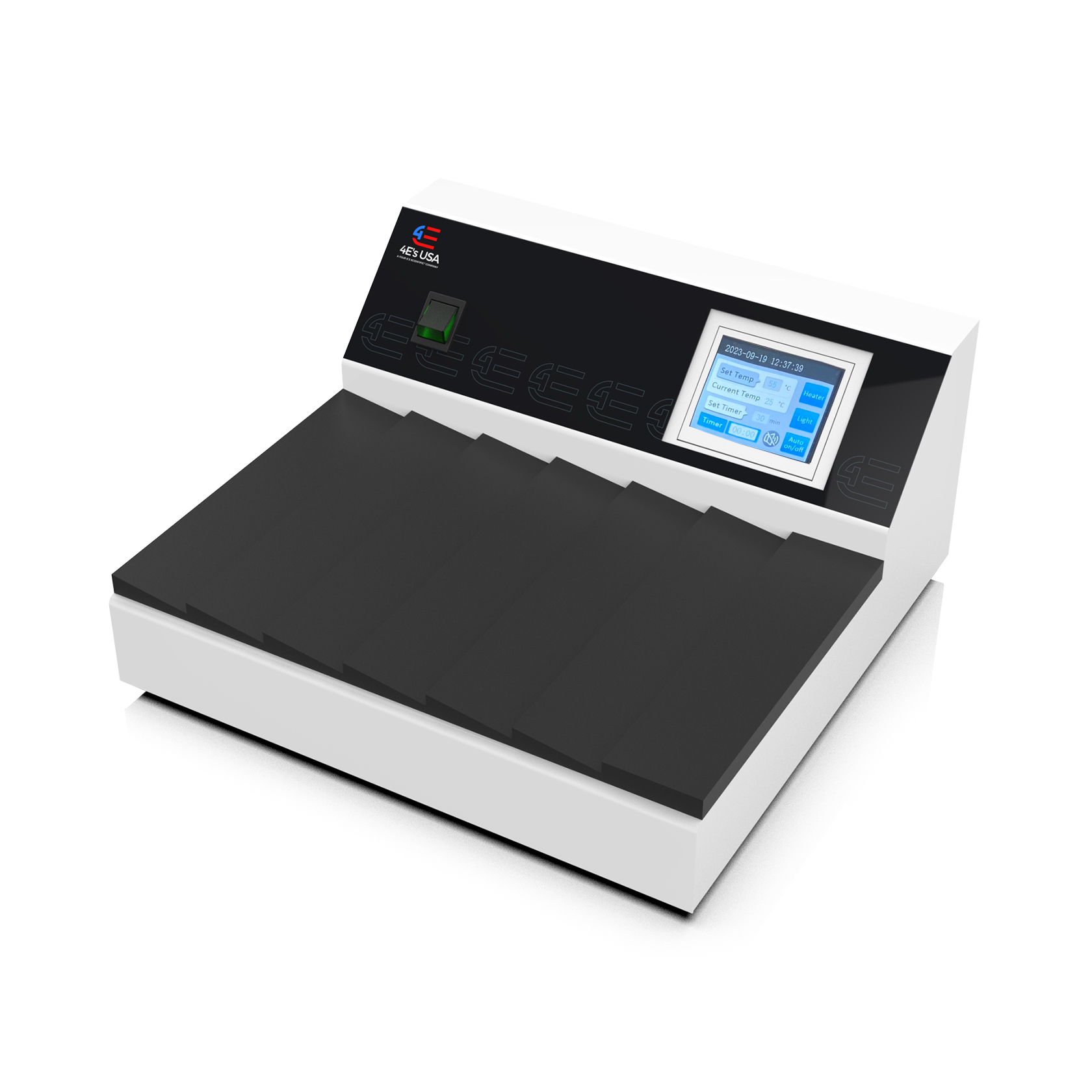

Slide Dryer
In Stock: 3
Couldn't load pickup availability
Deep Dish Isn't Just for Pizza
When Four E's Designs equipment we start with our customers and work backwards. One of the biggest complaints about lighted tissue flotation baths is the depth of the glass dish. Customers are constantly filling the dish or hitting the slides on the bottom of the glass basin. Four E's, rather than selecting a standard off the shelf glass dish, designed a dish that was much deeper than existing tissue flotation baths. We then surrounded this dish with high end features and components and provide the equipment at an affordable price.
Rapid Heat Up Time
No Constant Filling
Advanced Color Touchscreen
Useful Settings and Functions
-
- Specifications
-
- Features
-
- Downloads
| Type | Tissue Flotation Bath |
| Model | TFB200101 |
| Temperature Range | 0-100°C (1°C increment) |
| Control | 5" Color Touch Screen |
| Slide Placement Area | Room for 8+ Slides |
| Glass Basin Dimensions | 210mm x 168mm x 55mm |
| Unit Dimensions | 327mm x 340mm x 166mm |
| Temperature Sensor | Internal |
| Control Functions | Light / Timer / Auto ON&OFF / Light / Heater / Alarm |
| Electrical | AC120V/60Hz | 200W |
| Heating Time | 20 minutes to heat to 54°C |
| Temperature Accuracy | +/- 1°C |
| Relative Humidity | <80% |
| Suitable Ambient Temperature | 5-30°C |
| Light Color | White |
| Materials of Construction | Epoxy Painted Steel with PTFE coated Slide Drying Area |
Features
-
●
High-Definition touch screen and user-friendly interface for intuitive operation
-
●
Microprocessor Controlled device with precise temperature performance
-
●
Extra deep glass dish for ease of collection sectioned samples
-
●
Nonvolatile memory that retains setpoints and settings
-
●
No removable temperature sensor for extra sample processing area
-
●
Advanced safety over-temperature protection that shuts of the device
-
●
Easily build and configure new print templates to suit your laboratorysample needs
-
●
Convenient slide placement area
Four Es UV Microscope Slide Printer
Four Es UV Tissue Cassette Printer
Easy to Use
Four E's designs equipment that is easy to use. Our goal is build user friendly equipment that it is so easy to use it does not need a manual. This tissue flotation bath has simple controls and useful features. The Auto ON / OFF feature will allow for the unit to automatically warm up so no time is lost waiting for the device to reach temperature. The touch screen also has a built in timer, and large buttons for the light and heater control.
Accurate Temperature for Pristine Slides
Heating equipment is Four E's forte. This equipment was designed with top-of-the-line temperature sensor that does not need to be submerged into the bath, allowing for more room to process FFPE tissue samples. The finely tuned heating system allows for precise control of the water temperature and tissue sections producing wrinkle free microscope slides.
4E’S Vs Other Brands
4E’S
Brand X
Brand Y
Quiet Fan-less Design
Quick Heat Up
Embedded Temperature Probe
Ultra Deep Dish
Touch Screen Interface
Auto ON/OFF
Large Microscope Slide Area
Two Year Warranty
